LOW CAPACITANCE SHIELDED WIRE

GROUND

SCREW

EQ OR MIXER

3 – PYLE PRO PT-1201X/1601X/2001X/4001X Amplifier Owner’s Manual

INSTALLATION GUIDELINES
Connecting the GND (GROUND) screw terminal Connecting

a mixer or preamplifier may cause excessive noise or hum

in the amplifier output. To prevent this, connect one end

of a low-capacitance shield wire to the amplifier's ground

screw (on the rear panel). Then connect the other end of

this wire to the ground terminal on the mixer or preamplifier

enclosure.

PREAMP OR MIXER

LOW CAPACITANCE SHIELD WIRE

GROUND SCREW

Input connections
These amplifiers accept a board range of input sources,

including Compact Disc (CD,DVD) players; Cassette, Reel-

to-Reel or other tape players; Radio Tuners; Equalizers;

Signal Processors.

Connecting a CD, DVD, tape player or tuner
In a normal installation, one would use the RCA JACKS for

connecting a CD player, DVD player,tape player or tuner.

Connecting an equalizer or external signal processor
Connect the processor's OUT to the amplifier's IN connector.

PREAMP OR MIXER

LOW CAPACITANCE SHIELD WIRE

GROUND SCREW

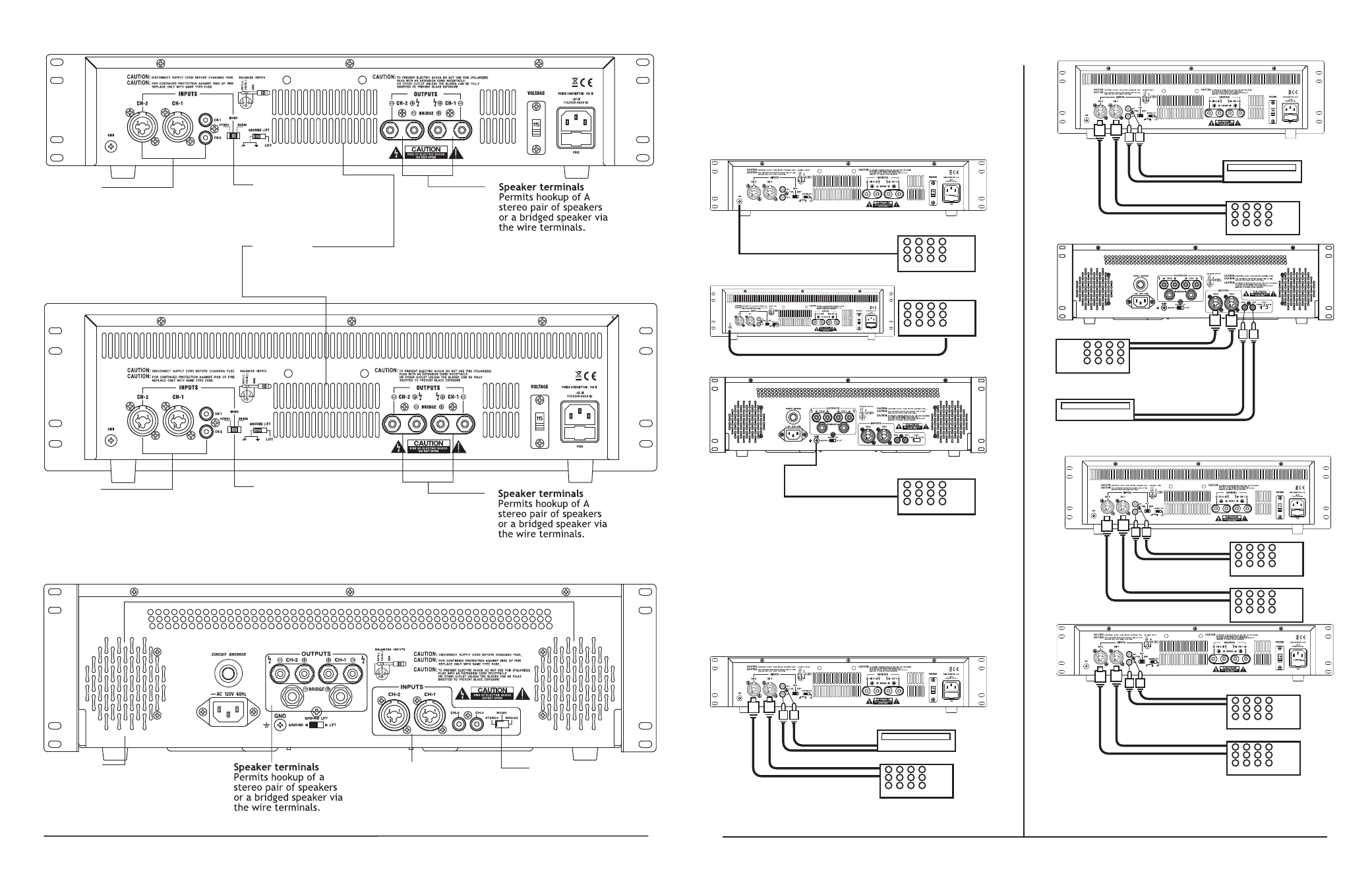

REAR PANEL, PT-1201X

Fan Cooling

Cooling system is automatically activated whenever amplifier is turned on.

This forced air cooling system rapidly exhausts interior heat, reducing operating

temperature and aiding performance.

Stereo/Mono Switch

Lets you select conventional

stereo operation with a stereo

input signal or bridged/

mono input mode.

Input Jacks

Let you connect a variety of audio

input sources via the balanced

(XLR/6.35mm phone jack

combinations) or unbalanced (RCA)

inputs.

REAR PANEL, PT-1601X/2001X

Stereo/Mono Switch

Lets you select conventional

stereo operation with a stereo

input signal or bridged/

mono input mode.

Input Jacks

Let you connect a variety of audio

input sources via the balanced

(XLR/6.35mm phone jack

combinations) or unbalanced (RCA)

inputs.

PYLE PRO PT-1201X/1601X/2001X/4001X Amplifier Owner’s Manual – 2

REAR PANEL, PT-4001X

Fan Cooling

Cooling system is automatically activated

whenever amplifier is turned on. This forced

air cooling system rapidly exhausts interior

heat, reducing operating temperature and

aiding performance.

Stereo/Mono Switch

Lets you select conventional

stereo operation with a stereo

input signal or bridged/

mono input mode.

Input Jacks

Let you connect a variety of audio

input sources via the balanced

(XLR/6.35mm phone jack

combinations) or unbalanced (RCA)

inputs.

CD PLAYER, DVD , TAPE PLAYER

OR TUNER

use RCA jacks

PREAMP OR MIXER

use XLR/6.35 mm

combo jacks

EQ OR MIXER

CD PLAYER, DVD , TAPE PLAYER

OR TUNER

EQ OR MIXER

use RCA jacks

use XLR/6.35 mm

combo jacks

EQ OR MIXER

EQ OR MIXER

use RCA jacks

use RCA jacks

use XLR/6.35 mm

combo jacks

EQ OR MIXER

CD PLAYER, DVD , TAPE PLAYER

OR TUNER

use RCA jacks

use XLR/6.35 mm

combo jacks

EQ OR MIXER

use XLR/6.35 mm

combo jacks
