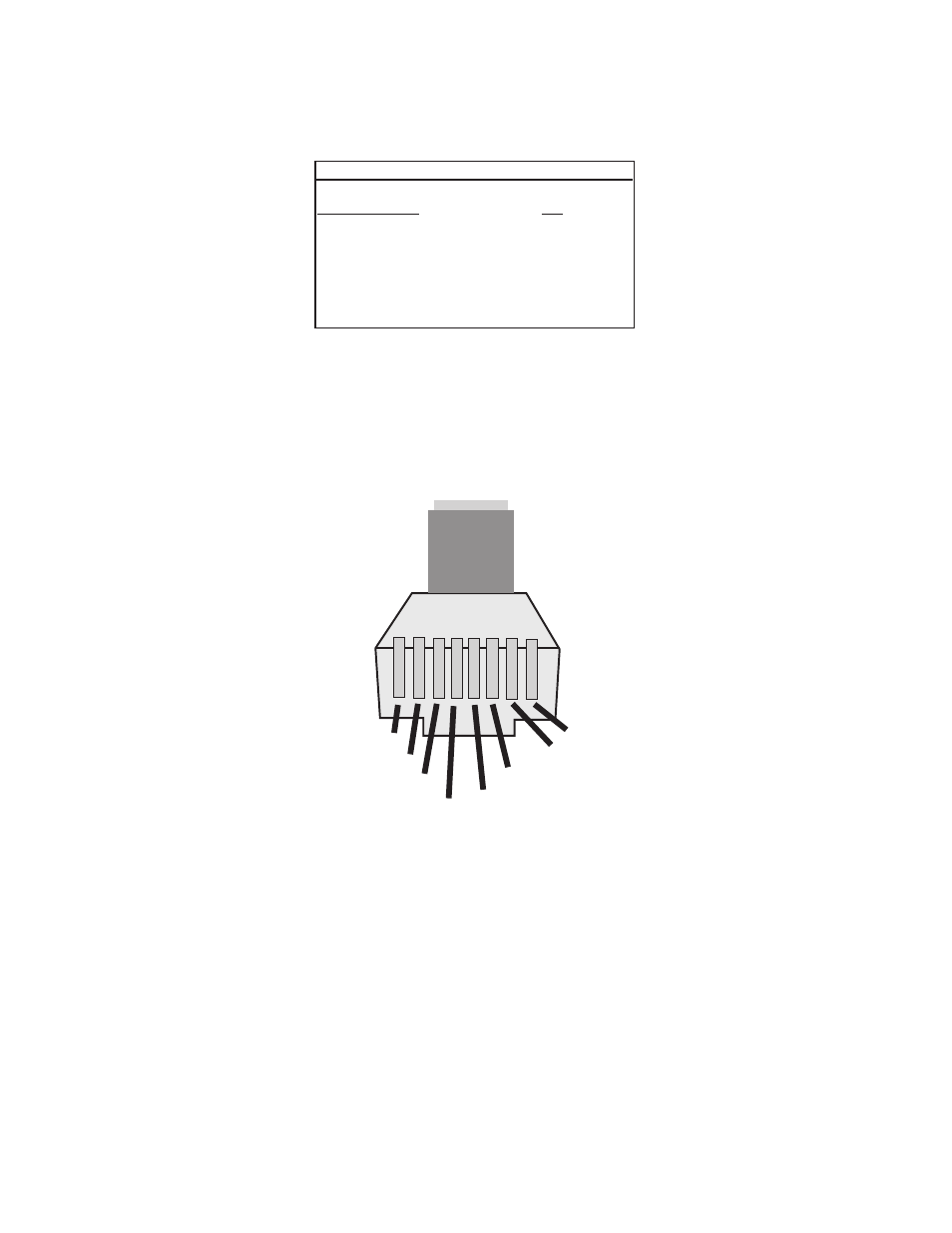

Wiring Diagrams
5-Pin Plug to Mic
5-Pin Connector Mic
1 Audio Shield
2 Audio +
3 Audio -
4 Mic Switch
5 GND
8 7 6 5 4 3 2 1
LineOut -
Cat 5 Plug
LineOut +
GND {Shield}
+24V
485-
485+
GND
GND
