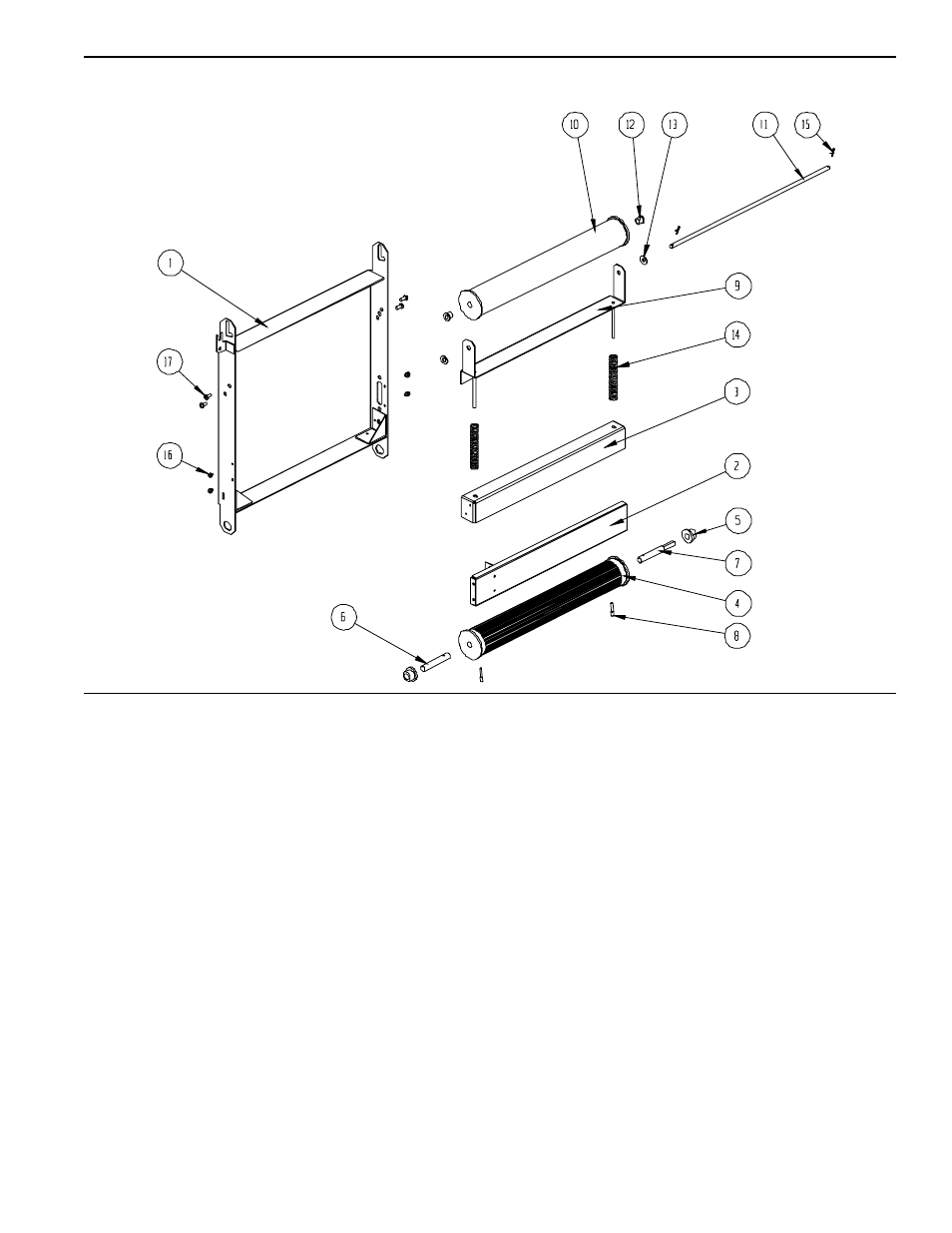

CONVEYOR ASSEMBLY EXPLODED VIEW
Item Part Number Description
1 537-351 Frame
2 537-354 Air Shield
3 537-349 Cross Brace
4 537-314 Lower Roller
5 537-370S Lower Bearing (Package of 2)
6 537-318S Lower Shaft (Short)
7 537-316S Lower Shaft (Long)
8 197-279 Pin
9 537-334 Slide Bracket
10537-313 Upper Roller
11 537-315 Upper Shaft
12 537-317S Upper Bearing (Package of 2)
13 79-055S Washer (Package of 2)
14 81-017S Spring (Package of 2)
15 86-272S Cotter Pin (Package of 2)
16 69-011S Rivet (Package of 4)
17 76-640 Screw
PARTS LIST
