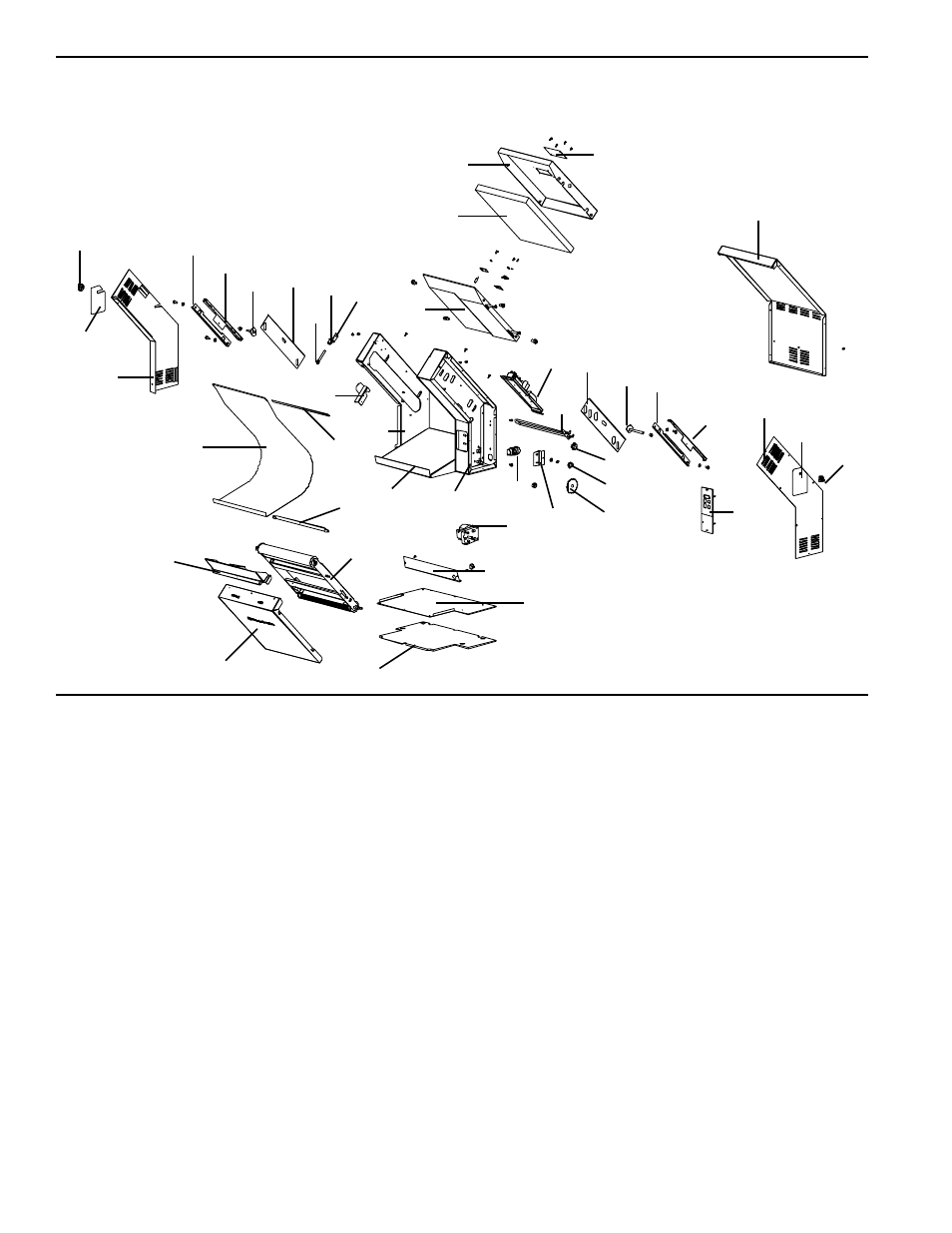

EXPLODED VIEW AND PARTS LIST
1
2
3
4
5
6
7
8
9
1 0
11
1 2
1 3
1 4
1 5
1 6 1 7
1 8
1 9 20
2 1
2 2
2 3
2 4
2 5
2 6
2 7
2 8
2 9
3 0
3 1
3 2
3 3
1 5
1 4
3 4
3 5
3 6
3 7
3 8
3 9
4 0 4 1
4 2
PARTS LIST
Item Part Number Description
1 537-324 Front Cover
2 537-394 Bun Chute
3 537-330S Conveyor Assy.
4 537-338 Base Pad
5 537-320 Bottom Plate
6 537-373 Ramp Baffle
7 87-028S Motor
8 537-383 Retainer Bar Lower
9 537-398 Retainer Bar Upper
10537-377S Teflon Sheet (Pkg. of 2)
11 537-333 LH Cover
12 537-395 Bun Crush Overlay
13 537-355 Bun Crush Adjustment Knob
14 537-298 Cam Bracket
15 537-379 Guide Bracket
16 537-329 LH Cam Shaft
17 537-300 LH Slide Plate
18 537-386 Adjustment Knob
19 537-385 Adjustment Nut
20537-382 Conveyor Bracket
21 537-381 Conveyor Bracket
22 537-319 Ramp
Item Part Number Description
23 537-336 LH Upright
24 537-335 RH Upright
25 537-295S Platen
26 537-337 Insulation
27 537-296 Heater Housing
28 537-366 Heater Housing Plate
29 537-321 Rear Panel
30537-332 RH Cover
31 537-396 Bun Thickness Overlay
32 537-355 Knob
33 537-343S PC Board & Overlay Assy.
34 537-328 RH Cam Shaft
35 537-299 RH Slide Plate
36 65-048S Heater Relay
37 537-341S Heater
38 537-340S Sprocket (14 Tooth)
39 421-072S Idler Sprocket
40537-348S Sprocket (32 Tooth)
41 537-347 Idler Bracket
42 66-034 Strain Relief
* 72-190S Line Cord
* 537-312 Rubber Belt
* 65-056S Power Relay
* 537-388S Transformer Assy.
* Not Shown
