Philips ShowView DVD757VR - Manual (Page 6)

Connecting to Optional Equipment (for
DVD features)
• A digital component with a built-in MPEG 2 or Dolby
Digital TM decoder allows you to enjoy the surround sound
while producing the effect of being in a movie theater or a
concert hall.
• The player outputs the surround sound signals from the DIG-
ITAL OUT COAXIAL or OPTICAL connector.
If your receiver has a MPEG 2 or Dolby Digital™ decoder,
1 Connect the COAXIAL or OPTICAL DIGITAL AUDIO OUT
of the DVD/VCR to the COAXIAL or OPTICAL DIGITAL
AUDIO IN on your receiver.
Note:
– If the audio format of the digital output does not match
the capabilities of your receiver, the receiver will pro-
duce a strong, distorted sound or no sound at all.
– MP3 Audio is not available on the Digital Output.
– You will still need the video cable or RF coaxial cable for
VCR features.
Connecting to an Audio System(for DVD
features)
1 You can also listen to the sound of audio CDs and DVD video
discs by connecting to an optional stereo system.
2 Connect DVD/VCR ANALOG AUDIO OUT (Left and Right)
to the audio in on the stereo system.
Simplest connection using only supplied
black RF coaxial cable
1 Disconnect the antenna or cable from your TV.
2 Connect the antenna or cable to the AERIAL of your DVD/VCR.
3 Connect black RF coaxial cable to the RF OUT on the rear
panel of the DVD/VCR and to the ANTENNA IN on the TV.
4 Plug in the power cords of the TV and DVD/VCR.
Connecting to a TV
1 Connect the antenna or cable to the AERIAL of your DVD/VCR.
2 Connect the DVD/VCR (AV1 TV) on the DVD/VCR to the
corresponding connector on the TV.
Note:
– Ensure that the “TV” indication on SCART cable is con-
nected to the TV set and “DVD” indication on SCART
cable is connected to the DVD/VCR.
If your TV is not equipped with a SCART input, you can select
the following connection:
If your TV has a S-Video input connector,
1 Connect the antenna or cable to the AERIAL of your DVD/VCR.
2 Connect the S-Video out on the DVD/VCR to the S-Video in
on the TV.
3 Connect the ANALOG AUDIO OUT on the DVD/VCR to the
Left and Right audio in on the TV.
Note:
– You will still need the SCART cable or RF coaxial cable
for VCR features.
Basic Connections
• Please refer to the instruction books of your TV,VCR, Stereo
System or other devices as necessary to make the best con-
nections.
• Make one of the following connections, depending on the
capabilities of your existing equipment.
The following guidelines are options for the best picture and
sound quality available on your DVD/VCR.
1 Use SCART RGB Output (DVD/VCR(AV1 TV)) for best pic-
ture quality (for DVD features).
2 Use S-VIDEO Output for the better picture quality (for DVD
features only).
3 Use SCART Composite Output for good picture quality (for
DVD and VCR features).
4 If your TV only has a RF-style (Antenna IN or 75 ohm) input,
use the RF OUT for connection and set your TV to channel
22 ~ 69 with the same channel for DVD/VCR is set (for DVD
and VCR features).
Sound
1 Digital audio connections provide the clearest sound. Connect
the DVD/VCR DIGITAL AUDIO OUT (either COAXIAL or
OPTICAL) to your amplifier or receiver (for DVD features only).
2 Use SCART Output (DVD/VCR(AV1 TV)) for better sound
quality (for DVD and VCR features).
If digital connections are not possible, connect the DVD/VCR
ANALOG AUDIO OUT(Left and Right) to your amplifier,
receiver, stereo or TV (for DVD features only).
Warning!
– Never make or change connections with the power
switched on.
– Connect the DVD/VCR directly to your TV, instead of eg.
a VCR, to avoid distortion because DVD video discs are
copy protected.
– Do not connect the ANALOG AUDIO OUT of DVD/VCR
to PHONO IN of your amplifier or receiver.
– If you use the Euro audio/video cable, it is not necessary
to connect the analog audio cable.
6
English

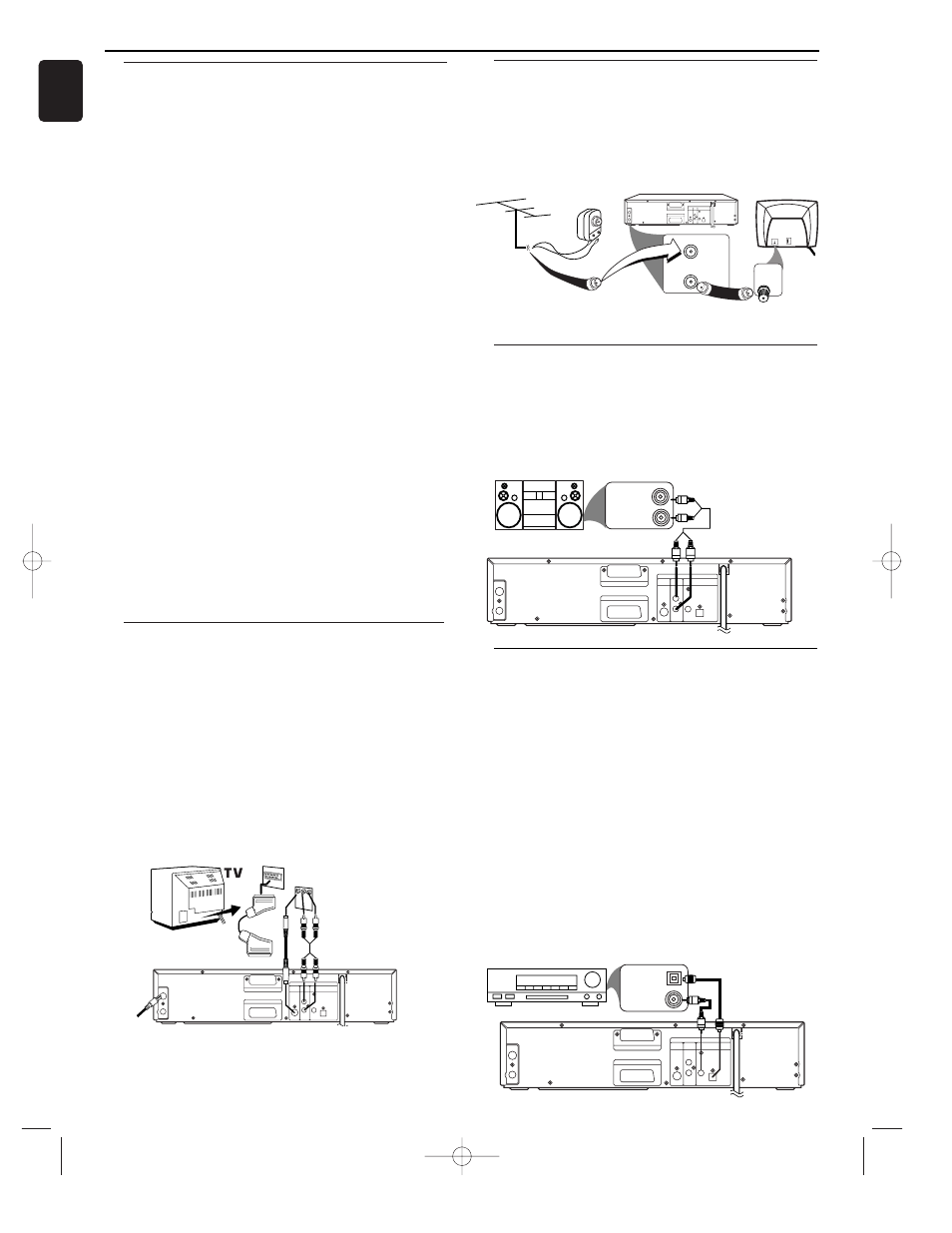

Setting Up your DVD/VCR
AERIAL
RF OUT
AV2 (DECODER)
DVD/VCR
AV1 (TV)
DVD OUTPUT ONLY
DIGITAL AUDIO OUT
L
R
COAXIAL OPTICAL
ANALOG AUDIO OUT S-VIDEO OUT VCR
OR
ANTENNA IN
AERIAL
RF OUT
AV2 (DECODER)
DVD/VCR AV1 (TV)
DVD OUTPUT ONLY DIGITAL AUDIO OUT
L
R
COAXIAL OPTICAL
ANALOG AUDIO OUT S-VIDEO OUT VCR
VIDEO L/MONO AUDIO R in 1
Antenna In
(on back of TV)
example only
OR
Antenna
Indoor/Outdoor
(300 ohm)
Cable
(75 ohm)
75
ANT CABLE
Back of DVD/VCR
Black RF
coaxial cable
(Supplied)
AERIAL
RF OUT
AERIAL
RF OUT
AV2 (DECODER)
DVD/VCR
AV1 (TV)
DVD OUTPUT ONLY
DIGITAL
AUDIO OUT
L
R
COAXIAL OPTICAL
ANALOG
AUDIO OUT
S-VIDEO
OUT VCR
STEREO
AUDIO (LEFT) IN
AUDIO (RIGHT) IN
AERIAL
RF OUT
AV2 (DECODER)
DVD/VCR
AV1 (TV)
DVD OUTPUT ONLY
DIGITAL AUDIO OUT
L
R
COAXIAL OPTICAL
ANALOG AUDIO OUT S-VIDEO OUT VCR
COAXIAL DIGITAL
AUDIO IN
OPTICAL DIGITAL
AUDIO IN
AUDIO RECEIVER
