2 How to route cables

Speed clamps and bead bands are included with the plasma
display for tidying your cables and keeping extra cable
length out of the way.

NOTE:
Cables can be routed to the right or left.

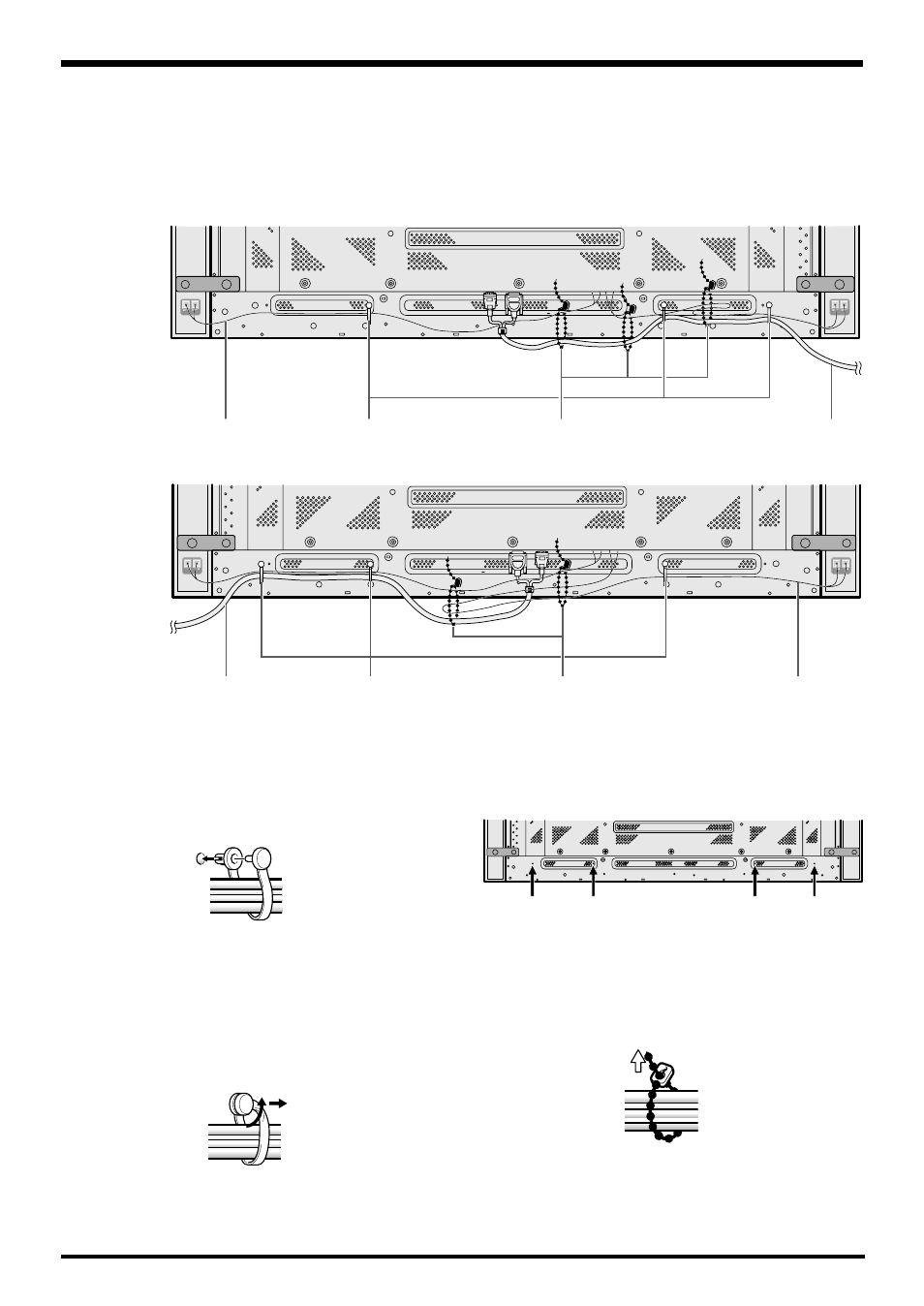

1 Organize cables together using the

speed clamps provided with the
plasma display.

Insert 1 into an appropriate hole on the rear of the unit, then

snap 2 into the back of 1 to fix the clamp.

Speed clamps are designed to be difficult to undo once in

place. Please attach carefully.

To remove speed clamps

Using pliers, twist the clamp 90° and pull it outward.

In some cases the clamp may have deteriorated over time
and may be damaged when removed.

1

2

To the right

*As viewed from the rear of the display.

Speed clamps

Bead bands

Speaker cable

To the left

Speaker cable

System cable

Speed clamps

Bead bands

System cable

2 Gather separated cables together and

secure them with the bead bands
provided with the plasma display.

To attach the speed clamps to the main unit

Connect the speed clamps using the 4 holes marked with •
below, depending on the situation.
