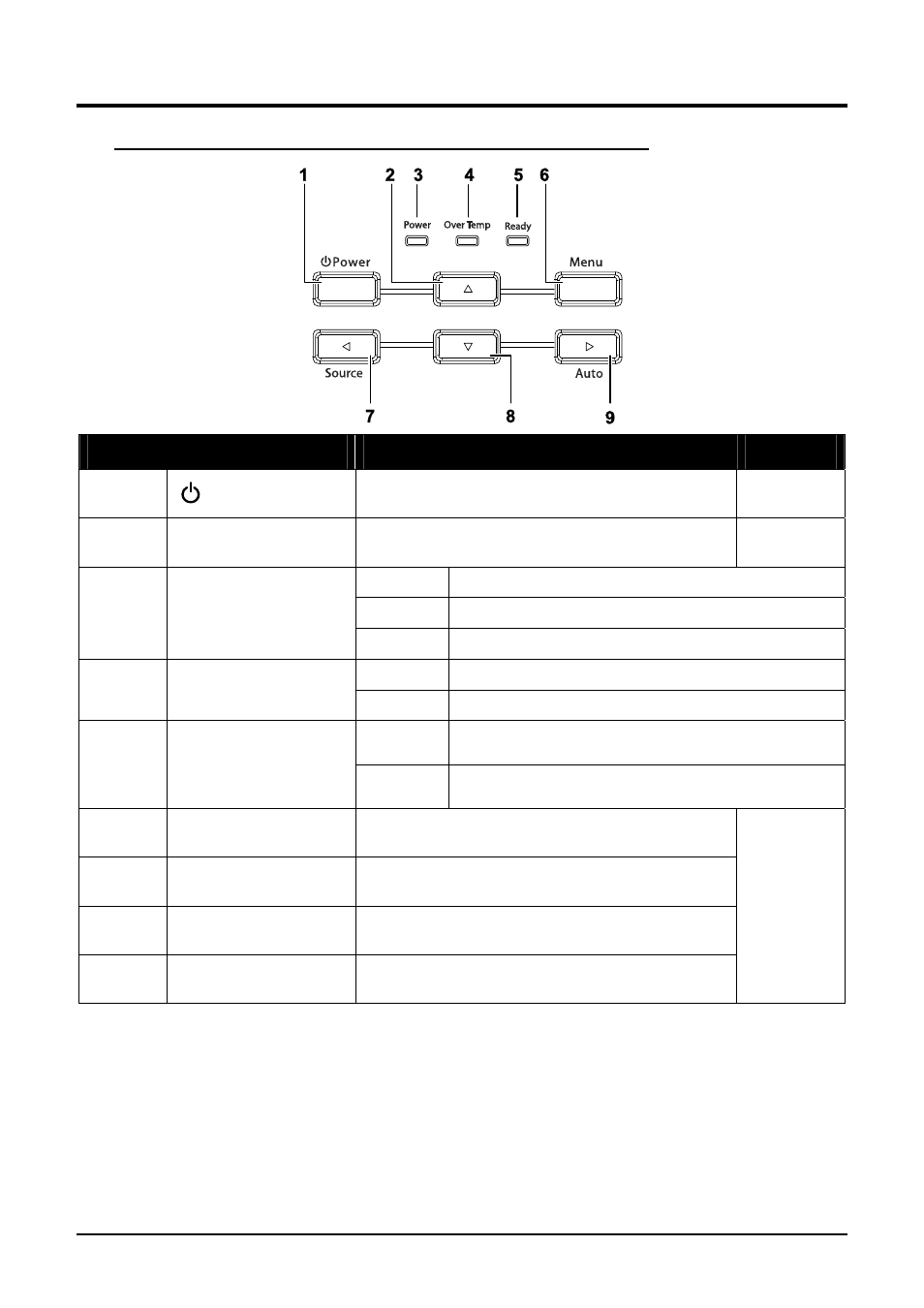

Top view—On-screen Display (OSD) buttons and LEDs
Item
Label
Description
See page:
1.
(Power)
Turns the projector On or Off
2.
▲ (Up cursor)
Navigates and changes settings in the OSD
Green
Power On
Off
Power Off (AC Off)
3.
Power LED
Flashing Error
code
On
System over temperature
4.
Over Temp LED
Off Normal
State
Orange
Lamp is ready to be powered-on.
5.
Ready LED
Flashing
Lamp not ready (Warm-up/shutting down/cooling)
(see LED Error Messages on page 42)
6.
Menu
Open and exits the OSD buttons
7.
◄ (Left cursor) /
Source
Detects the input device
Navigates and changes settings in the OSD
8.
▼ (Down cursor)
Navigates and changes settings in the OSD
9.
► (Right cursor) /
Auto
Optimizes image size, position, and resolution
Navigates and changes settings in the OSD
— 3 —
