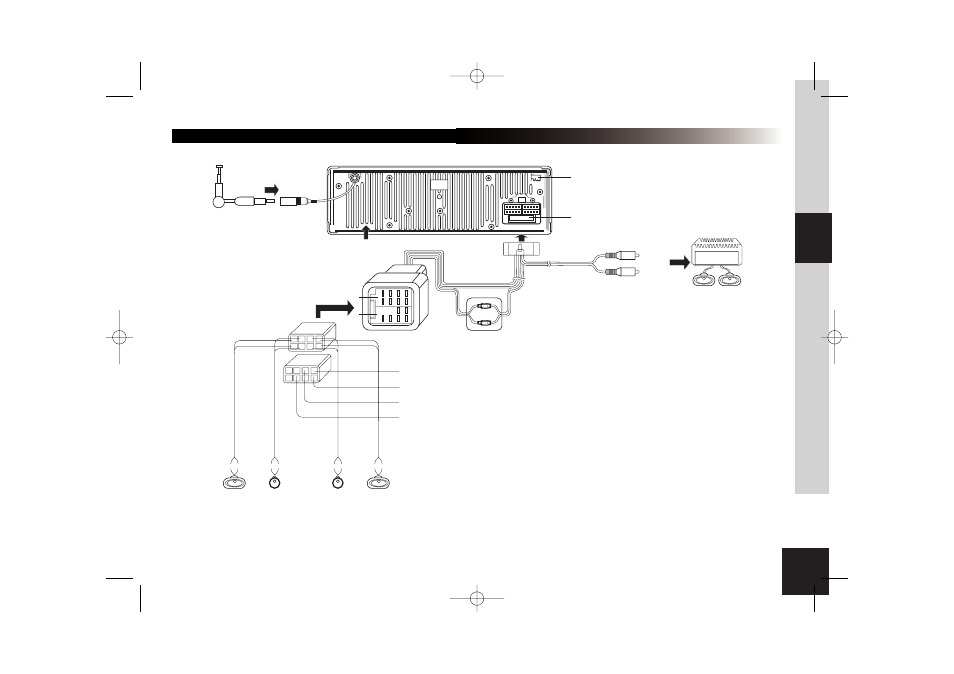

Rear Line-out (Gray)
R (Red)
Amplifier
Connector
ISO Connector
Red
Black
Blue
Yellow
L (White)
B
B
A
1 3 5 7
2 4 6 8
5 7
2 4 8
A
Ignition key
+ 12 V DC When ON/ACC
Fuse 15A
Ground Lead
Motor/Electric Antenna relay control Lead
Amplifier relay control Lead
To car battety (+)
Continuous + 12V DC
Purple Gray White Green
Gray/
Black
Stripe White/
Black
Stripe Green/
Black
Stripe Purple/
Black
Stripe
Right Speaker
(Rear)
Right Speaker
(Front)
(+) (-) (+) (-) (+) (-)
Left Speaker
(Front)
Left Speaker
(Rear)
(+) (-)
External microphone
Français
English
Italiano
Deutsch
Por
tuguês
Español
Dutch
GUÍA DE INSTALACIÓN
Nota: Para mantener en la memoria los parámetros, procure que los 12V de la llave y los 12V permanentes no estén invertidos.
Tendría que rehacer todas las regulaciones.
