upon having a minimum of 3 dB of
amplifier headroom available.

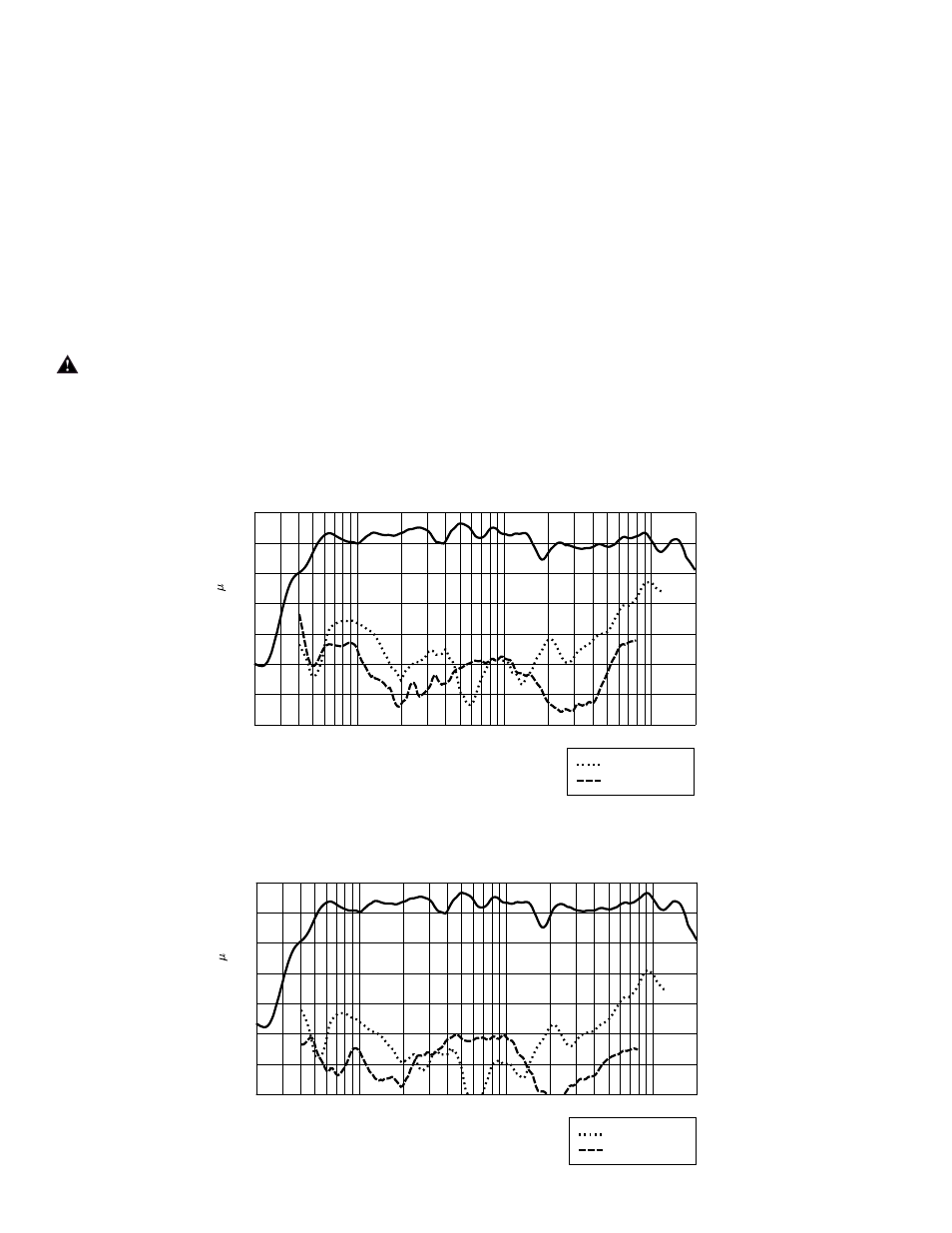

Harmonic Distortion
Second and third harmonic distortions vs.
frequency are plotted in figures 3 and 4 for
two power levels. Ten percent (10%) of
rated input power and either one percent
(1%) of rated input power or one Watt,
whichever is greater. Distortion is read
from the graph as the difference between
the fundamental signal (frequency
response) and the desired harmonic. As
an example, a distortion curve that is
down 40 dB from the fundamental is
equivalent to 1% distortion.
Mounting
Warning: This unit is not designed for
overhead suspension. SA
™ 1 stand
adpater is included on the bottom for
stand mounting applications.
Architectural and Engineering
Specifications
The loudspeaker system shall have an
operating bandwidth of 53 Hz — 16 kHz.
The nominal output level shall be 98.0 dB
when measured at a distance of one
meter with an input of one Watt. The
nominal impedance shall be 8.0 Ohms.
The maximum continuous power handling
shall be 500 Watts, maximum program
power of 1,000 Watts and a peak power
input of at least 2,000 Watts, with a
minimum amplifier headroom of 3 dB.
The nominal radiation geometry shall be
90 degrees in the horizontal plane and
40 degrees in the vertical plane. The
outside dimensions shall be 33.25 inches
high by 21.00 inches wide by 22.75 inches
deep. The weight shall be 85 pounds.
The loudspeaker system shall be a
Peavey model SP 2X.
This product is manufactured under U.S.
Patent 6,064,745.
3 + 2 YEAR LIMITED WARRANTY
NOTE: For details, refer to the
warranty statement. Copies of
this statement may be obtained
by contacting Peavey Electronics
Corporation, P.O. Box 2898, Meridian,
Mississippi 39301-2898.
20 50 100 200 500 1k 2k 5k 10k 20k
Frequency (Hz)
40
50
60
70
80
90
100
110
dB
SPL
(re
20
Pa)
Harmonic Distortion : 1% Rated Power
Figure 4
3rd Harmonic
2nd Harmonic
20 50 100 200 500 1k 2k 5k 10k 20k
Frequency (Hz)
50
60
70
80
90
100
110
120
dB
SPL
(re
20
Pa)
Harmonic Distortion : 10% Rated Power
Figure 3
3rd Harmonic
2nd Harmonic
