MODEL NUMBERS
MODELS
Enclosure Type
Signal
Format
Pedestal Mount* Wall Mount †
24 VAC 120/230 VAC 24 VAC 120/230 VAC
Standard with IOP
NTSC
PAL ES4036-2N
ES4036-2N-X ES4036-5N
ES4036-5N-X ES4036-2W
ES4036-2W-X ES4036-5W
ES4036-5W-X
With Wiper with IOP
NTSC
PAL ES4136-2N
ES4136-2N-X ES4136-5N
ES4136-5N-X ES4136-2W
ES4136-2W-X ES4136-5W
ES4136-5W-X
Standard with IOC
NTSC
PAL ES40P36-2N
ES40P36-2N-X ES40P36-5N
ES40P36-5N-X ES40P36-2W
ES40P36-2W-X ES40P36-5W
ES40P36-5W-X
With Wiper with IOC
NTSC
PAL ES41P36-2N
ES41P36-2N-X ES41P36-5N
ES41P36-5N-X ES41P36-2W
ES41P36-2W-X ES41P36-5W
ES41P36-5W-X
*Pedestal mount models include Esprit EPP pedestal adapter plate. Use with PM2000/PM2010 mount (not supplied) for
pedestal application.
† Wall mount models include Esprit EWM wall mount. Optional mounting adapters for corner, pole, and parapet
applications are available.
REPLACEMENT INTEGRATED OPTICS PACKAGE (IOP)
The following IOP modules are replacement components only; they are not
interchangeable.
ESIOP36 Esprit high resolution day/night camera and
lens module, 36X, NTSC format
ESIOP36-X Same as ESIOP36 except PAL format
REPLACEMENT PRESSURIZED INTEGRATED OPTICS
CARTRIDGE (IOC)
The following IOC models are replacement components only; they are not
interchangeable.
IOC-36 Esprit high resolution day/night camera and
lens module, 36X, NTSC format
IOC-36-X Same as IOC-36 except PAL format
OPTIONAL ACCESSORIES
ES-REPLBLADE-2 Package of 2 window wiper replacement
blades.
ES-REPLBLADE-10 Package of 10 window wiper replacement
blades.
IPS-RDPE-2 Remote data port. 24 VAC, wall/pole mount
video/data breakout box. Allows ground-level
control/configuration when used with the
IPS-CABLE. (No code upload.)
IPS-CABLE Kit consisting of the remote monitor interface
cable and necessary software for use with
a PC
TXB Series Translator boards for AD ™ Manchester,
Hernis, Bosch ® (Philips, Burle), Sensormatic ® ,
TASS, Vicon ™ , and NTCIP protocols.
OPTIONAL MOUNTS AND ADAPTERS
ECM100 Corner mount adapter for use with EWM wall
mount
EPM Pole mount adapter for use with EWM wall
mount
EA4348 EWM-to-Legacy adapter; use with PP4348
parapet mount
PM2000/PM2010 Pedestal mount with cable feedthrough.
For use with Esprit systems with EPP pedestal
adapter plate.
RECOMMENDED POWER SUPPLIES
MCS Series Multiple 24 VAC camera power supply, indoor
WCS Series Single/multiple 24 VAC camera power supply,
outdoor

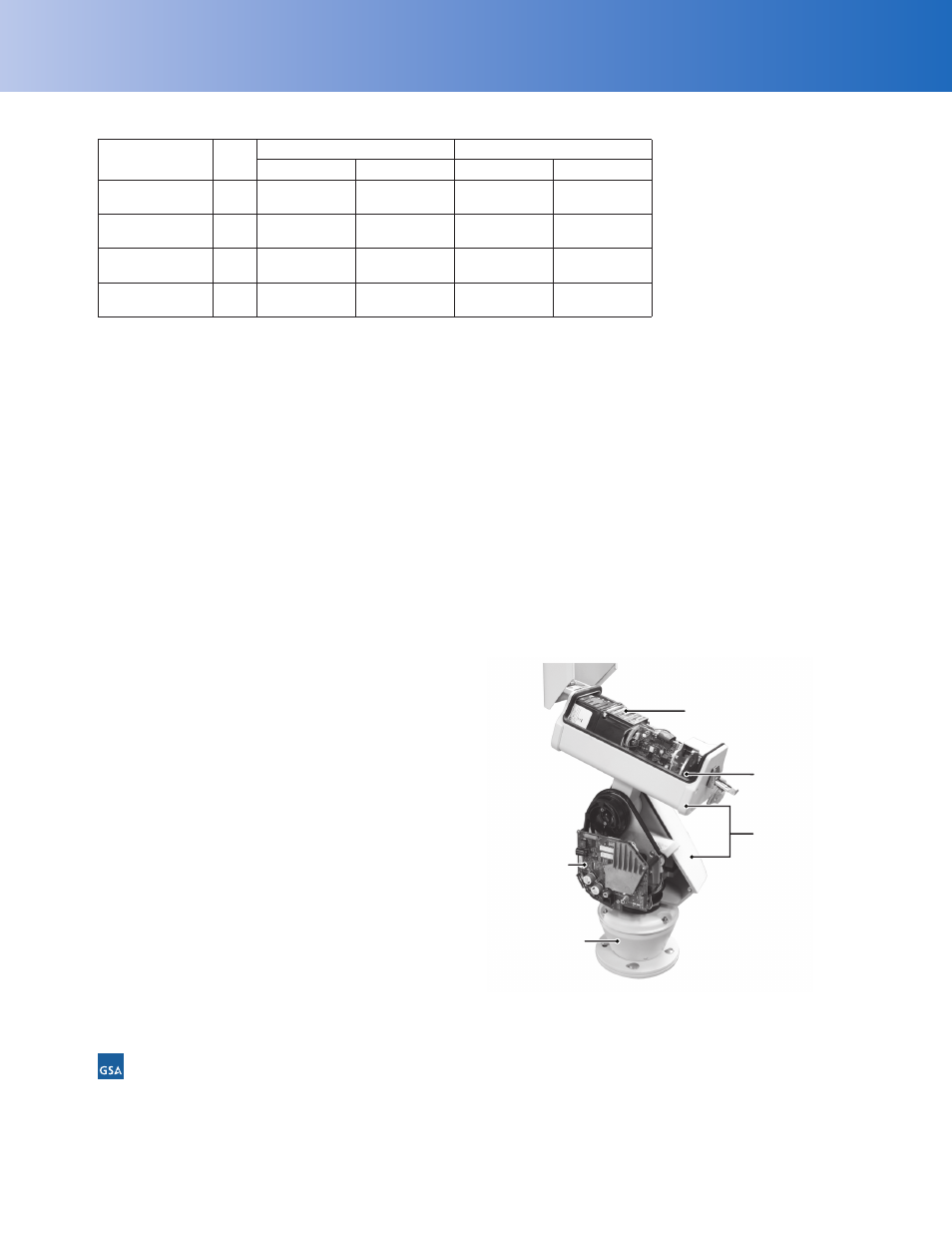

FACTORY INSTALLED
RECEIVER/DRIVER
TRANSFORMER
MODULE
MEETS NEMA TYPE 4X/IP66
ENCLOSURE STANDARDS
OPTIONAL FACTORY
INSTALLED WIPER
MECHANISM
INTEGRATED OPTICS PACKAGE (IOP) OR
PRESSURIZED INTEGRATED OPTICS
CARTRIDGE (IOC) IP67
Contract #GS-07F-9323S
