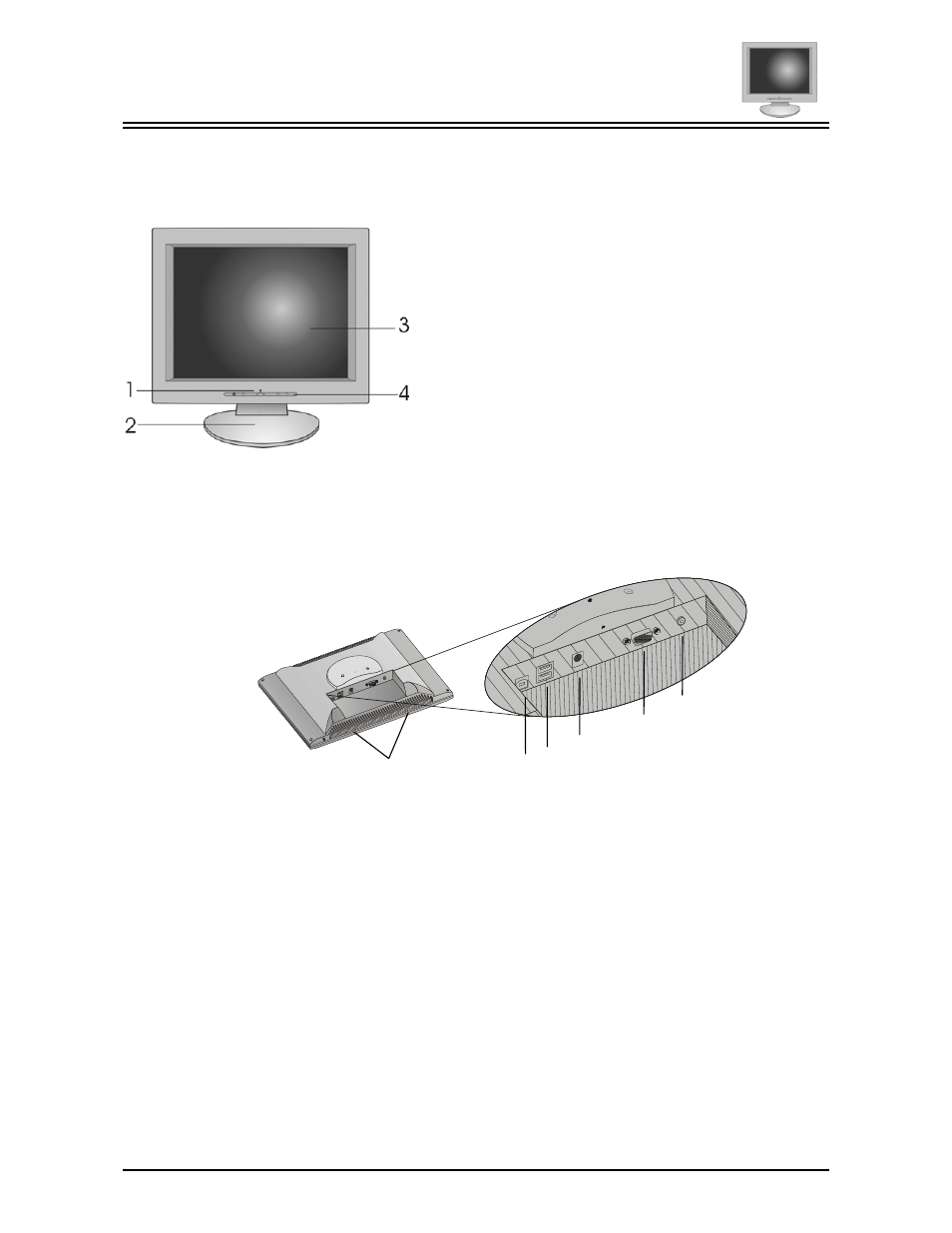

Your New Planar LCD Monitor — Front View
1. Power-On Indicator
This LED indicator stays lit when the power is on and when
the monitor is receiving a proper video signal. The LED will
blink slowly when the LCD monitor is in power saving
mode.
2. Monitor Stand
The monitor stand supports the LCD monitor.
3. LCD Screen
The LCD monitor screen is a 15-inch diagonal, Acitve Ma-
trix Liquid Crystal Display (AMLCD). The screen is capable
of supporting a maximum resolution of 1024 x 768 RGB
(XGA).
4. LCD Monitor Keypad
Activates and adjusts the monitors settings through an On
Screen Display (OSD).
Your New Planar LCD Monitor — Rear View
1. Stereo Speakers (optional)
The LCD monitor’s built-in stereo speakers are located in the bottom the monitor and face the direc-
tion of the desktop.
2. Upstream USB Port (optional)
Connect the AC adapter cable to this jack.
3. Downstream USB Ports (optional)
The monitor’s two downstream USB ports let the LCD monitor function as a USB hub allowing the
connection of USB compliant devices. The upstream USB port must be connected to your PC for the
downstream ports to function.
4. DC Power Jack
Connect the AC adapter cable to this jack.
5. VGA Cable Connector
Connect the supplied 1.5m 15-pin D-Sub VGA cable to this connector. The opposite end of the cable
is connected to your PC’s graphics card.
