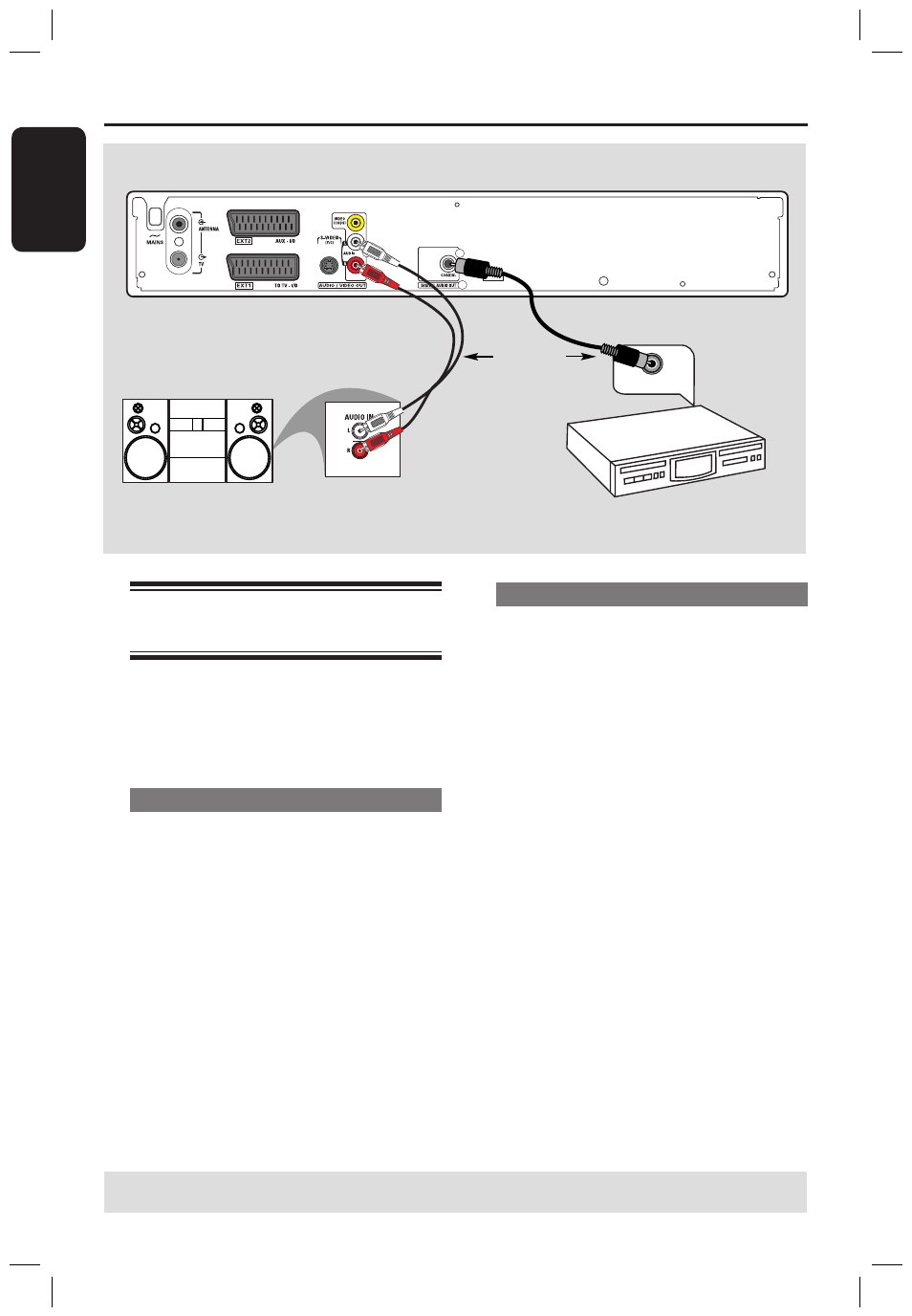

Basic Connections - DVD recorder

(continued)

STEREO / TV

DIGITAL IN

Option 2

Option 1

OR

AV amplifier/
receiver

Step 3: Connecting the

audio cables

This connection enables you to listen to
the sound. This connection is not
required if the DVD recorder is
connected to the TV using scart cable.

Option 1: Using Audio sockets

You can connect the DVD recorder to a
two channel stereo system or receiver in
order to enjoy the stereo sound system.

Use an audio cables (red/white ends - not

supplied) to connect AUDIO L/R
sockets to one of the following devices
with the same input sockets.
– a stereo system (for example, TV or
mini system).
– a receiver with two channel analog
stereo.

Option 2: Using Coaxial socket

You can connect the DVD recorder to
an AV amplifier/receiver in order to
enjoy multichannel surround sound.

Use a coaxial cable (not supplied) to

connect COAXIAL socket to the device
that has the same input socket
(COAXIAL IN or DIGITAL IN).
– an AV amplifier/receiver with a digital
multi-channel sound decoder.

Before you start operating, set the Digital
Audio Output accordingly (see page 57).
If the Digital Output setting does not
match your stereo’s capabilities, the
stereo may produce a strong, distorted
sound or no sound at all.
