6
WA RN ING
Do no t o pe rat e m ow er un les s c on tai ne r is pro pe rly iss ub jec t to we ar an d d eti eri ora tio n. Ch ec k b ag fre qu en tly. Re pla ce wh en cra cke d o r d ama ged . U se on ly a rec om me nd ed rep lac em en t c on tai ne r.
WA RN ING
Do no t o pe rat e m ow er un les s c on tai ne r is pro pe rly iss ub jec t to we ar an d d eti eri ora tio n. Ch eck ba g f req ue ntly . R ep lac e w he nc rac ke d o r d am ag ed . U se on ly a rec om me nd ed rep lac eme nt co nta ine r.
02 08 4

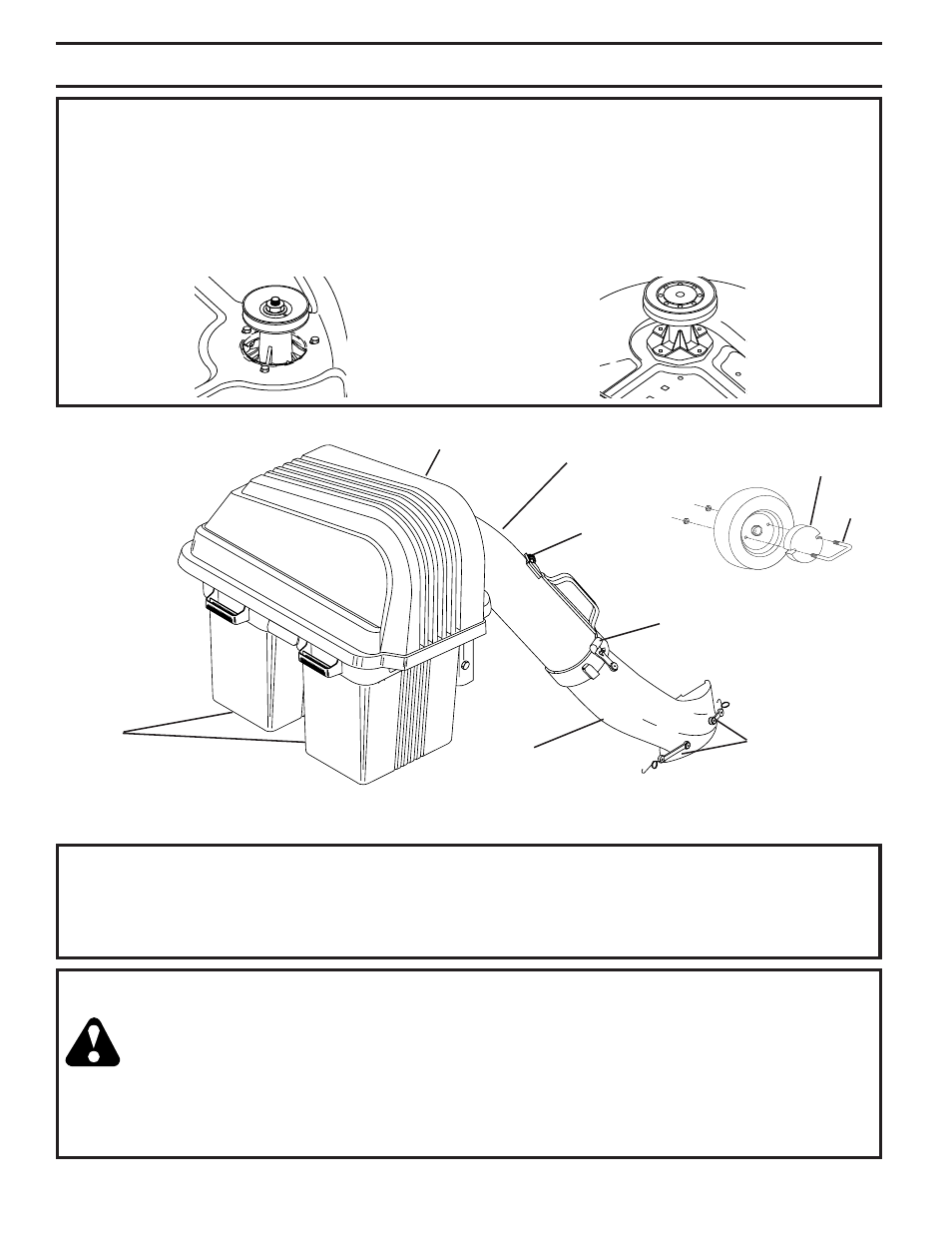

PARTS IDENTIFICATION
UPPER CHUTE
COVER
CHUTE LATCH
LOWER CHUTE
ATTACHING
STRAPS
LOWER CHUTE
GRASS
CATCHER
CONTAINERS
FULL
BAG
INDICATOR
WHEEL
WEIGHT
U-BOLT
BEFORE YOU START TO ASSEMBLE THE GRASS CATCHER
Some mower models may need minor modifi cations before you can mount the grass catcher to the unit. Look carefully
at the mower deck on your unit and compare the deck mandrel to the illustrations below. If your mower deck mandrel
looks like STYLE "A", your unit is ready - proceed with the grass catcher assembly. If your mower deck mandrel
looks like STYLE "B", go to the PREPARATION section in this manual.
DECK MANDREL
STYLE "B"
DECK MANDREL
STYLE "A"
ASSEMBLY
CAUTION: BEFORE ASSEMBLING GRASS CATCHER TO TRACTOR:
• Depress clutch/brake pedal fully and set parking brake.
• Place gearshift/motion control lever in neutral (N) position.
• Place attachment clutch in "DISENGAGED" position.
• Turn ignition key "OFF" and remove key.
• Make sure the blade and all moving parts have completely stopped.
• Disconnect spark plug wire from spark plug and place wire where it cannot come in contact
with plug.
(1) 3/8" Wrench
(1) 1/2" Socket
(1) 9/16" Socket (1) Drive Ratchet
(1) 3" or longer Extension
(1) Short Handle
Phillips Screwdriver
THESE ARE THE TOOLS YOU WILL NEED TO AS-
SEMBLE YOUR GRASS CATCHER:
NOTE: When right hand (R.H.) and left hand (L.H.) are mentioned in this manual, it means when you are seated on the
tractor, in the operator's position.
