Philips Sound Solutions
The Ultimate Edge™ Soundcard Users Guide 13

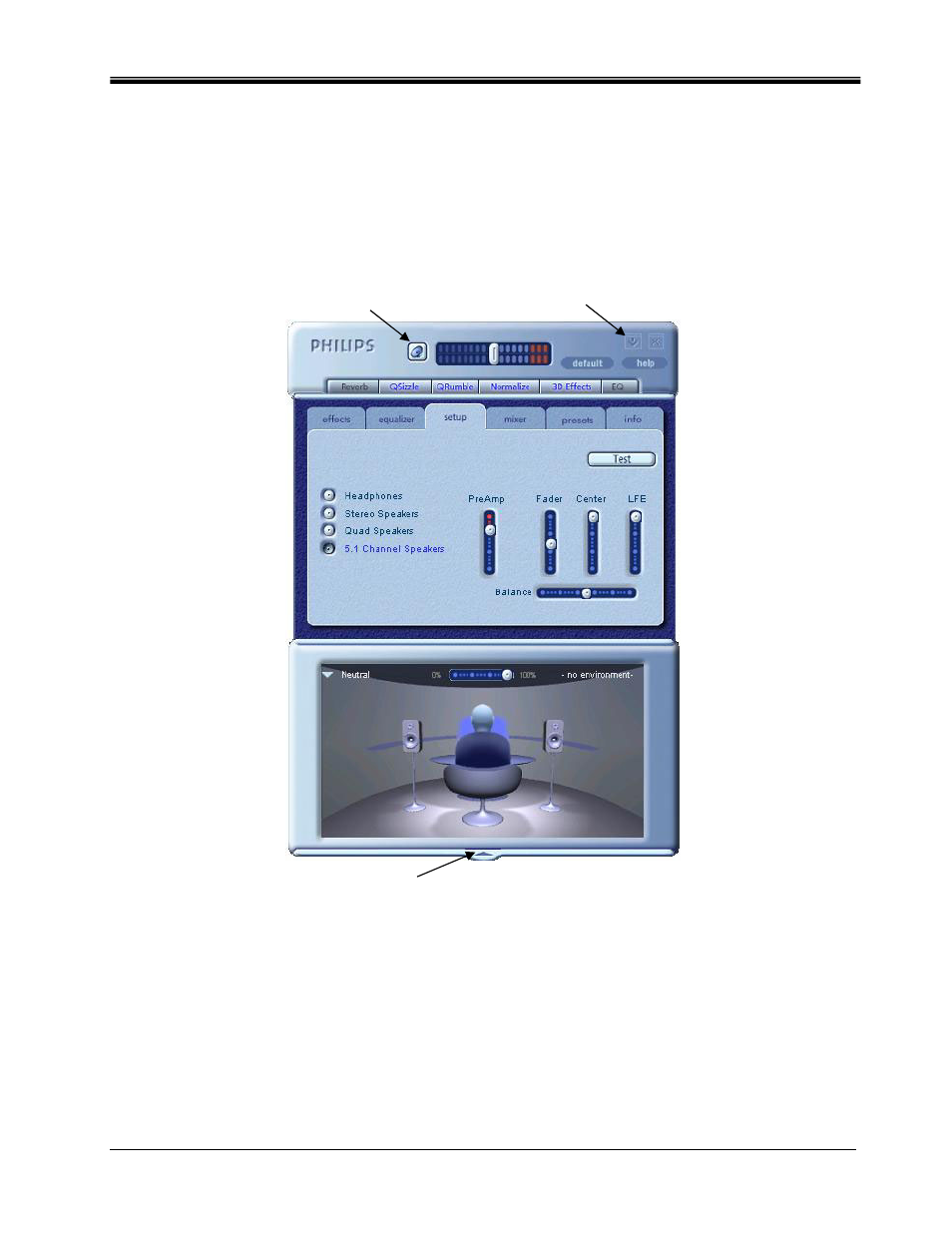

When PSA2 HD is launched for the first time, it appears in the fully expanded form as shown in
Figure 8. The panel contains three distinct sections; Compact Control Panel, Main Control
Panel, and Visual Control Panel. Use the Resize button to reduce the expanded form to a
compact form. The Compact Control Panel takes up very little space on the screen and it
contains the top-level controls. However, to set or change some of the settings, you need to
expand to the Main Control Panel. Use the Resize button when you need to expand the Main
control panel again.
Mute Button Resize Button
Drop down/Pull up arrow
Figure 8
The Visualization Control Panel provides a graphic representation of the advanced audio
processing features of the Ultimate Edge soundcard. It also includes controls to enable the
environmental effects. The
Visualization Control Panel appears only in the expanded mode as a
sliding cover for the Main Control Panel .
Compact
Control panel
Main
Control
Panel
Visualization
Control Panel
