MAINS INLET
RS232
VGA 1 VGA 2
DVI-d
RC OUT
Y/C S-VHS G/Y/Y
CVBS B/Pb/Cb
R/Pr/Cr V
H
VIDEO 2 (AV2)
VIDEO 1 (AV1)
VIDEO 3 (AV3)
You may connect 3 possible VGA sources (VGA 1, VGA 2 or DVI-D)
and 3 possible video sources (VIDEO 1 (AV1), VIDEO 2 (AV2) and
VIDEO 3 (AV3)) to the monitor.

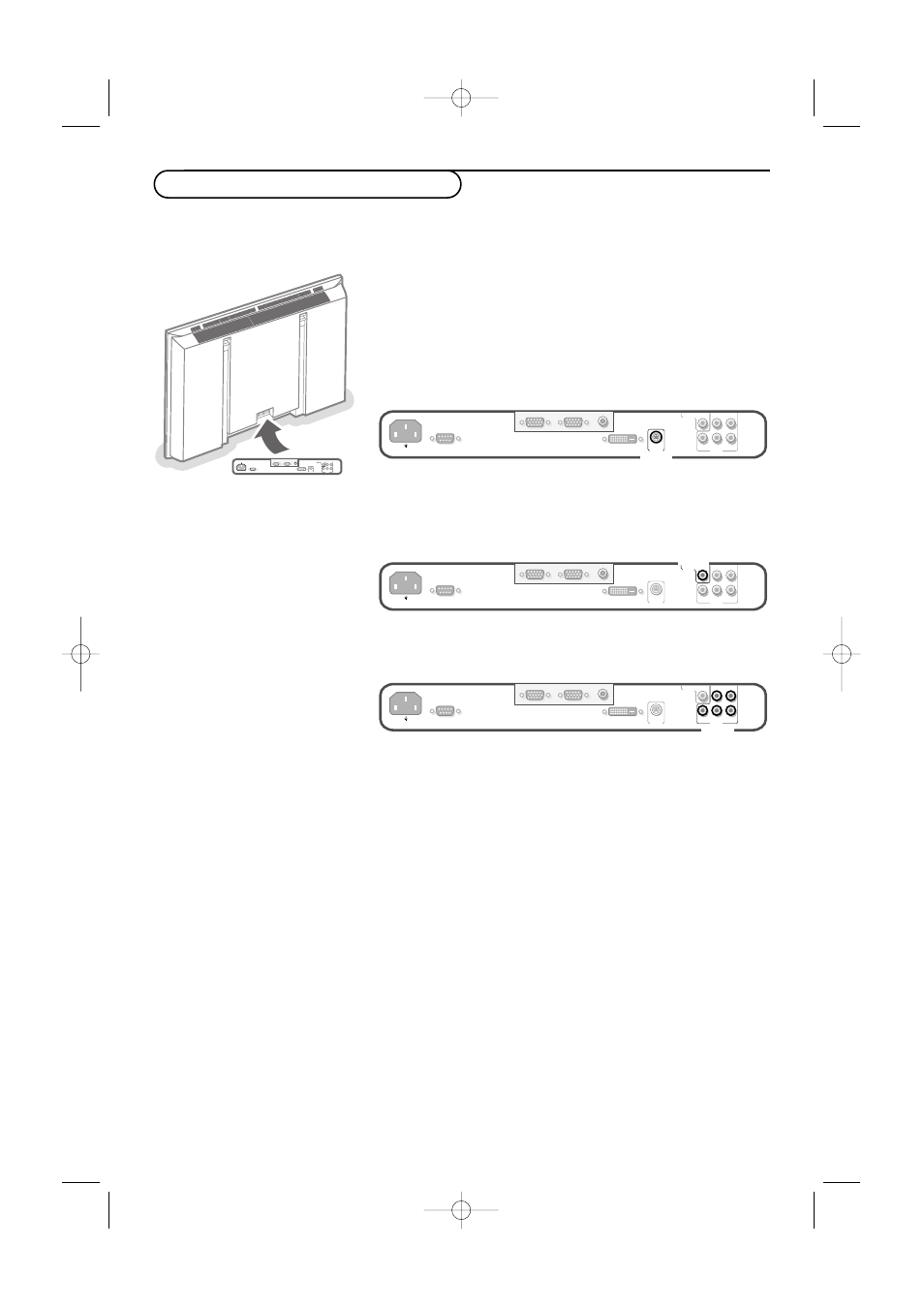

The following diagrams show you where you can connect your
peripheral equipment.
Note: in case the monitor is operating in combination with a receiver box, the
VGA and video inputs on the monitor will be disabled and the VGA 2
connector becomes an output.
Equipment with Y/C-SVHS output connectors
Connect the video cable to the Y/C S-VHS VIDEO 2 (AV2) connector.
Equipment with CVBS output connectors
Connect the video cable to the CVBS VIDEO 1 (AV1) connector.
Equipment with Component Video Output connectors
Note: VIDEO 3 (AV3) can handle the following video signals:YCbCr, HD-PbPr
and HD-RGB. The discrimination between the various input formats and the
appropriate video processing is done automatically. It is however possible to
overrule the automatic detection. See Setup menu, p. 6.
& Connect the video cables of your equipment with YPbPr output with
composite sync on Y, or of your equipment with YCbCr output with
composite sync on Y to the YPbPr, resp.YCbCr input
VIDEO 3 (AV3)
IN sockets of the monitor.
é Connect the video cables of your equipment with RGB output with
separate Horizontal and Vertical sync to the RGB input sockets and to
the H and V sockets
VIDEO 3 (AV3) of the monitor.
Note: when High Definition signals are inputted to the monitor via the
YPbPr/RGB input, the monitor switches to the HD Video Mode.
The following HD and ED video modes are supported by the monitor on the
YPbPr, RGB and VGA 2 HD input:
1920x1080/60I 720x480/60P
1280x720/60P 720x576/50P
The following SD video modes are supported by the monitor on the YCbCr
input:
720x480/60I
720x576/50I
~ MAINS
RS232 DVI-D Y/C S-VHS G/Y/Y
CVBS B/Pb/Cb
R/Pr/Cr V
H
VGA 1 VGA 2 RC-OUT
VIDEO 3
(AV3)
VIDEO 2
(AV2)
VIDEO 1 (AV1)
VIDEO 2
(AV2)
~ MAINS RS232 DVI-D Y/C S-VHS G/Y/Y
CVBS B/Pb/Cb
R/Pr/Cr V
H
VGA 1 VGA 2 RC-OUT
VIDEO 3
(AV3)
VIDEO 2
(AV2)
VIDEO 1 (AV1)
VIDEO 1
(AV1)
~ MAINS
RS232 DVI-D Y/C S-VHS G/Y/Y
CVBS B/Pb/Cb
R/Pr/Cr V
H
VGA 1 VGA 2 RC-OUT
VIDEO 3 (AV3) VIDEO 2 (AV2)
VIDEO 1
(AV1)
VIDEO 3
(AV3)
Connect peripheral equipment
