1 59192 Cap Valve Tire
2 65139 Stem Valve
3 170455 Tire F T 15 x 6 0 - 6 Service
4 59904 Tube Front (Service Item Only)
5 106732X421 Rim Asm 6" front Service
6 278H Fitting Grease (Front Wheel Only)
7 9040H Bearing Flange (Front Wheel Only)
8 106108X421 Rim Asm 8"rear Service
9 170456 Tire R T 20 x 10 -8 C Service
10 7152J Tube Rear (Service Item Only)
11 104757X421 Cap Axle 1 50 x 1 00
- - 144334 Sealant, Tire ( 10 oz. Tube)
8
14
5
1 164095 Decal Dash
2 176303 Decal Fender Auto
3 176273 Decal Hood LH
4 177020 Decal Side Panel
5 170851 Decal HP Engine
6 173587 Decal Refl ector Rh
7 173589 Decal Refl ector Lh
8 170563 Decal Warning Mower
9 172740 Decal Fender Logo
10 157140 Decal Fender Danger E/F
11 172743 Decal Ins Strg Whl
KEY PART
NO. NO. DESCRIPTION
1
6
2
1
5,8
4,10
3,9
11
7
wheel_1

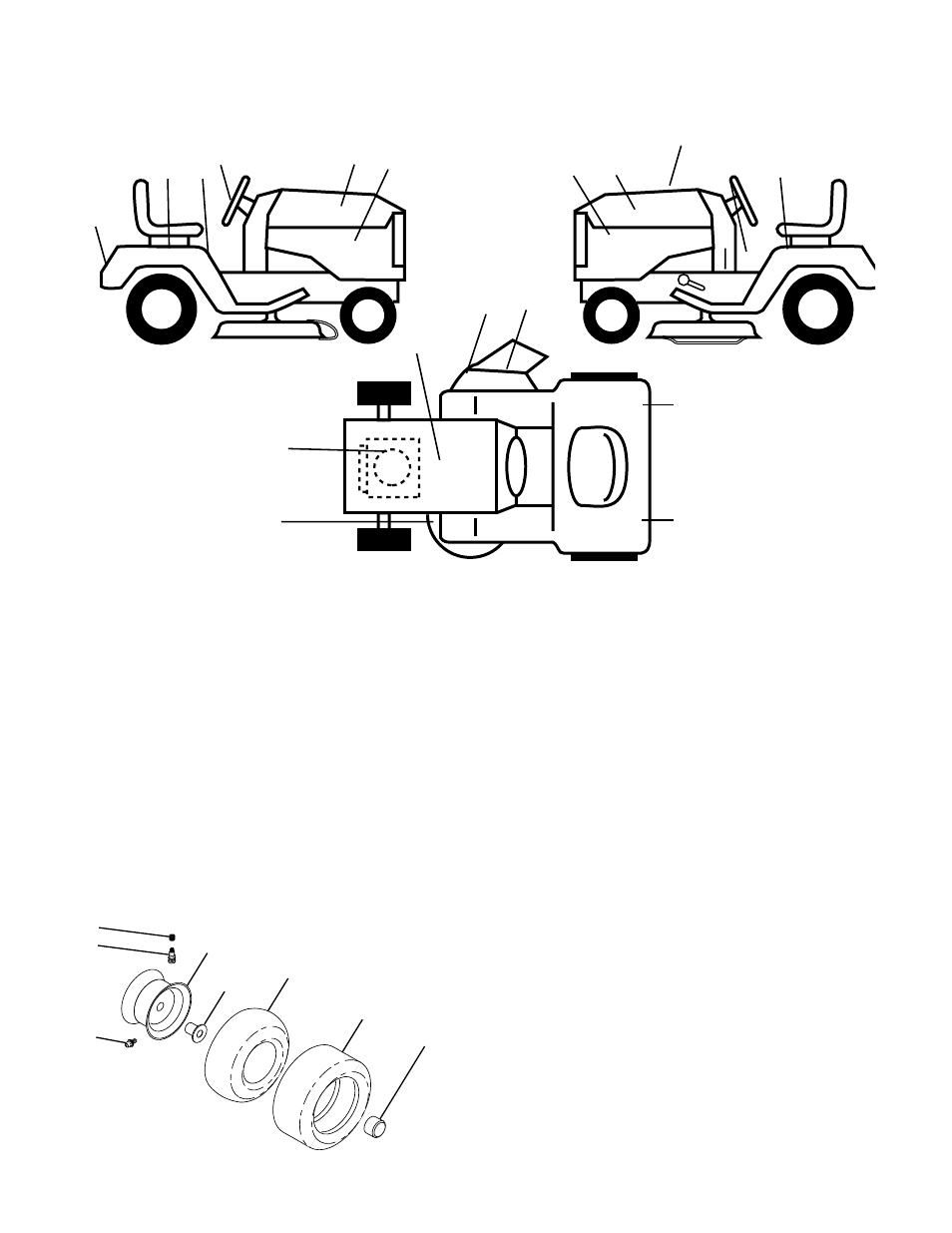

WHEELS & TIRES
12 177982 Decal Fender Oper Cruise
13 185440 Decal Final Replace Part
14 160396 Decal V-Belt Schematic
15 179128 Decal Deck B" 42"
16 176272 Decal Hood Rh
20 145005 Decal Bat Dan/Psn
- - 169210 Decal By Pass Lt Hydro
- - 174998X428 Pad Footrest Lh
- - 175542X428 Pad Footrest Rh
- - 186914 Manual Owner's (English)
- - 186915 Manual Owner's (French)
