Quick Installation
Make sure the computer is turned off.
Attach the female end of the power cord (Indication F) to the adapter (Indication E), then
plug the adapter connector to the power “DC-IN (Indication A)” jack of the LCD monitor.
When using a power cord, plug the male end into the wall socket.
Plug one end of the 15-pin D-Sub signal cable (Indication G) in the “ANALOG” video
signal connector (Indication B) of LCD monitor. If you use digital signal, plug one end of
the 24-pin DVI-D signal cable in the “DIGITAL” video signal connector (Indication C) of
LCD monitor.
Note: This 24-pin Digital cable is optional.
When using an audio cable, plug one end of the cable in the “AUDIO” jack of the LCD
monitor (Indication D), and plug the other end in the jack of the sound card.
Turn on the computer.
Turn on the LCD monitor.
Before your operations of the monitor, please refer to P.7 “Operations” first.

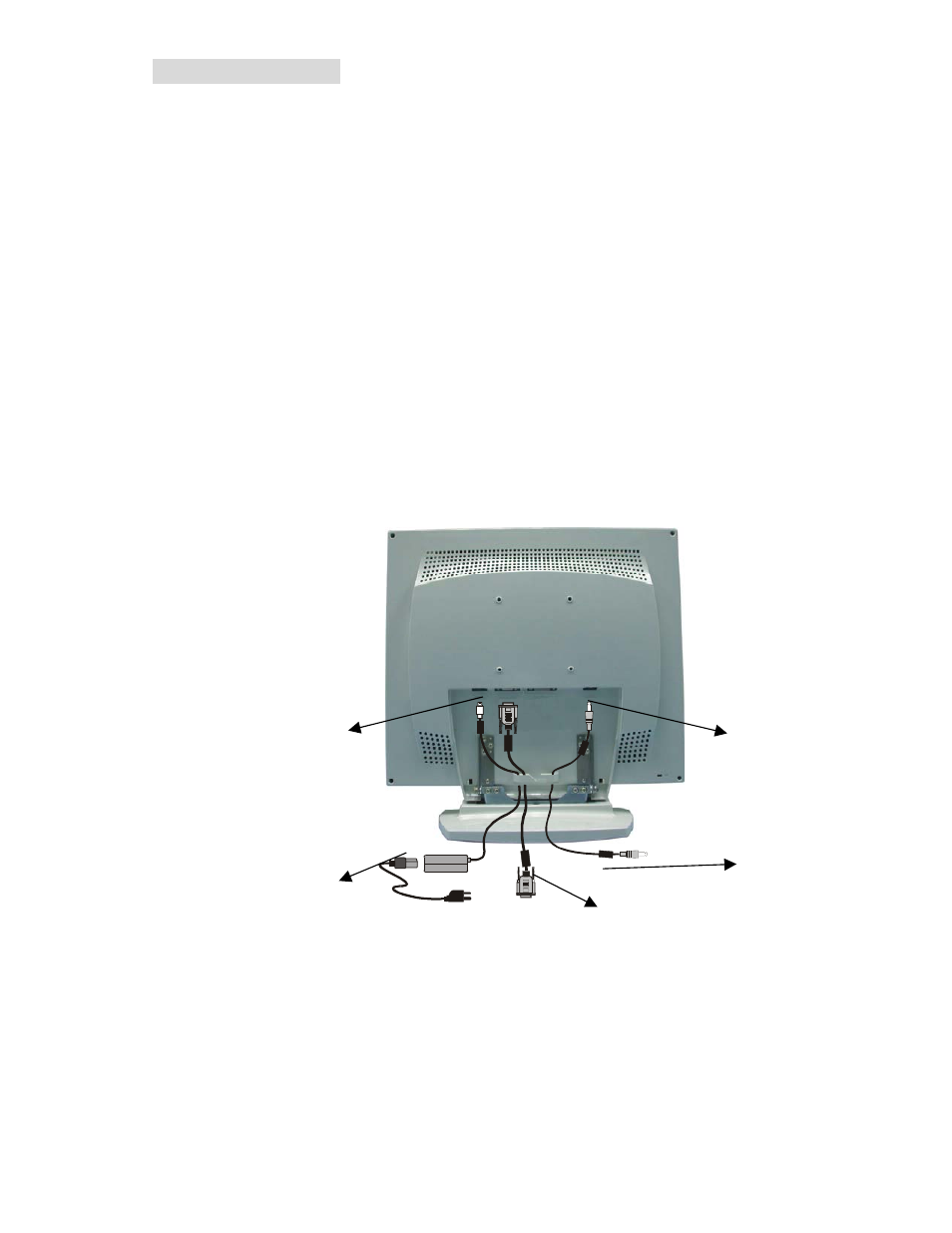

DC IN
ANALOG
AUDIO
A B C D
I
H
G
E
F
A. DC IN
G. D-Sub Signal Cable
B. ANALOG
H. Audio
Cable
C. DIGITAL
(Optional)
D. AUDIO
E. Adaptor & Power
Cord
