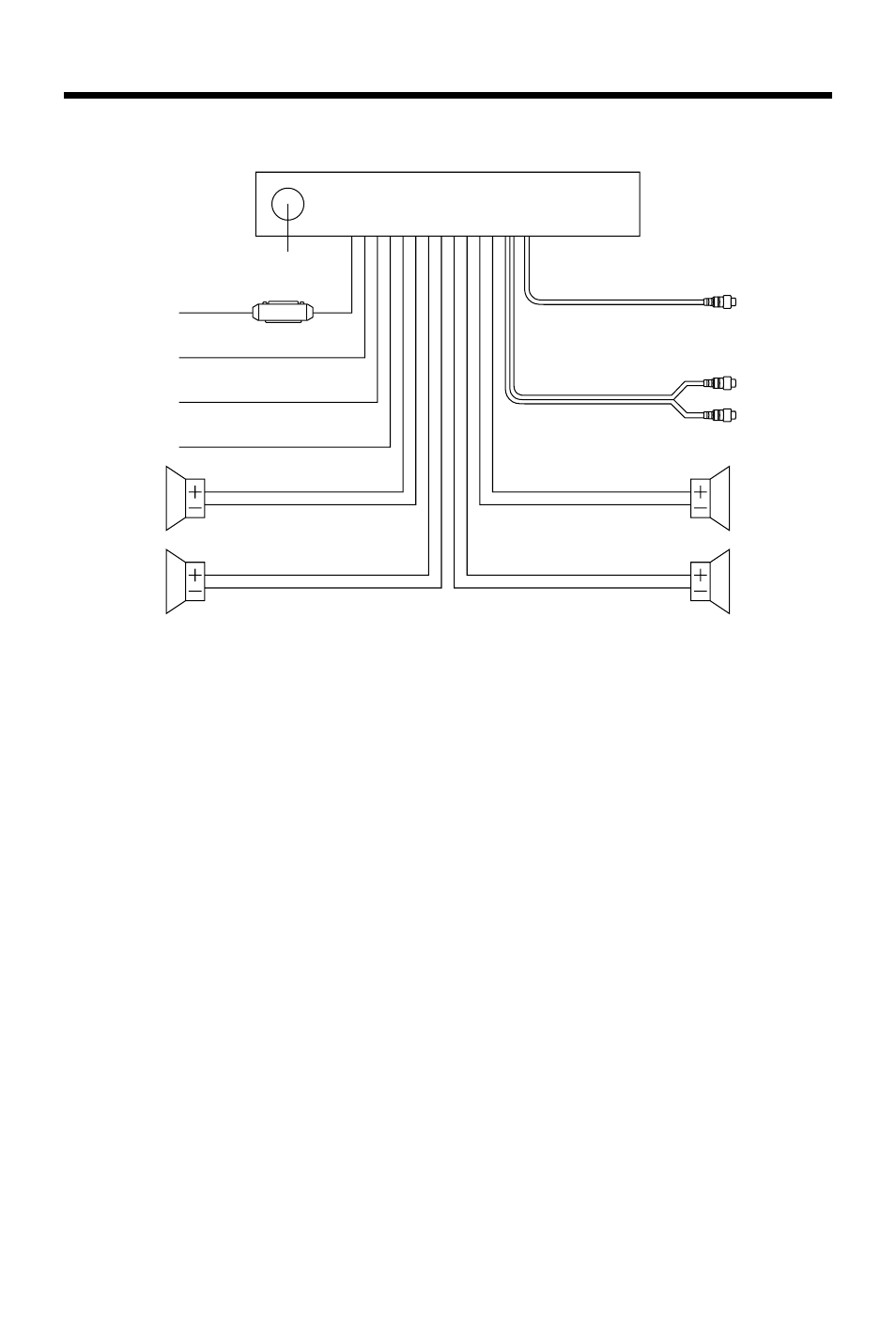

WIRING CONNECTION
GREEN
GREEN/BLACK
GREY
GREY/BLACK
VIOLET
VIOLET/BLACK
MAIN UNIT
WHITE
WHITE/BLACK
FRONT Lch
SPEAKER
REAR Lch
SPEAKER
FRONT Rch
SPEAKER
REAR Rch
SPEAKER
Rch RED
Lch WHITE
(GREY)
RCA CABLE
ANTENNA CONNECTOR
RED
BLUE POWER
ANTENNA
GROUND (B–)
MEMORY
BACK-UP
IGNITION
SWITCH (B+)
SUBWOOFER
CABLE
(GREEN)
FUSE
BLACK
YELLOW
