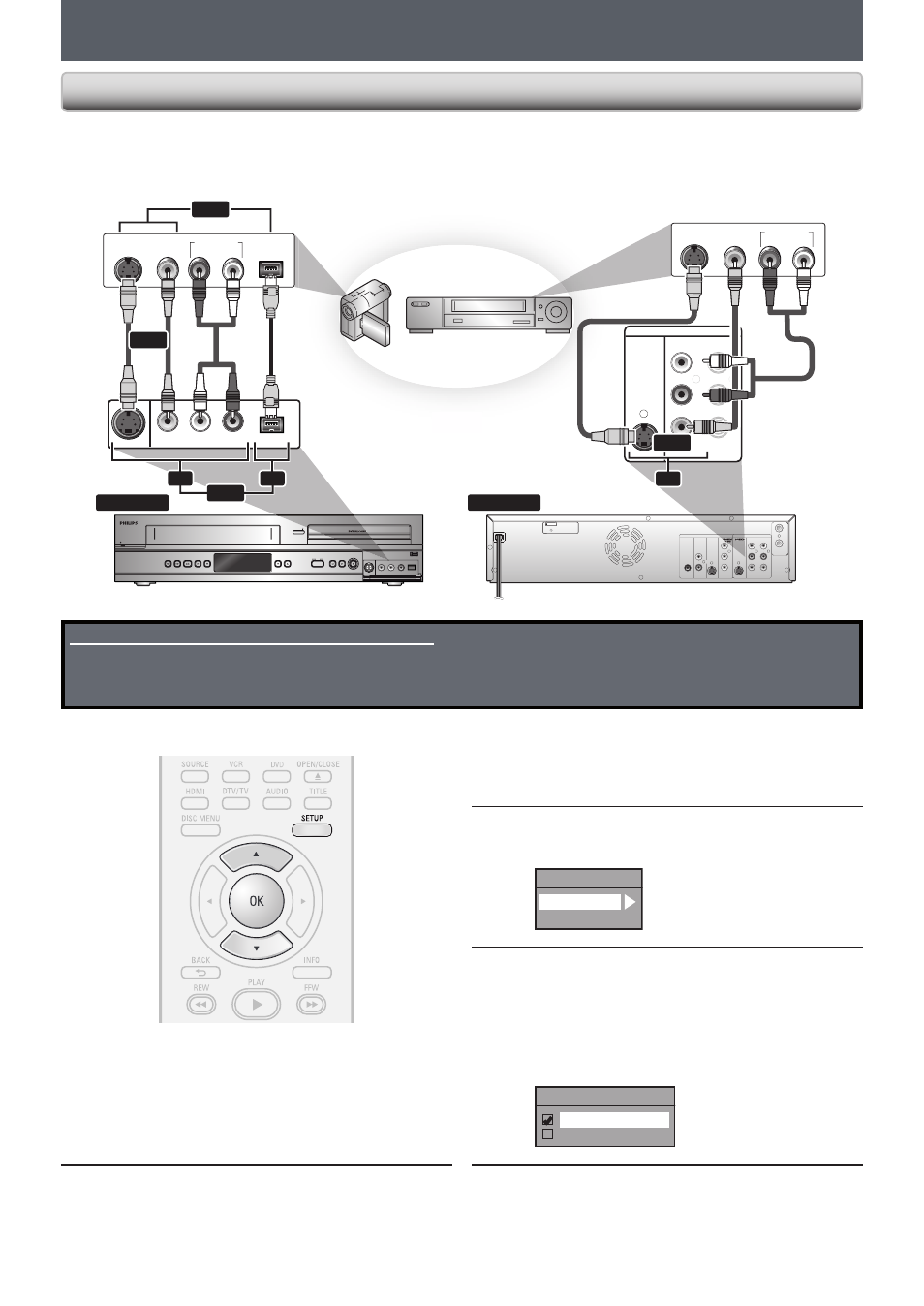

SETTINGS FOR AN EXTERNAL DEVICE
HDMI OUT
D GI AL AUD O OUT AUD O OUT S IDEO
OUT IN
COAX AL
L
R
L
P B C B
P R C R
R
L
R
OUT
N
N AUD O OUT
N V DEO OUT
C I
AN ENNA
ER 4 HEAD H -FI STEREO
O E T U H R CO D NG L NG L Y
DVD ECO DER VCR D DR 3 4 V
S A DB ON
R W F WD L Y P Y R C T P J CT T P EC C A N L
O RCE
V R VD
O E C O E
V L A D O R DV
front of this unit rear of this unit
IN
L
R
S-VIDEO IN --- AUDIO --- OU
IN --- VIDEO -- OU
DVD/VCR
S VIDEO
OUT AUDIO OUT DV OUT
L R
VIDEO
OUT
S VIDEO
OUT
AUDIO OUT
L R
VIDEO
OUT
to E1 IN
external device
(camcorder, VCR etc.)
S-video
cable
RCA
video
cable
S-video
cable
DV cable
(4-pin)
RCA
video
cable
RCA
audio
cable
RCA
audio
cable
to E2 & E3 IN
or
or
E2 E1 E3
or
or
or
3 Use [
K / L] to select “Video Input”,
then press [OK].
4 Use [
K / L] to select desired external
input, then press [OK].
Video Input
E1 (Rear)
E2 (Front)
5 Use [
K / L] to select the input jack
type to connect, then press [OK].
If you want to use VIDEO IN jack, select “Video
In”.
If you want to use S-VIDEO IN jack, select
“S-Video In”.
E1 (Rear)
Video In
S-Video In
6
Press [SETUP] to exit.
Connect the external device properly to the unit by using input jacks either E2 and E3 (Front) or E1 (Rear).
When connecting an external device of monaural output to this unit, use AUDIO L jack of E2 (Front).
Use S-video or the RCA audio/video cables for this connection.
When connecting a DV-camcorder, use DV input jack of E3 (Front) instead of S-VIDEO IN or VIDEO IN jack.
Connection to an External Device
1 Press [SETUP] and use [
K / L] to
select “General Setting”, then press
[OK].
“General Setting” menu will appear.
2 Use [
K / L] to select “Video”, then
press [OK].
Submenu will appear.
Supplied cables used in this connection are as follows:
• RCA audio cable (L/R) x 1
• RCA video cable x 1
Please purchase the rest of the necessary cables at your local store.
