Precor EFX 883 User Manual
Page 20
18
Assembling and Maintaining Elliptical Fitness Crosstrainers: EFX 883 / 833
5.
Using a right-angle ³₁₆" hex wrench, remove the four ¹₄" x
³₄
" buttonhead screws securing the central plastic base
cover.
6.
Remove the tape at the top of the left upright support.
7.
Feed one of the cables you want to install down through
the upright support, then along the inside of the foot
support and back through the central frame member. The
following illustration shows the general path of the cable.

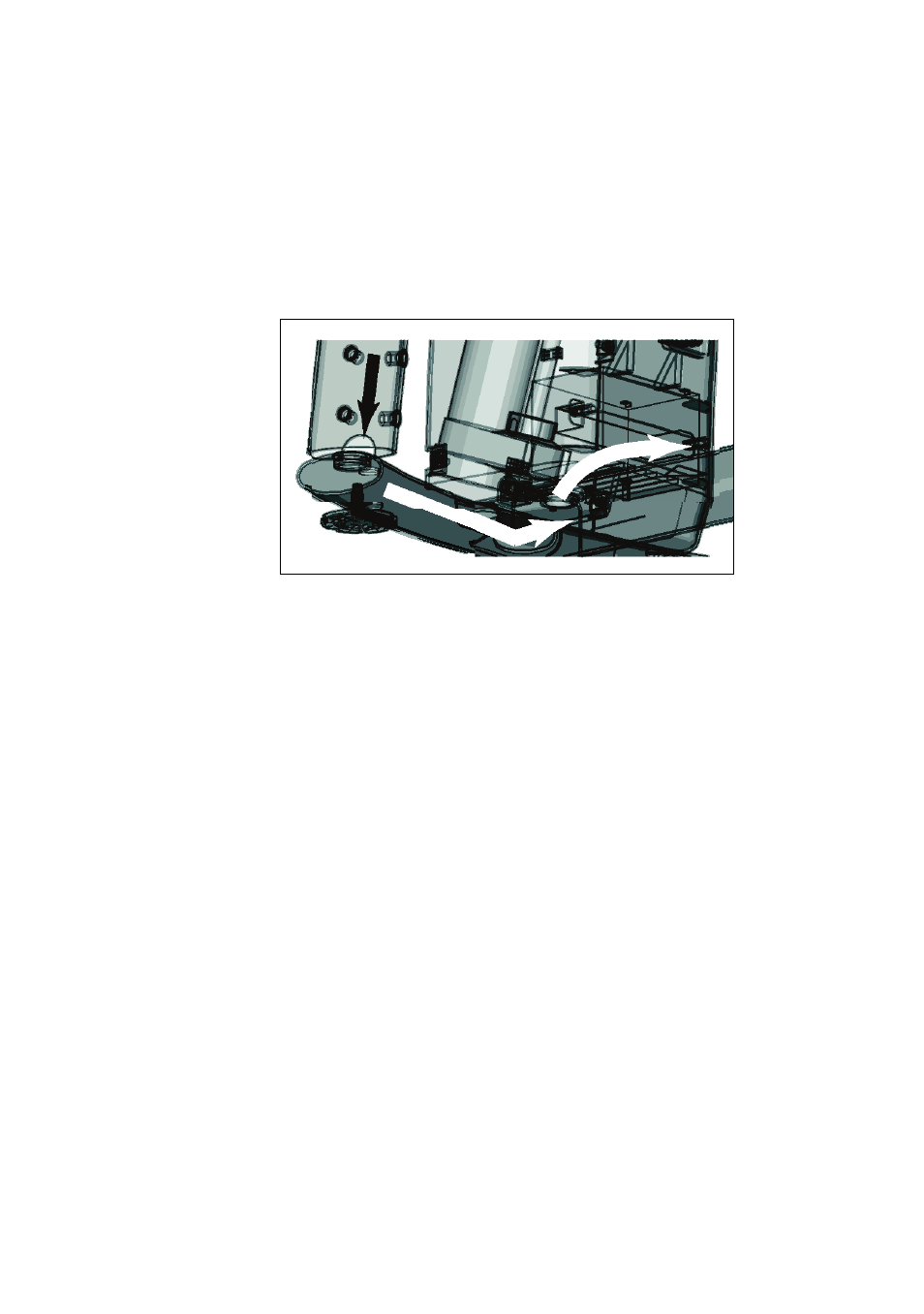

Figure 5: EFX cable path
8.
Pull the end of the cable upward through the opening just
behind the lift motor, as shown in the previous illustration.
