Precor EFX 883 User Manual
Page 19
Assembling the EFX
17
2.
Thread the cable through the left upright support. Tape it
to the top of the upright support to secure it temporarily.
Important: Do not stretch, crimp, or damage the cable.
Cables damaged by improper installation will not be covered
by the Precor Limited Warranty.

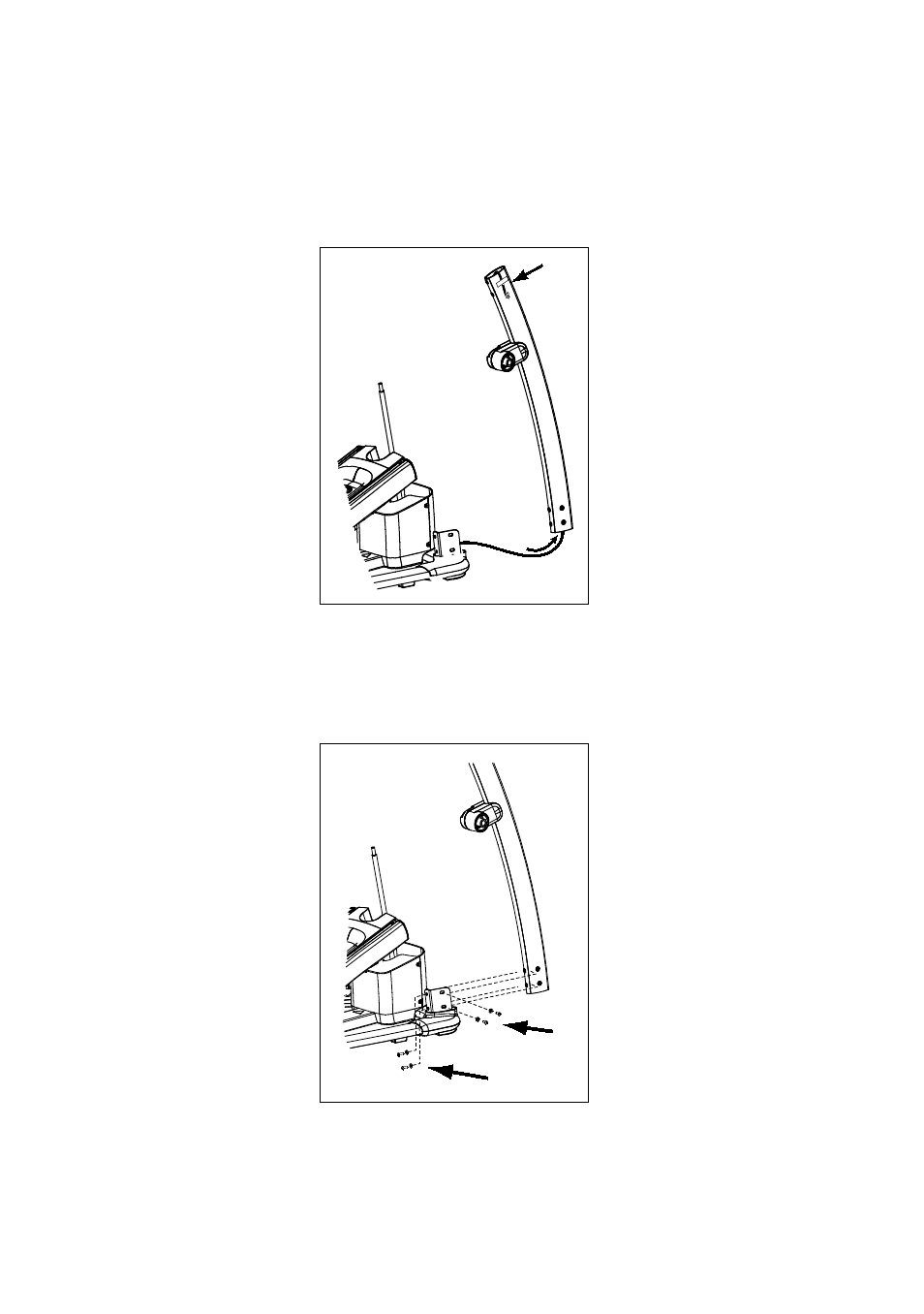

Figure 3: Route the cable
3.
Attach the left upright support to the base frame using
four buttonhead screws, four split washers, and four
⁵₁₆
-inch washers. Partially tighten the fasteners.
Figure 4: Attach the upright support to the base frame
4.
Repeat steps 2 through 4 to attach the right upright
support.
