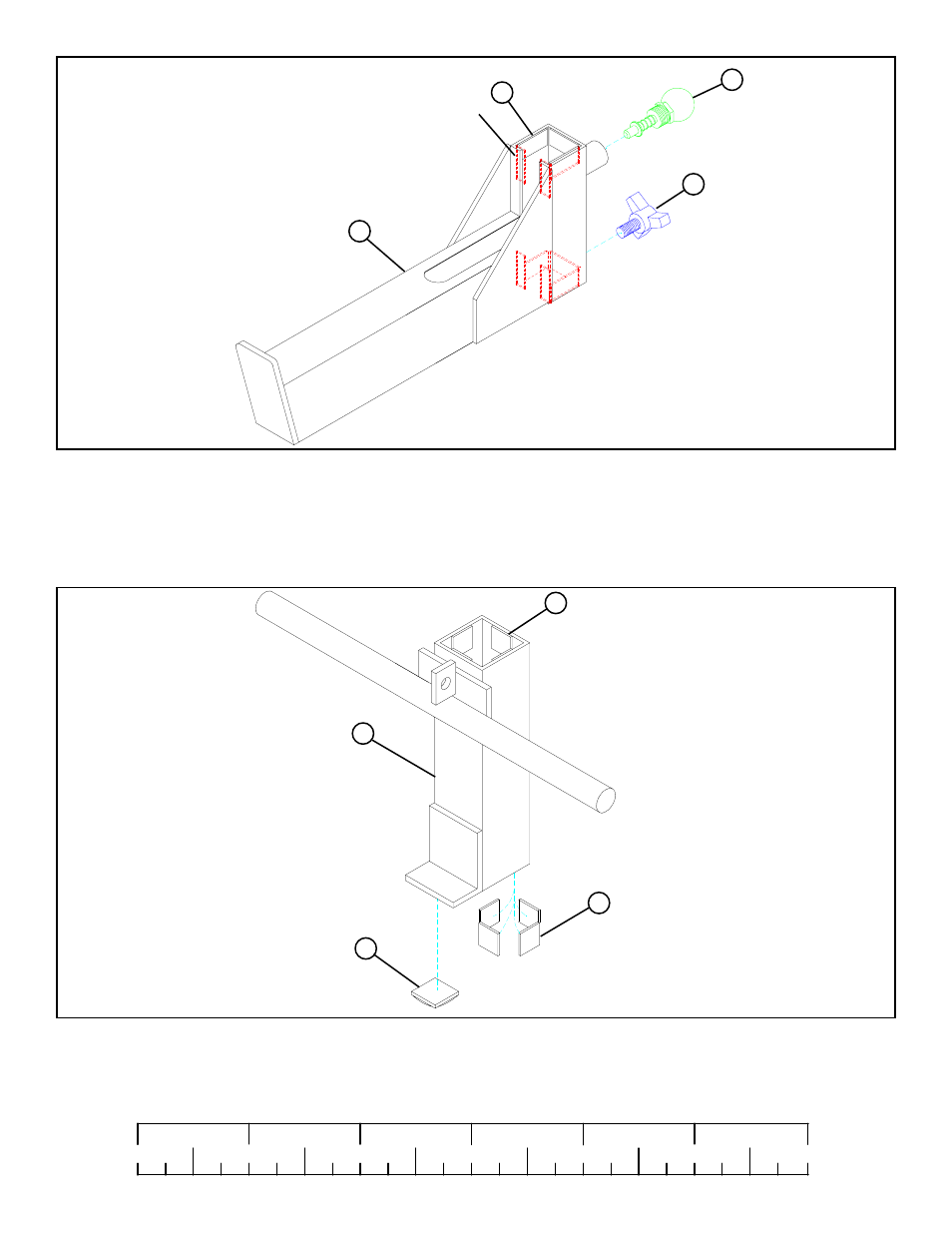

FIGURE 4
STEP 4:
• Attach ten 1-1/2 X 3/4” GLIDES (54) to both SAFETY RAILS (9) as shown in FIGURE 4.
• SECURELY assemble one SPRING PIN ASSEMBLY (40) to both SAFETY RAILS (9) as shown in FIGURE 4.
• Thread one THUMBSCREW (43) into both SAFETY RAILS (9) as shown in FIGURE 4.
FIGURE 5
STEP 5:
• Apply eight 1” SQ. GLIDES (53) to the inside of the CARRIAGE (3) as shown in FIGURE 5.
• Attach one 1-1/4” SQ. RUBBER BUMPER (51) to the bottom of the CARRIAGE (3) as shown in FIGURE 5.
43
54
40
9
TRIM EXCESS
0 1 2 3 4 5 6
1/2 1/2 1/2 1/2 1/2 1/2
53
51
53
3
