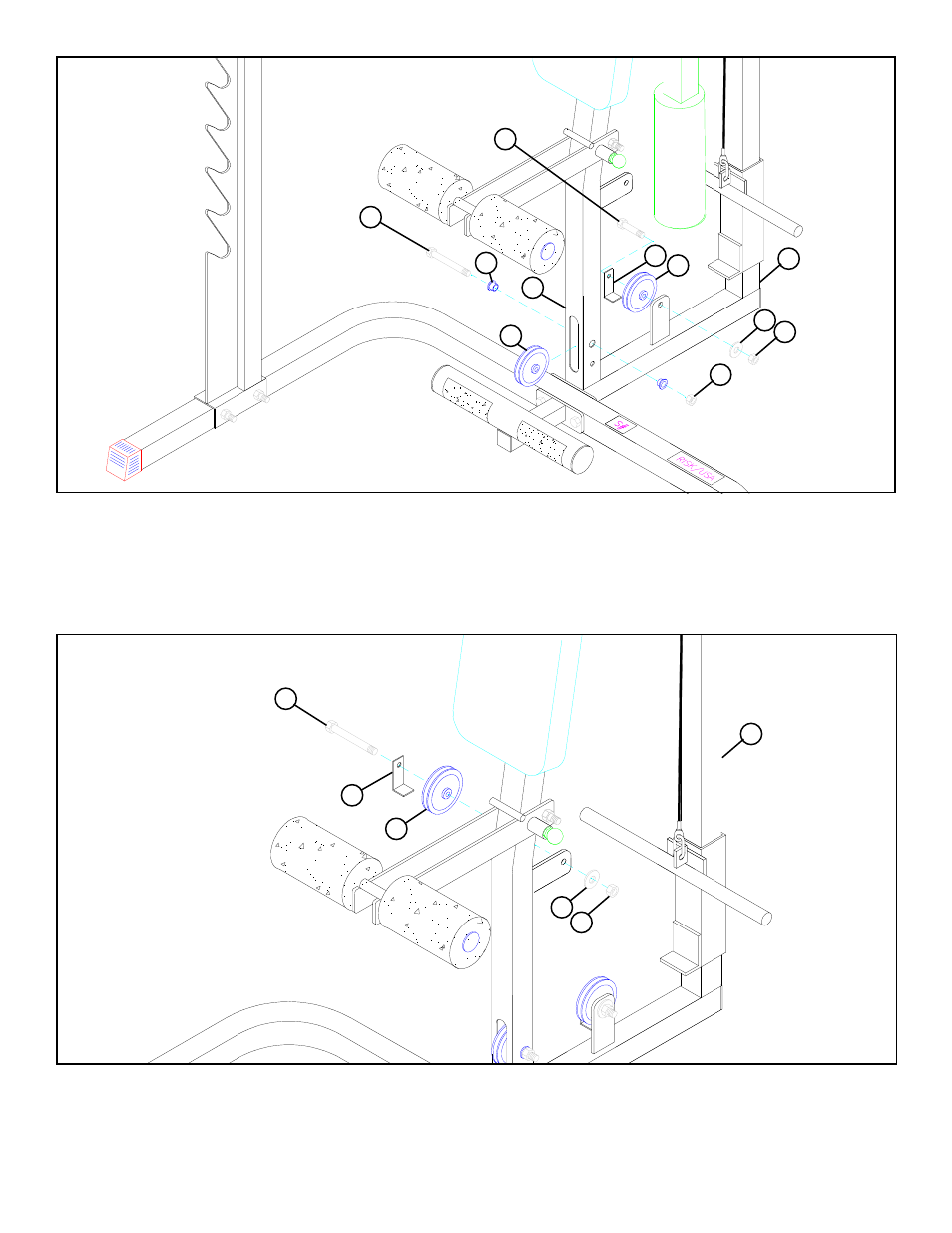

FIGURE 20

• SECURELY assemble one 3-1/2” PULLEY (23) and one CABLE RETAINING CLIP (56) to the plate on the UPRIGHT

FRAME (1) using one 3/8 X 2” BOLT (29), one 3/8” WASHER (31), and one 3/8” LOCK NUT (36). See FIGURE 20.

STEP 20:

3/8 X 2-3/4” 28

42

23

56

23

31

36

3/8 X 2” 29

1

36

15

FIGURE 21

• SECURELY attach one 3-1/2” PULLEY (23) to the plate on the UPRIGHT FRAME (1) using one 3/8 X 2” BOLT (29), one

CABLE RETAINING CLIP (56), one 3/8” WASHER (31), and one 3/8” LOCK NUT (36). See FIGURE 21

STEP 21:

• SECURELY assemble one 3-1/2” PULLEY (23) into the slot on the UPRIGHT FRAME (1) using one 3/8 X 2-3/4” BOLT (28),

two 3/8” FLANGE SPACERS (42), and one 3/8” LOCK NUT (36). See FIGURE 20.

56

23

31

36

3/8 X 2” 29

1

1
