8
Before beginning assembly, carefully read the
following information and instructions:
• Place all parts in a cleared area and remove the
packing materials from the spa shell. Do not dis-
pose of the packing materials until assembly is
completed and the spa is operating.
• During assembly, make sure that all parts are
oriented as shown in the drawings.
• Read each assembly step before you begin.
• Tighten all parts as you assemble them, unless
instructed to do otherwise.
ASSEMBLY REQUIRES THE FOLLOWING
TOOLS (not included):
• One phillips screwdriver
A wire connector is provided on the electronics
pack of the spa to connect a minimum No. 6
AWG (13.3 mm
2 ) solid copper conductor
between the spa and any metal equipment,
electrical enclosure made of metal, metal water
pipes, or conduit within five feet of the spa.
Assembly

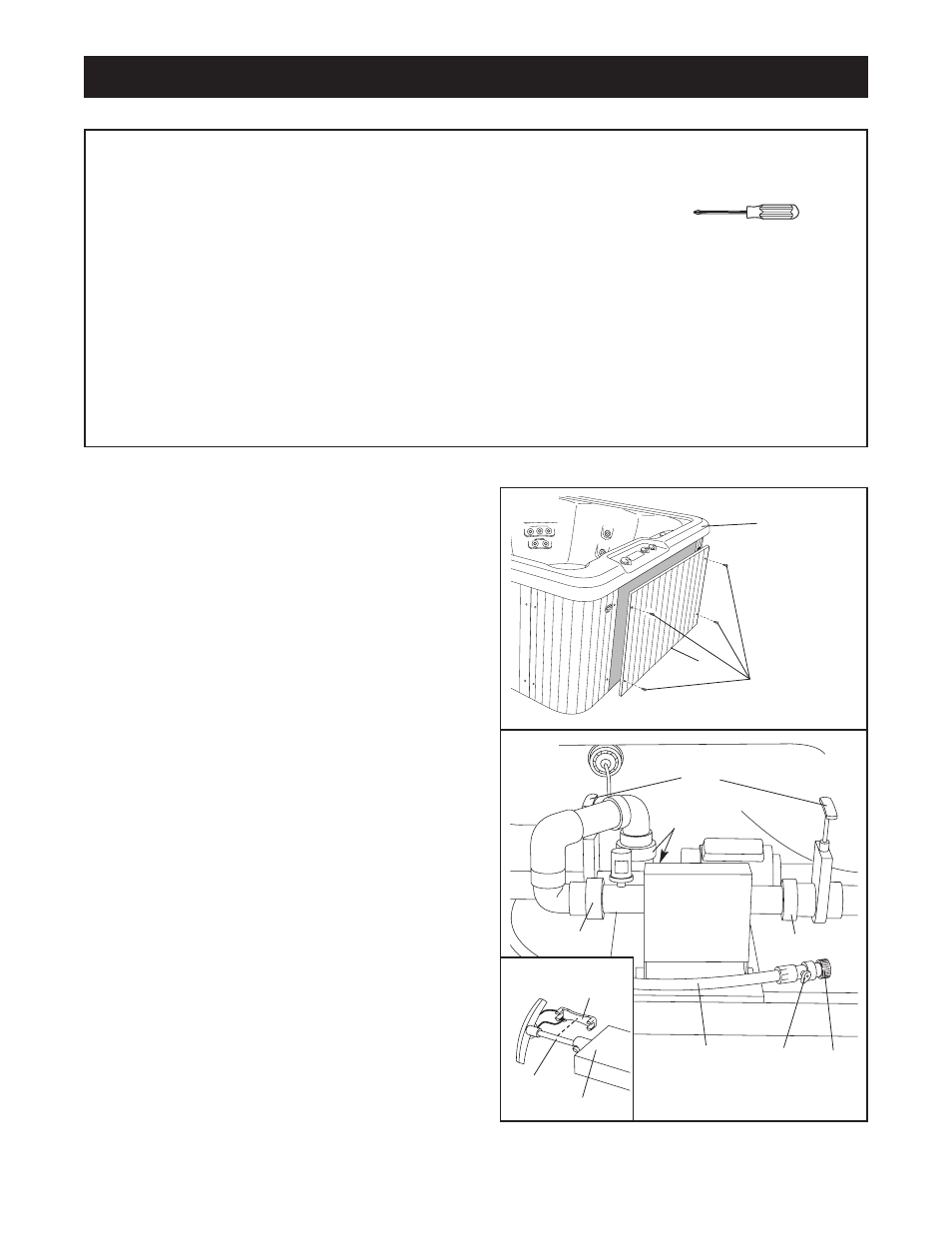

1. Before beginning assembly, make sure that you
have read and understand the information in the
box above and on the previous two pages.
Remove the four indicated #10 x 2” Sheet Metal
Screws (7). Remove the indicated Access Panel (2)
by sliding it down and then pulling the bottom away
from the spa. Be careful not to damage the spa
shell.
Collars
Collar Collar
7
2
1
2
Spa Shell
Gate Valve
Stem
Locking
Clip
Gate
Valve
Drain
Hose
Valve
Knob
Cap
2. Locate the drain hose inside of the spa. Close the
valve knob on top of the drain hose. Make sure that
the cap is fully tightened onto the end of the drain
hose.
Locate the four gate valves inside of the spa (two
are shown). Make sure that the gate valves are open
and that the locking clips are snapped onto the
stems of the gate valves. In addition, make sure that
the six collars are tight (four are shown).
See step 1. Re-attach the Access Panel (2) with the
four #10 x 2” Sheet Metal Screws (7).
