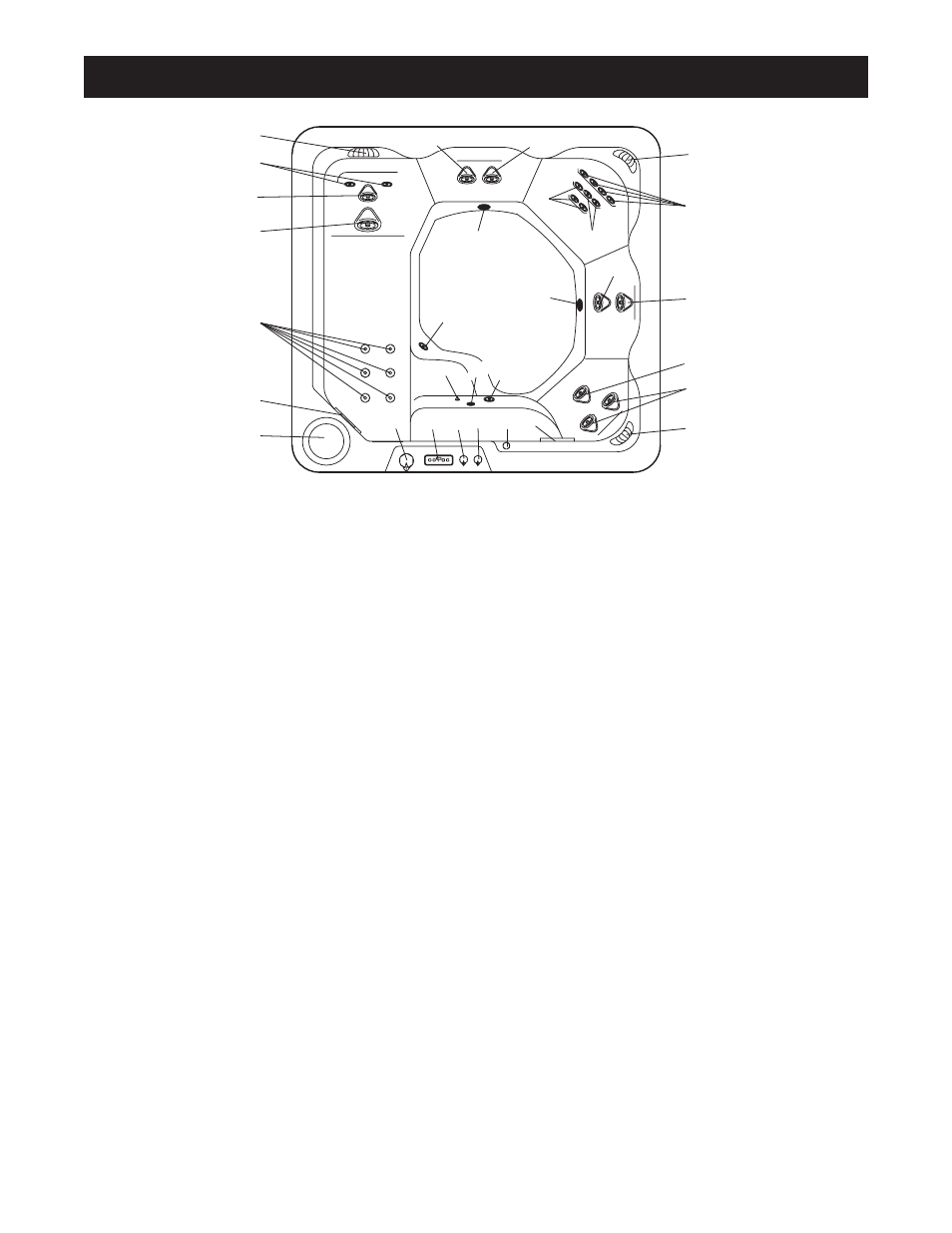

Refer to the diagram above. The function of each
component is explained below.

A. The four adjustable, directional jets can be pivot-

ed to direct their water flow. To open the jets, turn
the rims counterclockwise; to close the jets, turn
the rims clockwise. If no air flows through the jets,
turn the jets counterclockwise. Close the jets to
increase the water pressure to other jets.

B. The adjustable, pulsing jet produces a soothing,

pulsing massage action. To open the jet, turn the
rim counterclockwise; to close the jet, turn the rim
clockwise.

C. The large rotary jet features two jets of water that

provide a pulsing, spinning massage action. Turn
the jet counterclockwise to open it or clockwise to
close it.

D. The two whirly jets provide a continuous, whirling

massage action.

E. The six small adjustable, directional jets can be

pivoted to direct their water flow. Turn the rims of
the jets to open and close them.

F. The volcano jet provides a powerful foot massage.

G. An optional ozone generator can be purchased and

installed to utilize the ozone jet. Ozone provides a
way to help sanitize the spa with minimal chemical
treatment.

H. The skimmer cleans the surface of the water.

I. The temperature probe monitors water tempera-

ture.

J. The underwater light can be used for night opera-

tion (see USING THE CONTROLS on page 12).

K. The two suction vents near the floor of the spa

bring water into the pumps. Never operate the spa
without the suction covers in place.

L, M. The air controls determine the air flow to the

jets (see USING THE CONTROLS on page 12).

N. The filter can be removed for cleaning or replace-

ment (see CHECKING AND CLEANING THE FIL-
TER on page 13).

O. The console controls the jets, the light, and the

water temperature (see USING THE CONTROLS
on page 12).

P. The three pillows can be removed or turned 180°

to provide two positions of comfort.

Q. The nine medium directional jets pinpoint the

lower, middle, and upper sections of your back.

R. The waterfall valve adjusts the waterfall flow.

S. The waterfall creates a soothing sound and mas-

sage.

T. The three adjustable twin-nozzle jets produce a

pulsating hydrotherapy action.

U. The diverter knob directs the water flow (see

USING THE CONTROLS on page 12).

Spa Shell Diagram

R S
