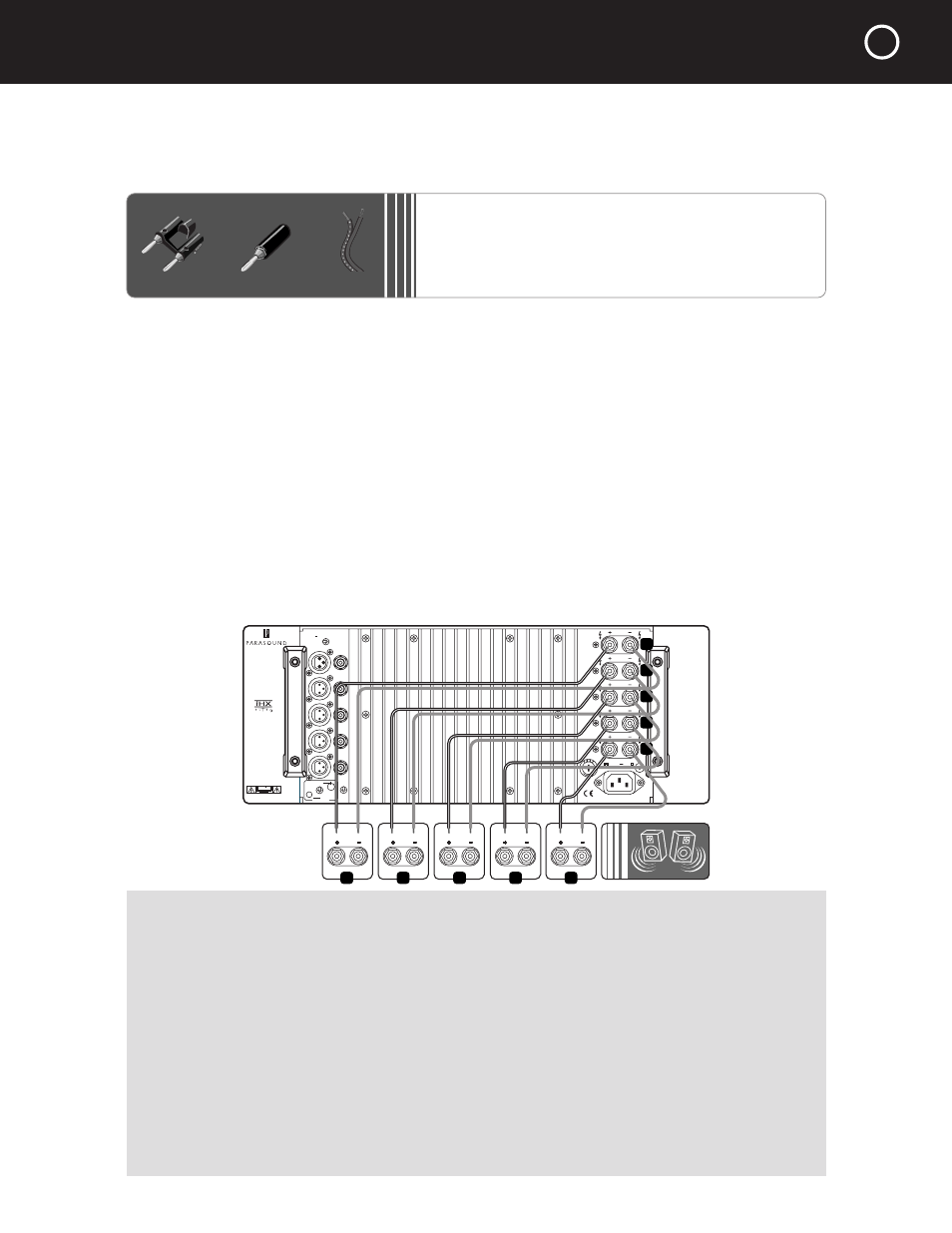

CONNECTING YOUR SPEAKERS TO THE A 51

Speaker Terminals

The A 51 speaker terminals accept speaker wires with banana plugs or bare ends. Refer to Bare Wire
Speaker Termination in the Technically Speaking section for information about bare wire termination.

What You’ll Need:

Five lengths of AWG 16 or thicker speaker wire
with banana plugs or bare ends

Five loudspeakers

Before Connecting

❑ Remove power to all the components in your audio system.

To Connect

Because the speaker terminals are very close to each other, the bare wire ends insert diagonally
into the terminal shafts. The - (negative) wires enter the black - terminals at 8 o’clock. The +
(wires) enter the red + terminals at 4 o’clock. The resulting 45 degree angles of the speaker
wires routes them outside the terminals of the channels below. It’s easier to connect speaker
wires if you start with the bottom terminals for Channel 5 and proceed upward.

1 Insert one wire with the ridge or other marking into the red Ch 5 + (positive) speaker

terminal on the A 51. Insert the wire without the ridge or other marking into the adjacent
black Ch 5 - (negative) speaker terminal on the A 51.

2 Insert the other end of the wire with the ridge or other marking to the red + (positive)

terminal on the speaker. Insert the other end of the wire without the ridge or other marking
to the adjacent black – (minus) terminal on the speaker.

3 0 Repeat steps 1 and 2 for Ch 4, then Ch 3, then Ch 2, and finally Ch 1.

5

Parasound Products, Inc.

San Francisco, CA USA

Manufactured under

license from Lucasfilm

Ltd. Lucasfilm and THX

are registered Trademarks

of Lucasfilm Ltd.

CAUTION
To Prevent Electric Shock,
Do Not Remove Cover. No
User-Serviceable Parts Inside,
Refer Servicing To Qualified
Service Personnel.

L U C A S F

I

L M

L M

A51 Amplifier

WARNING
To Prevent Fire Or Shock
Hazard, Do Not Expose This
Unit To Rain Or Moisture.

AC 115V 60Hz
AC 230V 50Hz

Power Consumption: 1800W

Input

12 V

Man

Audio

50 mV 250

Ground

Normal

Lift

Auto Turn On

Sensitivity

Fuse

T15A/250V1-115V Area

T8A/250V-230V Area

Ch 1

Ch 2

Ch 3

Ch 4

Ch 5

Balanced

Unbalanced

Input Select

9

7

5

3

1

SPEAKERS

10

8

6

4

2

YOU SHOULD KNOW

Correct Speaker Polarity is Important

Polarity refers to + and – connections. Speaker wires are coded with printing or a ridge on the
insulation on one of the leads so you know which lead was connected to the + and – terminals
at the other end. This coding will help you keep the + and - polarity consistent for all channels.

Speaker Wire Length and Gauge (thickness)

When selecting speaker wire, follow these guidelines:

• Keep the length of your speaker wire as short as possible.
• Use the thickest wire practical. For lengths greater than 50 feet, use speaker wire

with an AWG (gauge) of 14 or lower. The smaller the AWG, the thicker the wire.

• Do not use speaker wire that is thinner than 16 AWG.
• Keep wire lengths for both channels as close to equal as possible.

Stripped
AWG wire

Dual

Banana Plug

Common Speaker Connectors

Single

Banana Plug
