Panasonic CF-19 User Manual

Page 11

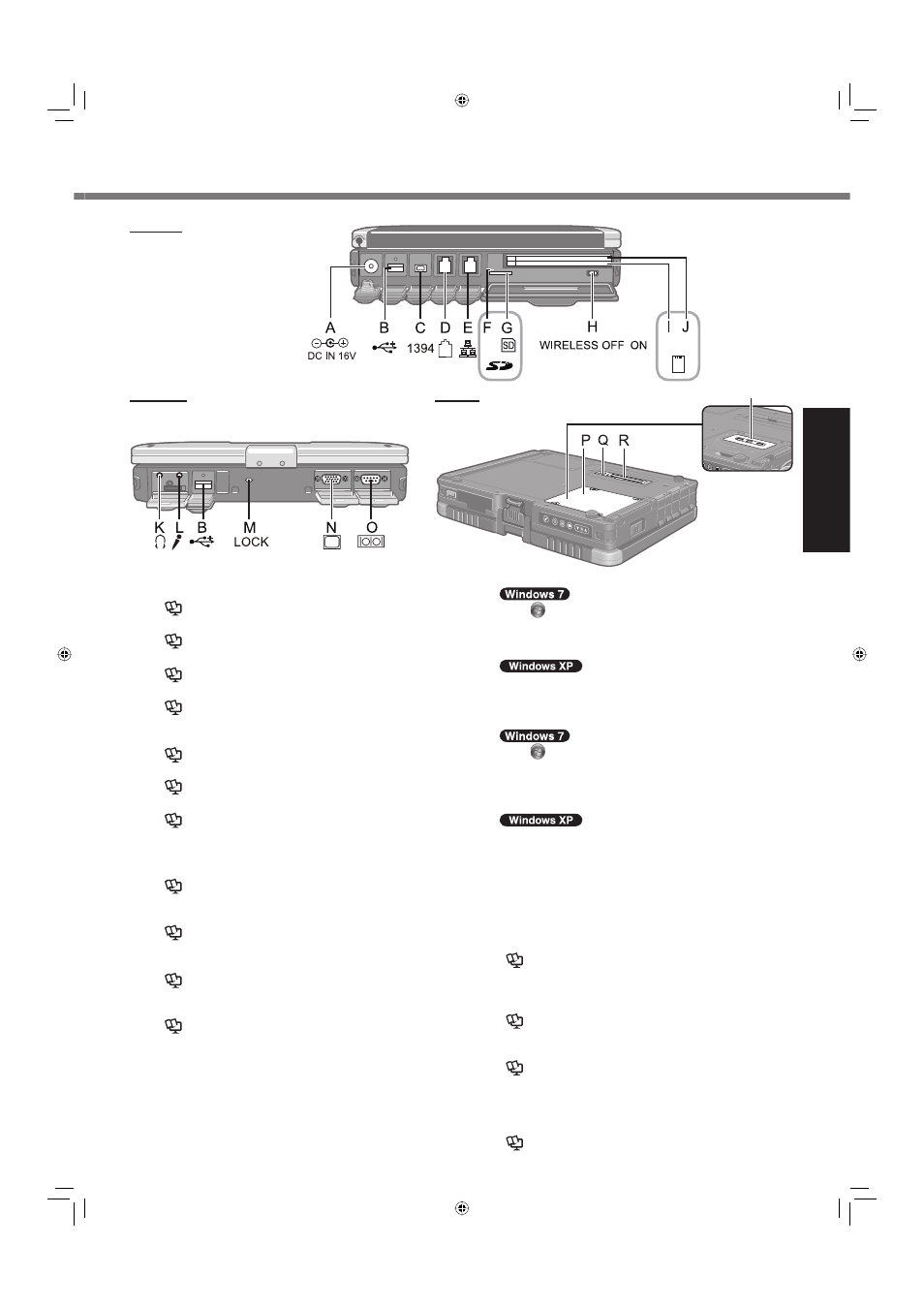

Getting Started

Left side

Rear side

Bottom

A: DC-IN Jack

B: USB Port

Reference Manual “USB Devices”

C: IEEE 1394 Interface Connector

Reference Manual “IEEE 1394 Devices”

D: Modem Port

Reference Manual “Modem”

E: LAN Port

Reference Manual “LAN”

F: SD Memory Card Indicator

(Blinking: During access)

Reference Manual “SD Memory Card”

G: SD Memory Card Slot

Reference Manual “SD Memory Card”

H: Wireless Switch

Reference Manual “Disabling/Enabling Wireless

Communication”

PC Card Slot (PC)

Reference Manual “PC Card / ExpressCard”

Smart Card Slot (SCR)

Reference Manual “Smart Card”

ExpressCard Slot (EX)

Reference Manual “PC Card / ExpressCard”

PC Card Slot (PC)

Reference Manual “PC Card / ExpressCard”

K: Headphone Jack

You can connect headphones or amplifi ed speakers.

When they are connected, audio from the internal

speakers is not heard.

L: Microphone Jack

A condenser microphone can be used. If other types

of microphones are used, audio input may not be pos-

sible, or malfunctions may occur as a result.

When recording in stereo using a stereo microphone:

Click

(Start) - [Control Panel] - [Hardware and

Sound] - [Sound] - [Recording] - [Microphone] -

[Properties], and then remove a check mark of [En-

able Audio Enhancements] in [Advanced].

Click [start] - [All Programs] - [SoundMAX] - [Control

Panel] and select [Microphone], and then add a check

mark for [No Filtering] in [Microphone Enhancements].

When using a monaural microphone with a 2-terminal plug:

Click

(Start) - [Control Panel] - [Hardware and

Sound] - [Sound] - [Recording] - [Microphone] -

[Properties], and then add a check mark for [Enable

Audio Enhancements] in [Advanced].

Otherwise, only audio on the left track will be recorded.

Click [start] - [All Programs] - [SoundMAX] - [Control Pan-

el] and select [Microphone], and then add a check mark

for [Voice Recording] in [Microphone Enhancements].

Otherwise, only audio on the left track will be recorded.

M: Security Lock

A Kensington cable can be connected.

For further information, read the manual that comes

with the cable.

N: External Display Port

Reference Manual “External Display”

O: Serial Port

P: RAM Module Slot

Reference Manual “RAM Module”

Q: External Antenna Connector

R: Expansion Bus Connector

Reference Manual “Port Replicator / Car Mounter”

S: Camera

Remove the protection seal on the camera before us-

ing the camera.

Reference Manual “Camera”

with Camera>

without Camera>
