INSTALLATION
Removing the unit

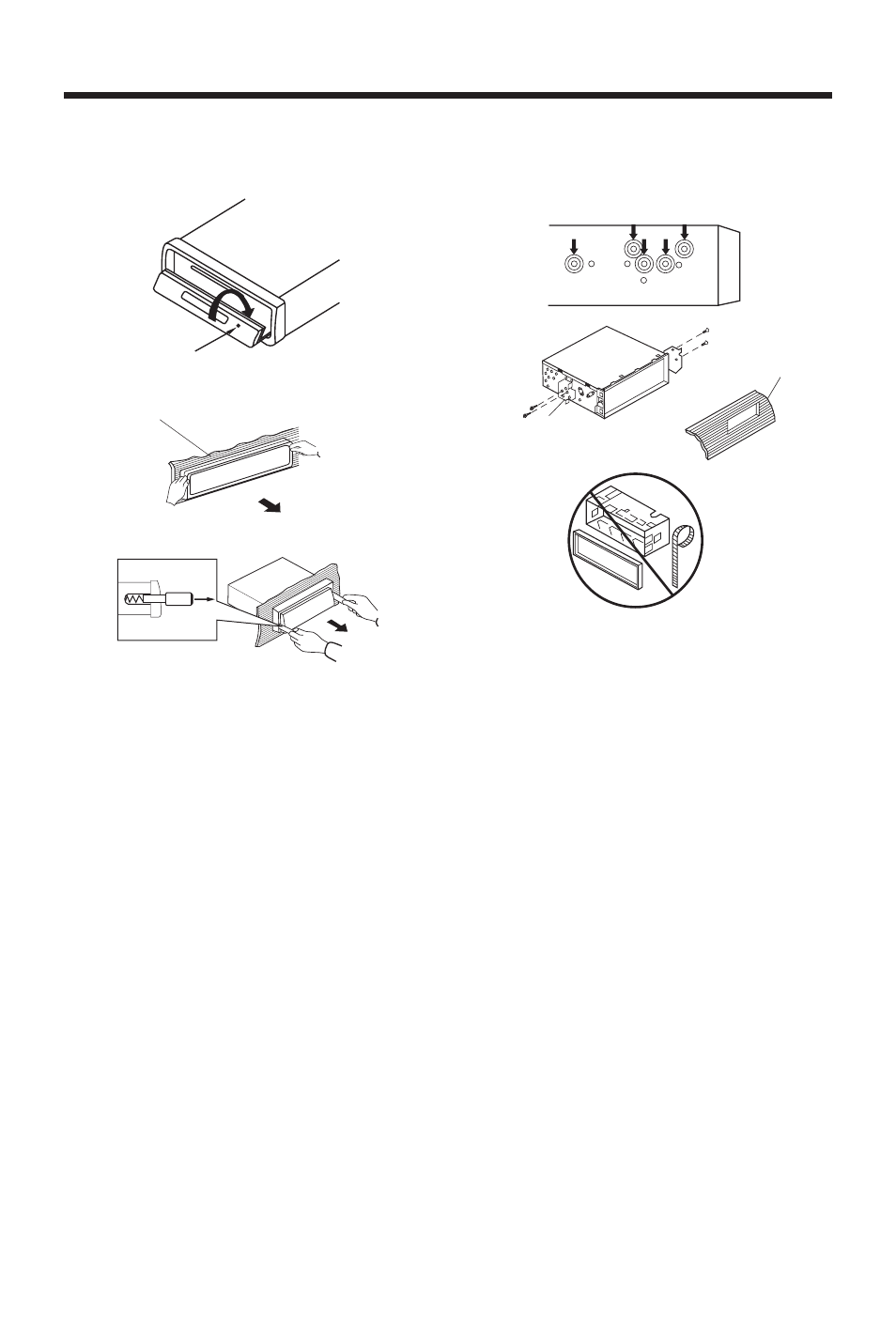

1. Before removing the frame, press the
OPEN/CLOSE button to slide down
the front panel.
2. Frame
3. Insert fingers into the groove in the
right side of the frame and pull out to
remove the frame. (You can also
remove the frame from the left side.)
4. Lever
After removing the frame, press the
OPEN/CLOSE button again to slide
up the front panel. Then insert the
levers supplied with the unit into the
grooves at both sides of the unit as
shown in figure until they click.
Pulling the levers makes it possible to
remove the unit from the dashboard.
DIN REAR-MOUNT (Method B)
Installation using the screw holes on the
sides of the unit.
Fastening the unit to the factory radio
mounting bracket.
1. Select a position where the screw
holes of the bracket and the screw
holes of the main unit become aligned
(are fitted), and tighten the screws at
2 places on each side.
Use either truss screws (5 x 5mm),
depending on the shape of the screw
holes in the bracket.
2. Screw
3. Factory radio mounting bracket
4. Dashboard or Console
Note: The mounting box, outer trim ring,
and half-sleeve are not used for method
B installation.
