3
IntelliChlor Electronic Chlorine Generator Installation and User’s Guide

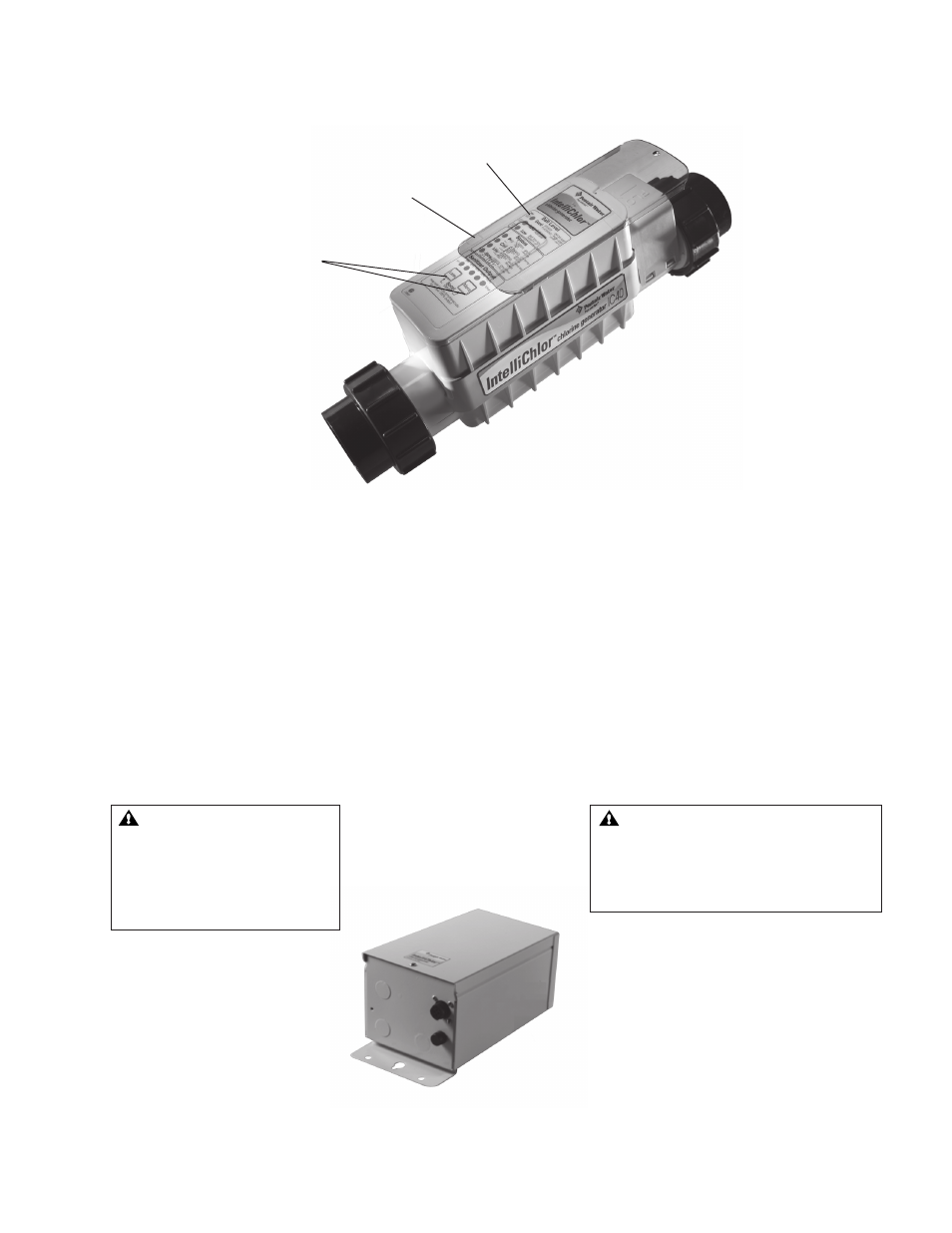

IntelliChlor Electronic Chlorine Generator
Clear sliding
cover
Control Panel
status LEDs
MORE and LESS
output buttons
IntelliChlor Power Center
The IntelliChlor Power Center converts AC electrical current to a low-voltage DC electrical current which is
required to produce chlorine. The power supply is connected with the pool circulation pump electrical source
so that the IECG only operates when the pool pump is on. The Power Center should be mounted vertically on
the wall up to fifteen (15) feet away from the IECG. The Power Center contains the transformer, fuse,
connector to the cell and the AC electrical current wiring configuration with the DC electrical current output
cable to the IECG. A fuse holder is mounted on the bottom of the Power Center for additional protection.
There are no other controls or lights on the Power Center. For information about installing and proper use of
the Power Center, see the “IntelliChlor Power Center Installation Guide,” (P/N 520590).
IntelliChlor Power Center (Model PC 100)
CAUTION - The IntelliChlor
Power Center does NOT control
the pump. The IntelliChlor
Electronic Chlorine Generator
only produces chlorine when the
pool pump is on. CAUTION - Before plugging or
unplugging the IntelliChlor Electronic
Chlorine Generator to the Power Center,
first switch off the AC power to the Power
Center.
