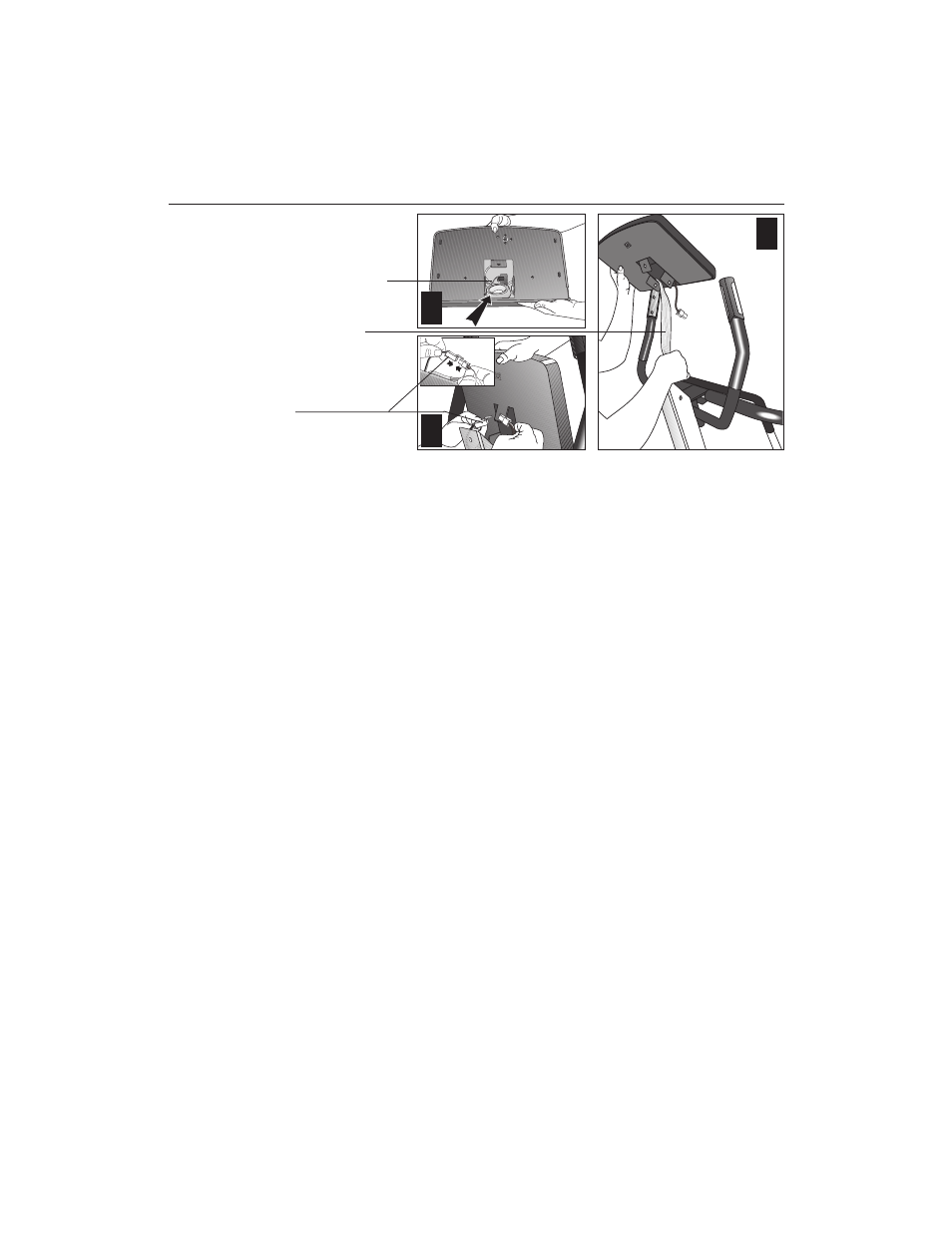

Diagram 9 Attach the display
console.
1
2
3
Cables found in back of
the display console.
Route the ribbon
cable through the
upper column.
Connect the heart rate
cable.
16. Attach the display console by taking the following steps:
a. Gently unwrap the cables found in the back of the display console.
Diagram 9, #1.
b. Hold the display console above the upper column and route the ribbon
cable down through the column and out its base. Diagram 9, #2.
c. Carefully lower the display onto the upper column so that your assistant
can connect the heart rate cables. Diagram 9, #3. Gently place any
excess cable into the opening on the back of the display console.
Important: Be sure not to crimp or pinch the cables. Damaged cables
are not covered by the Precor Limited Warranty.
