C O M M E R C I A L P R O D U C T S D I V I S I O N

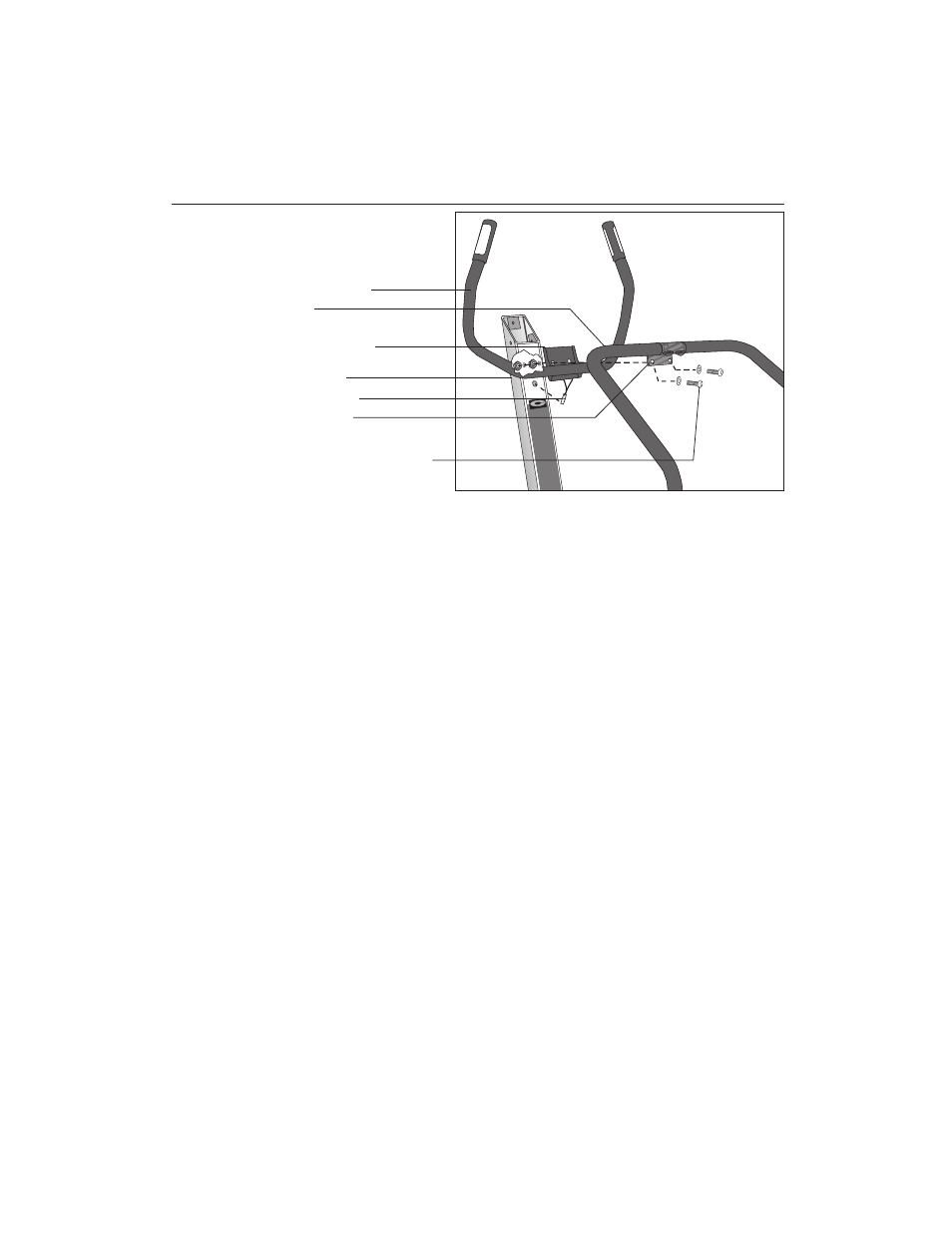

Diagram 8 Secure the handlebar bracket
and handrail clamp to the
upper column.
13. Align the holes in the handlebar bracket and the holes in the handrail clamp
with the two holes in the upper column. Diagram 8. Insert the two screws with
washers that were removed in step 5.
14. Replace the nylon-end nuts (removed in step 5) onto the end of the screws.
Finger tighten the nuts while you hold the screws with a 3/16-inch hex key.
Secure each nut by grasping it with a 1/2-inch box-end wrench (or crescent
wrench) and tightening the screws with the hex key. Refer to Diagram 8.
15. Secure the handrails to the base assembly. Return to the lower handrail
mounts and securely tighten the two screws (F). Hold onto the locknut (G)
with a
⁷ ₁₆-inch box-end wrench and tighten the screws using the appropriate
hex key. Slide the handrail boot down over the screw and locknut. Refer to
Diagram 5.
Vertical handlebar
Handrail
Handlebar bracket
Heart rate cable
Upper column
Handrail clamp
Reinsert screws and
washers removed in step 5.
