6 power-up, 7 front panel indicators, Db-9 pin configuration for rs-232 port – Philips DVAA Series User Manual
Page 6: Hard drive status indicators (green lights)

5

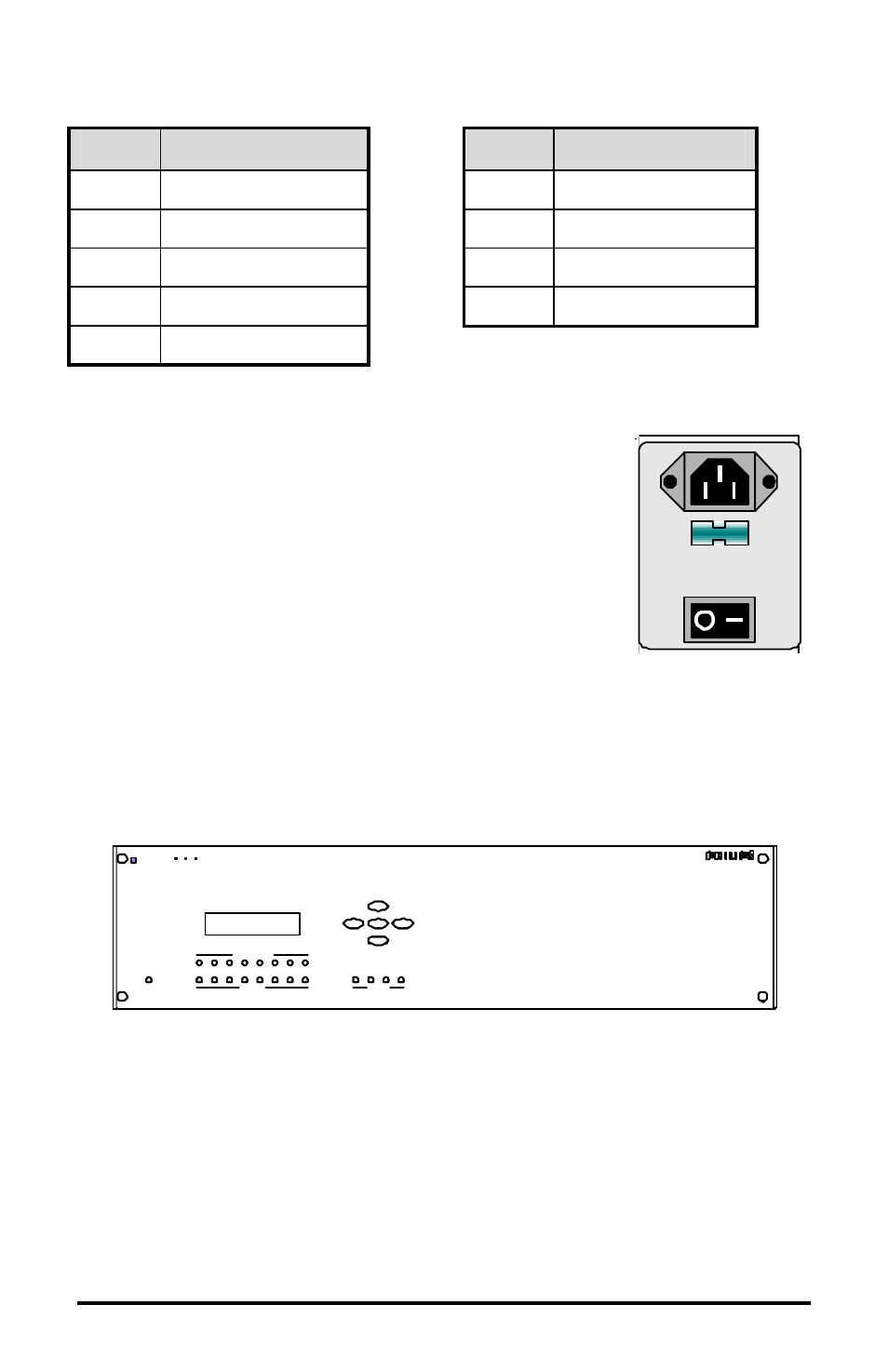

DB-9 Pin Configuration For RS-232 Port
Pin
Use
Pin
Use
1
DCD
6
Not Connected
2
RX
7
RTS
3
TX
8
CTS
4
Not Connected
9
Not Connected
5
Ground
1.6 Power-Up
Select the correct voltage before supplying power to
the unit.
Use the voltage selector switch located on the rear panel
of the unit, between the power connector and the On/Off
Switch.
Caution: Applying incorrect voltage could damage unit.
Once the correct voltage has been selected and all
connections have been made, apply power to the unit.
1.7 Front Panel Indicators
ACTIVITY
P O W E R
1
2
3
4
5
6
7
8
LINK
READ
WRITE
1 0 0
ETHERNET
HARD DRIVE STATUS
Disk Array
Hard Drive Status Indicators (Green Lights)
Light On: Drive present and operating.
Light Flashing: Drive present, error detected.
Light Off: No drive present, or drive damaged beyond recognition.
