Panasonic CT-L1400 - Manual (Page 11)

11
ANT DC IN 15V
L
R AUDIO
1 INPUT
VIDEO
S-VIDEO
L
R AUDIO
2
VIDEO
S-VIDEO
L
R AUDIO
COMPORNENT VIDEO INPUT
VIDEO
PB
Y
PR
L
R
AUDIO
1
INPUT
VIDEO
S-VIDEO
L
R
AUDIO
2
VIDEO
S-VIDEO
L
R
AUDIO
COMPORNENT VIDEO INPUT
VIDEO
P B
Y
P R
Audio
OUT L R
S-Video
OUT
Video
OUT
COMPONENT
VIDEO cable
VIDEO GAME CONSOLE
Audio
OUT L R
S-VIDEO cable
VIDEO cable
AUDIO cable
COMPONENT VIDEO OUT
AUDIO
cable
VIDEO GAME CONSOLE
CAMCORDER

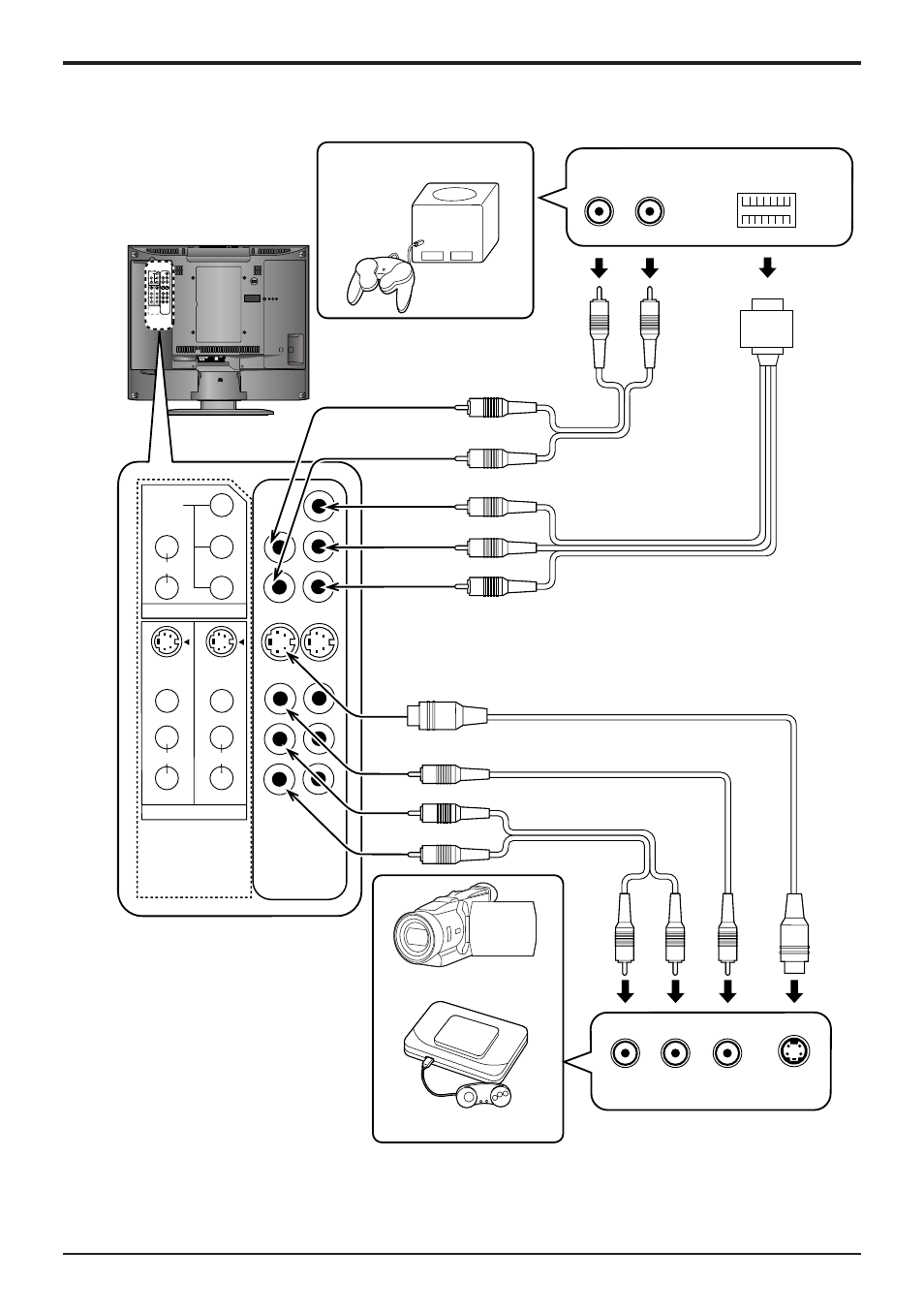

Connections
Connect CAMCORDER and VIDEO GAME CONSOLE
Notes:
•
When connecting video cables, priority is given to the S-Video cable when the S-Video input terminal
and the video input terminal are connected at the same time.
•
Please make inquiries to the VIDEO GAME PLAYER manufacture concerning component cables to
connect with video games.
