Chapter 2
7

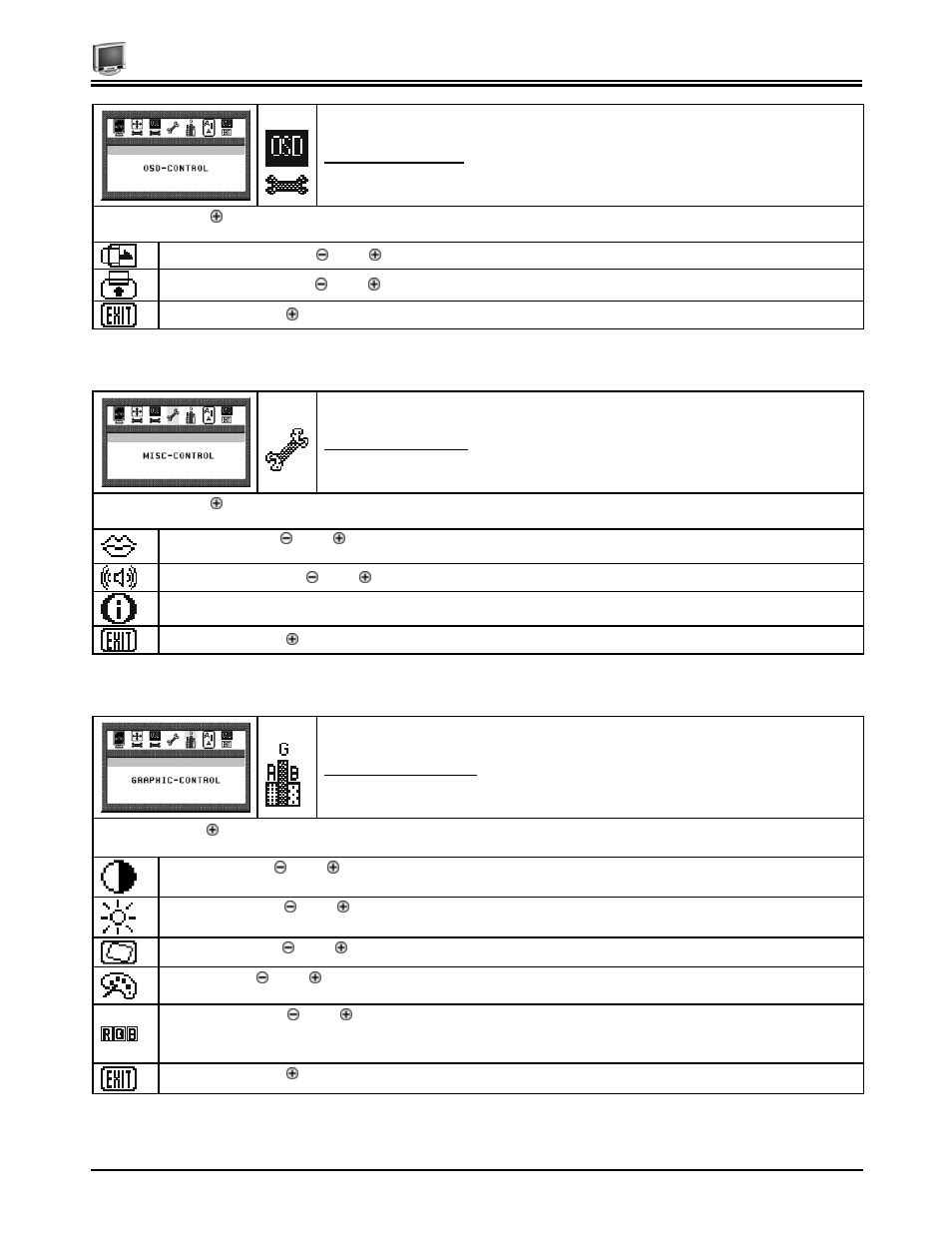

OSD - Control Option
Pressing the Adjust key while the OSD Control icon is selected activates the OSD Control submenu. Use the
◄Function►
select
buttons to scroll between the submenu items.
OSD-H-Position: Press the Adjust buttons to horizontally move the OSD menu.
OSD-V-Position: Press the Adjust buttons to vertically move the OSD menu.
Exit: Press the Adjust button key to exit the OSD-Control submenu.
Misc. - Control Option
Pressing the Adjust key while the Misc Control icon is selected activates the Misc Control submenu. Use the
◄Function►
select
buttons to scroll between the submenu items.
Language: Press the Adjust buttons to select the desired OSD display language. Languages supported: English, German,
French, Spanish, and Italian.
Audio Volume: Press the Adjust buttons to increase or decrease the volume of the monitor speakers.
Information: The Information submenu displays the current resolution, vertical refresh rate, and monitor firmware version.
Exit: Press the Adjust button to exit the Misc-Control submenu.
Graphic Control Option
Pressing the Adjust key while the Graphic Control icon is selected activates the Graphic Control submenu. Use the
◄Function►
select
buttons to scroll between the submenu items.
Contrast: Press the Adjust buttons to adjust the difference between the lightest and darkest areas on the display. The
contrast level can range from 0 to 63.
Brightness: Press the Adjust buttons to adjust the intensity of the monitor backlight.
Sharpness: Press the Adjust buttons to select the desired sharpness setting.
Color: Press the Adjust buttons to select the desired color temperature setting. The available options are CIE coordinate
values 9300°, 6500°. Selecting the USER option, allows for customization of the Red, Green and Blue color coordinates.
R, G and B: Press the Adjust buttons to make individual adjustments to the Red, Green, and Blue coordinates for the
customized color temperature. There are 127 levels of adjustments (0 - 127) available.
Before adjusting these fields, you must select the User option in the Color submenu.
Exit: Press the Adjust button to exit the Graphic-Control submenu.
