Bottom View (Descriptions):
1. Brightness control dial
2. USB port (Type A, accessible from the front) for connecting a peripheral
device
3. Volume control dial
4. Speaker (on each side)
5. USB port (Type A, accessible from the front) for connecting a peripheral
device
6. USB port (Type B) for connecting the touchscreen to the remote
computer
7. VGA Signal Input
8. 12 VDC Power Input
9. Power Interrupt Connector
10. Audio Input (3.5mm jack plug)

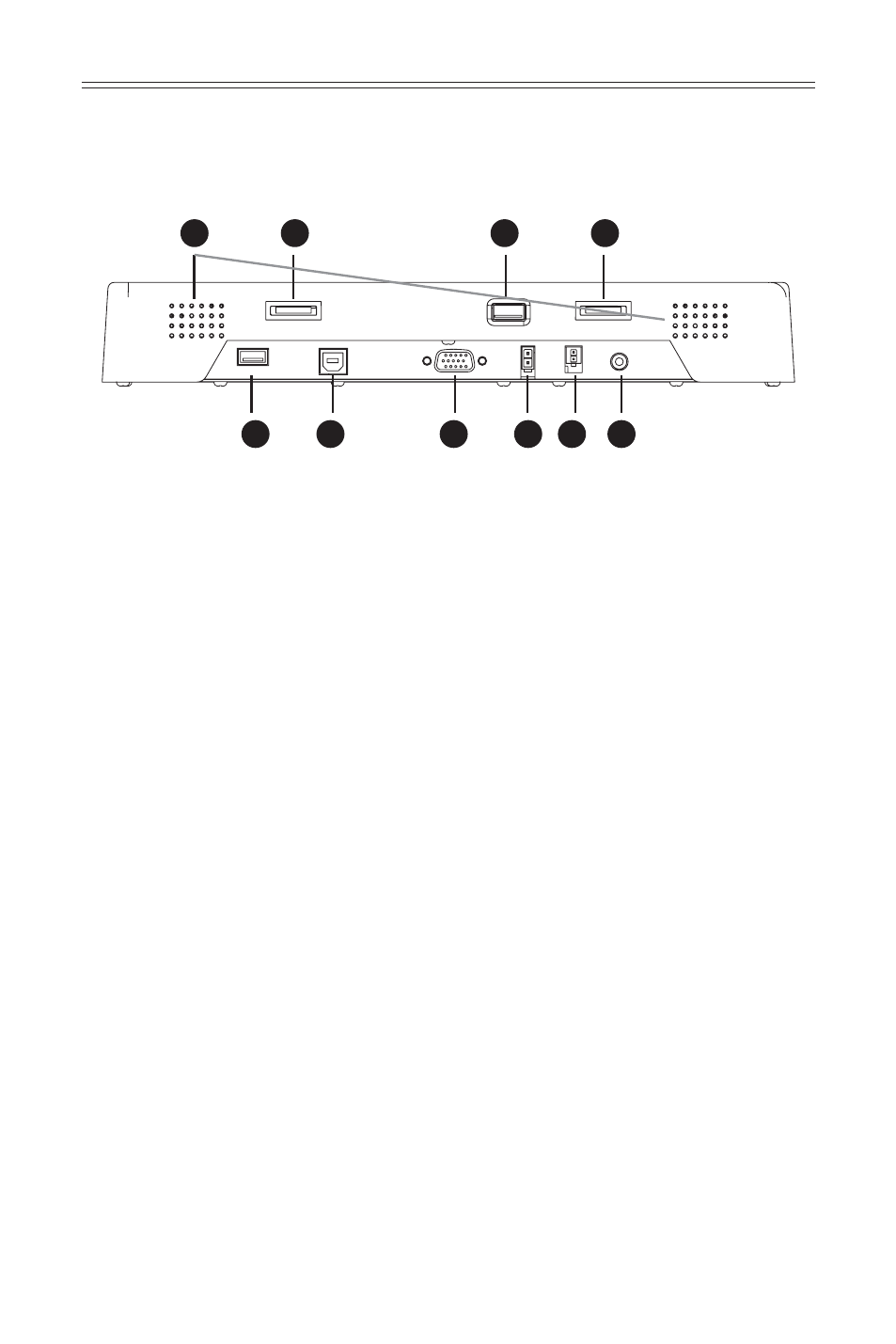

Bottom View:
1 2 3 4
5 6 8 7 9 10
