KNOW YOUR TILLER
READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TILLER.

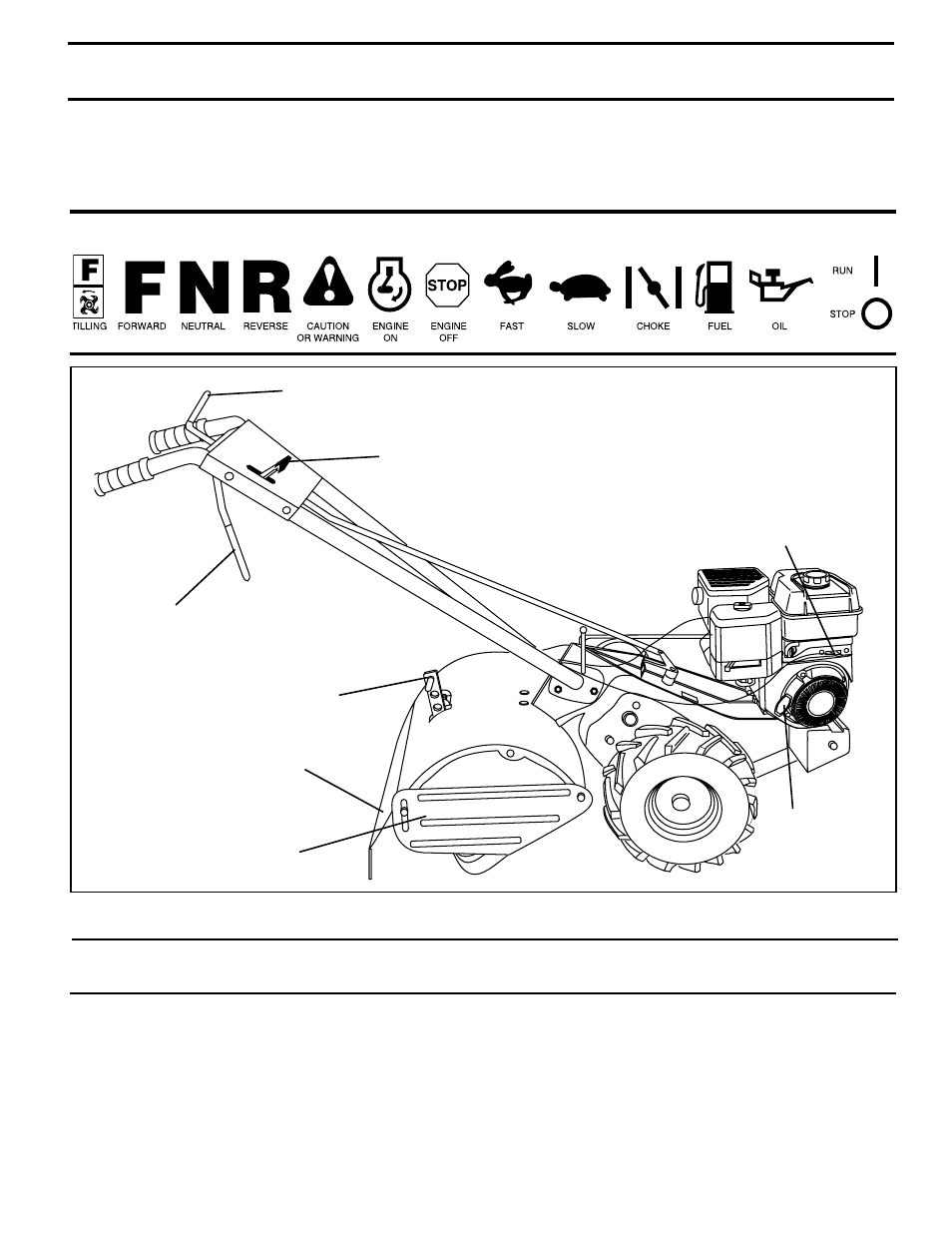

Compare the illustrations with your tiller to familiarize yourself with the location of various controls and adjustments. Save
this manual for future reference.
These symbols may appear on your Tiller or in literature supplied with the product. Learn and understand their
meaning.
SHIFT LEVER
CHOKE CONTROL
DEPTH STAKE
RECOIL
STARTER
HANDLE
OUTER SIDE
SHIELD
LEVELING
SHIELD
DRIVE
CONTROL
BAR
THROTTLE CON TROL
FIG. 8
MEETS ANSI SAFETY REQUIREMENTS
Our tillers conform to the safety standards of the American National Standards Institute.
THROTTLE CONTROL - Used to con trol engine speed.
DRIVE CONTROL BAR - Used to engage tiller.
DEPTH STAKE - Controls depth at which tiller will dig.
LEVELING SHIELD - Levels tilled soil. OUTER SIDE SHIELD - Adjustable to protect small plants
from being buried.
SHIFT LEVER - Used to shift transmission gears.
RECOIL STARTER HANDLE - Used to start the engine.
CHOKE CONTROL - Used when starting a cold engine.
