21
REPAIR PARTS
TILLER - - MODEL NUMBER MRT500 (MXR500Q)

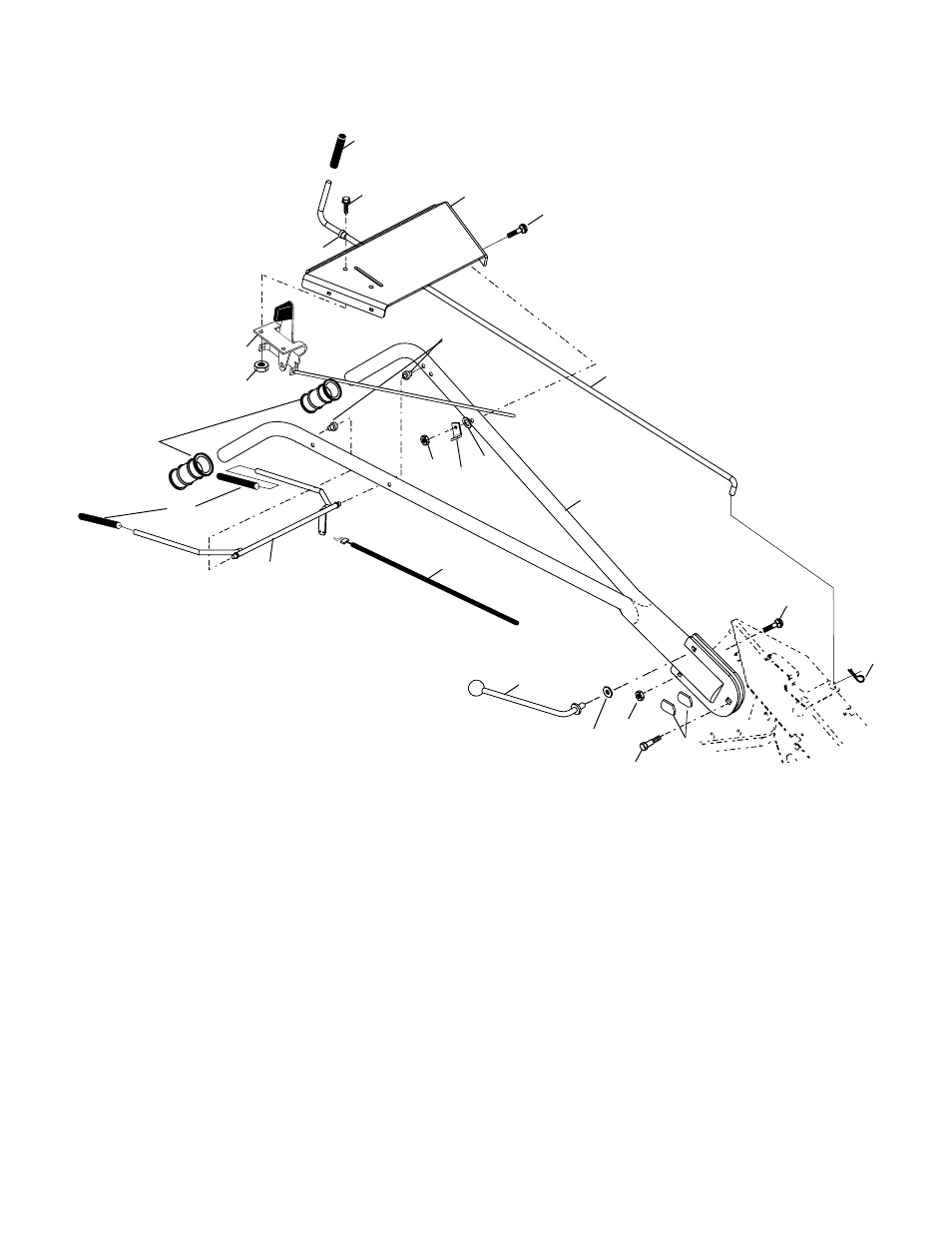

HANDLE ASSEMBLY
KEY PART
NO. NO. DESCRIPTION
41
15
21
26
20
19
18
31
16
11
17
39
34
38
35
36 8
42
10
1
29
4
2
37
handle_assy_21
KEY PART
NO. NO. DESCRIPTION
1 180634 Control, Throttle
2 150744 Grip, Handle
4 159227 Bar, Control
8 71191008 Screw, Pan Hd. #10-24
10 8389J Grip, Handle
11 4497H Clip, Hairpin
15 108281X Rod, Shift
16 72110608 Bolt, Carriage 3/8-16 x 1 Gr. 5
17 109229X Lock, Handle
18 73680600 Nut Crownlock 3/8-16 Unc
19 19131611 Washer 13/32 x 1 x 11 Ga.
20 109228X Lever, Lock, Handle
21 150217 Handle
26 159232 Cable, Clutch 29 73731000 Nut, Keps #10-24 Unc
31 150696 Bolt, Pivot
34 145821 Bracket, Clutch Cable
35 146480 Grommet, Handle
36 180456X505 Bracket, Handle
37 102604X Grip, Bar Control
38 73800500 Locknut 5/16-18
39 10040500 Washer, Lock 5/16
41 72110514 Bolt, Carriage 5/16-18 x 1-3/4
42 121248X Bushing, Snap
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
