10
RQ
TX02
10
Quick Start
Gu
ide
Getting S
tarted
≥ Keep loose antenna cables away from other wires and cables.
step 3 Connections (continued)
Main unit
AM ANT
EXT
LOOP
FM ANT
(75 )
LOOP ANT GND
3

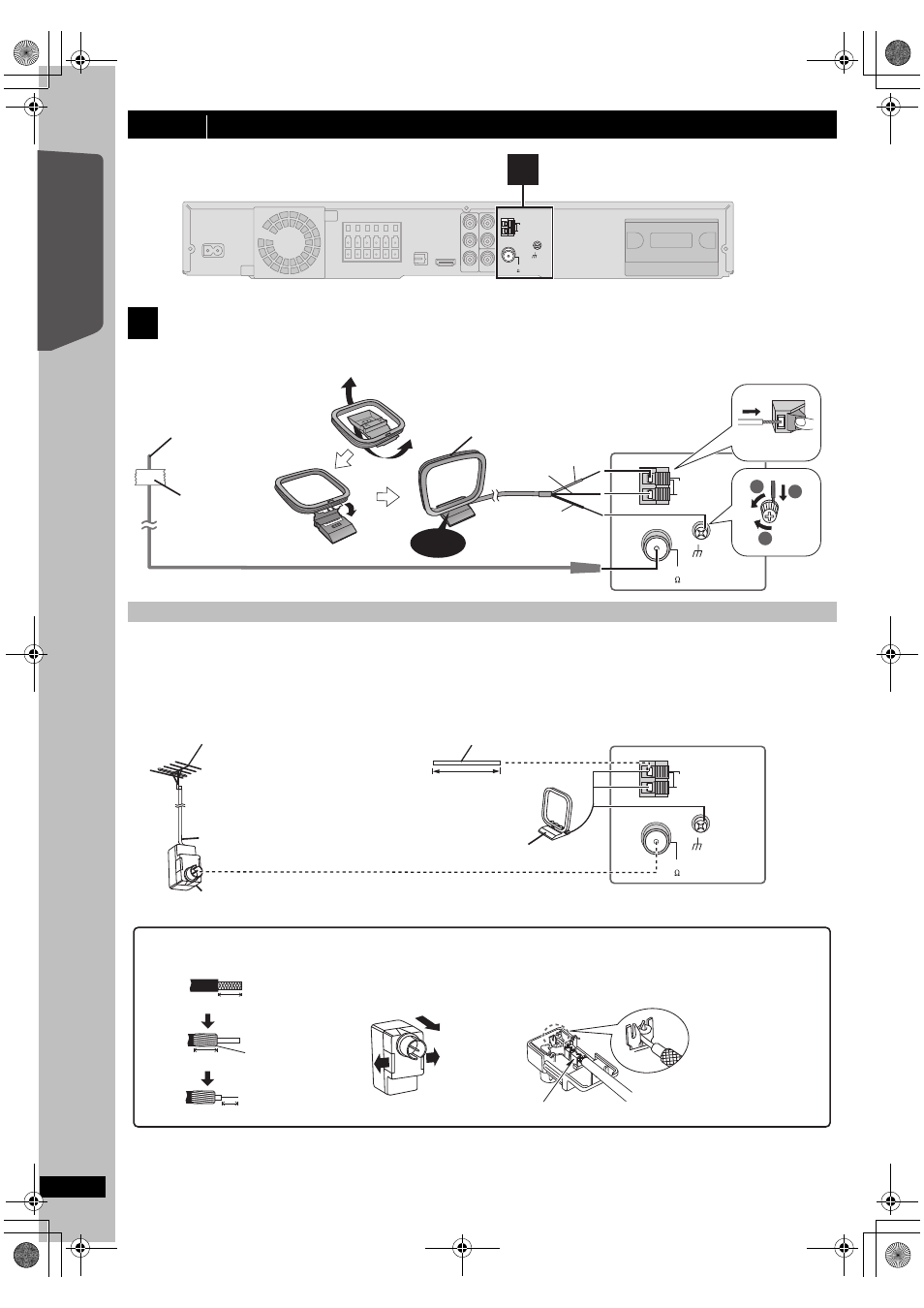

3 Radio antenna connections
Using an FM/AM outdoor antenna (optional)
AM ANT
EXT
LOOP
FM ANT
(75 )
LOOP
ANT GND
Main unit
Push!
Click!
Red
White
Black
Adhesive
tape
1
3
2
[AM\loop\antenna]
(included)
Stand the antenna up on its base.
Place the antenna where reception is best.
[FM\indoor\antenna]
(included)
Affix this end of the antenna where
reception is best.
AM ANT
EXT
LOOP
FM ANT
(75 )
LOOP
ANT GND



Leave the AM loop
antenna connected.
AM outdoor antenna
[Using a vinyl wire (not included)]
Run a piece of vinyl wire horizontally across a
window or other convenient location.
5.0 m to 12 m
(16 ft to 39 ft)
FM outdoor antenna
[Using a TV antenna (not included)]
The antenna should be installed by a
competent technician.
75 ≠ coaxial cable §
(not included)
Antenna plug (not included)
Use outdoor antenna if FM/AM radio reception is poor.
≥ Disconnect the antenna when the unit is not in use.
≥ Do not use the outdoor antenna during an electrical storm.
1 Remove a piece of the outer
vinyl insulator.
2 Carefully pull the tabs apart
to remove the cover.
3 Install the coaxial cable.
Clamp the cable conductor, and
wind it around so that it does not
contact anything else.
7 mm ( 9 / 32
z)
Peel back
4 Attach the cover.
Clamp with pliers.
10 mm ( 13 / 32
z)
§ Rework your outdoor antenna’s 75 ≠ coaxial cable as follows.
10 mm ( 13 /
32
z)
Main unit
