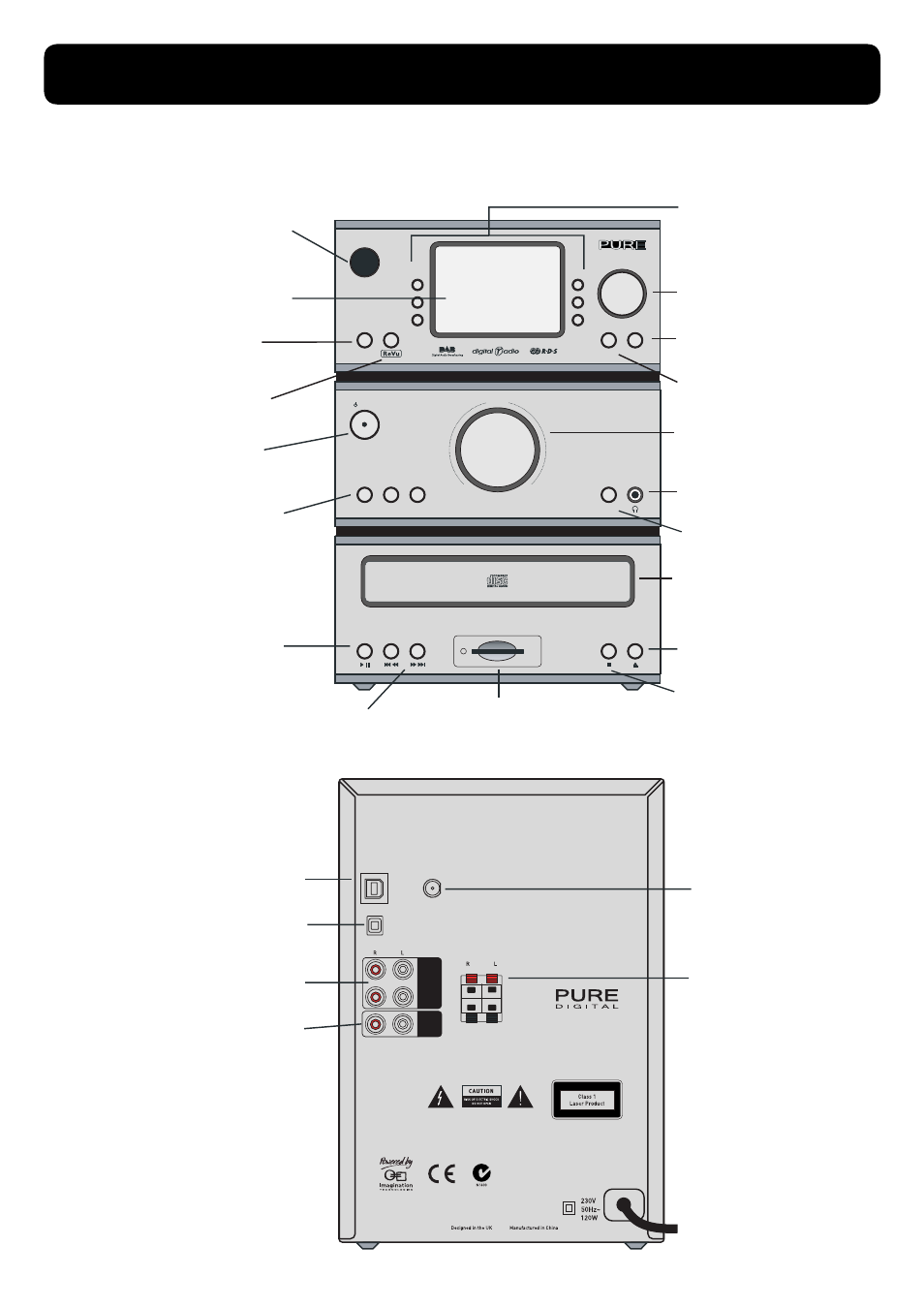

Overview diagrams
These diagrams show the function of controls, the connectors on the rear panel, the remote control and screen icons.
Getting started
POWER
RECORD INFO MENU
TUNE/ SELECT
D M X - 5 0
M I C R O S Y S T E M
MUTE CD/SD DAB/FM
- +
AUX 1/2
VOLUME
SD MEMORY CARD
Six shortcut buttons
Provide quick access to radio presets,
CD/MP3 controls and menu options
LCD screen
Backlit LCD screen with
variable contrast
and brightness
CD tray
For audio and MP3 CDs
CD eject button
Opens and closes the CD tray
POWER
Switches between
on and standby
INFO
Switch between display modes
and exit menus
ReVu
Enters ReVu mode for
DAB pause and rewind
VOLUME
Turn for volume
Mode buttons
Switch between
DAB/FM, CD/SD card
and AUX 1/2 inputs
MENU
Change audio and general
setup options
Headphone
3.5 mm headphone
socket (mutes speakers)
Infrared receiver
Receives signal
from remote control
TUNE/SELECT
Turn to browse and push to select
stations, tracks and menu options
SD MEMORY CARD
Slot for SD card removable MP3 storage.
Light shows when recording or accessing card via USB.
STOP
Stop playback
of CD or SDcard.
Skip/Fast forward/Rewind
Press to skip to next/previous CD/SD track.
Hold to fast forward or rewind through the current track.
Play/Pause
Toggle play/pause of
CD or SD track.
RECORD
Starts and stops record
of DAB radio to SD card
MUTE
Mutes output from
speakers/headphones
SPEAKERS
Spring loaded speaker connectors
Connect red socket to red on speaker
and black socket to black on speaker
USB
Type B connector
for software upgrades
and SD card access
AUX 1/AUX 2
Stereo inputs from
iPod/minidisc etc.
OPTICAL OUT
Digital output of
DAB, FM, CD or SD
AERIAL
F-type connector
for DAB/FM aerial.
Unscrew aerial cap and remove
to access.
Power Lead
LINE/SUB OUT
Configurable output giving
fixed volume output for
connection to an external
amplifier or recorder or
variable for connection to
a powered subwoofer.
See page 17 for details.
DO NOT EXPOSE TO RAIN OR MOISTURE
AUX 1
AUX 2
LINE
OUT
AERIAL
USB
OPTICAL OUT
AUX IN 2
AUX IN 1
LINE/SUB
OUT
SPEAKERS
Rear panel
Front panel
