Connections – Palsonic TFTV665UBK User Manual
Page 13
Connections
(continued)
11
Video cable
Audio cable
Cables are often colour-coded
to connectors. Connect red to
red, white to white, etc.
DVD player

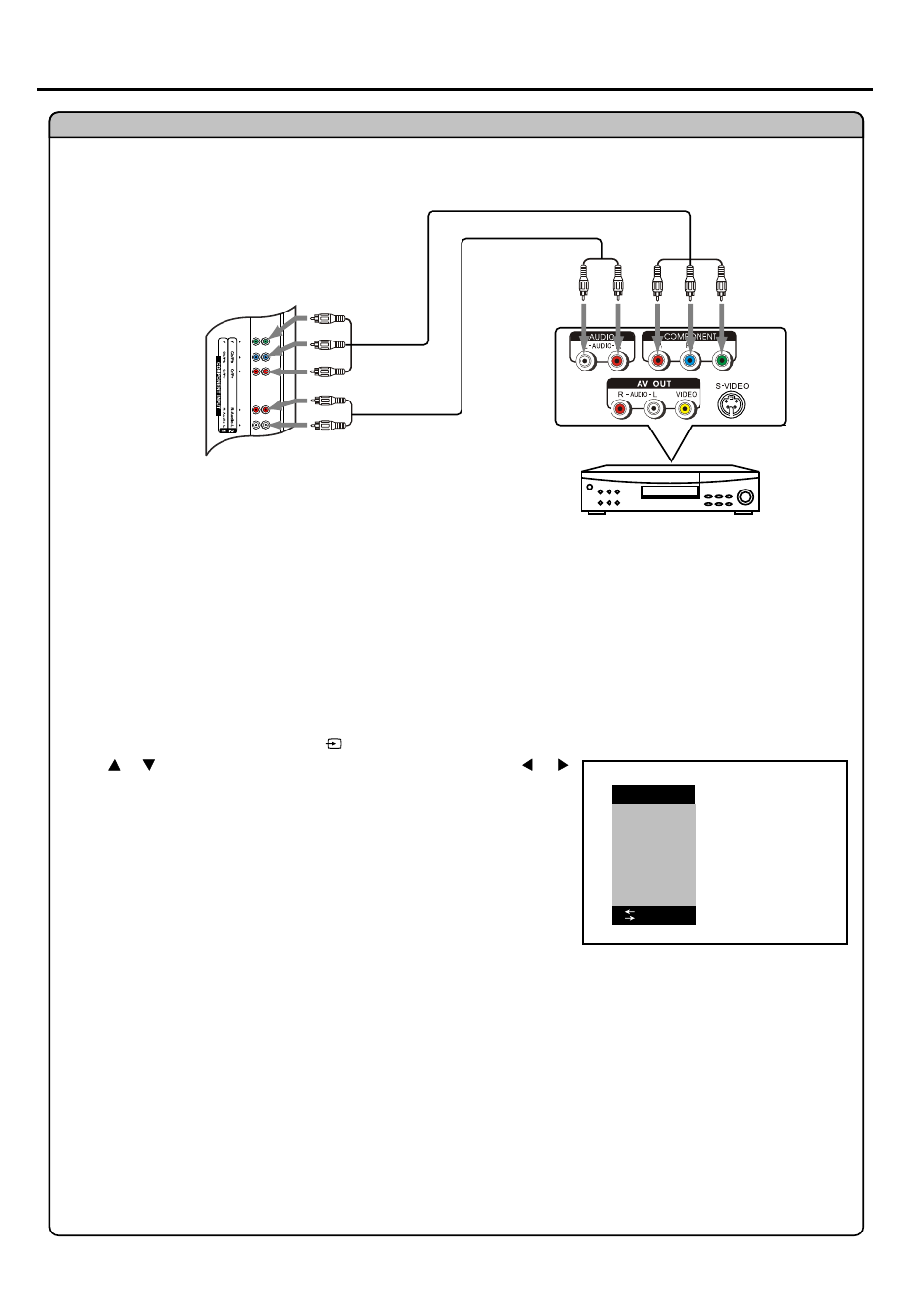

How to connect a DVD Player using Component Video Connections:
Connect the Video cable between the Y, Cb/Pb, Cr/Pr input jacks on the unit and Y, Pb, Pr output jacks on the DVD player.
Connect the Audio cable between the AUDIO input jack on the unit and AUDIO output jacks on the DVD player.
To play DVD
1. Turn on your LCD TV, press INPUT button on the remote control.
2. Use or repeatedly to select YPBPR1 or YPBPR2 and press or
to confirm.
3. Turn on your DVD player, insert a DVD disc and press the Play button.
Note:
The Y, Pb,Pr outputs on your DVD player are sometimes labelled Y, Cb, Cr or Y, B-Y, R-Y. If so, connect
the cables to like colours.
Connect a DVD player
:OK
INPUT
VGA
HDMI
TV
AV1
AV2
SVIDEO
YPBPR1
YPBPR2
