Connections
Connection to the RCU (WV-RC700A, WV-RC550) is made
through the optional RCU cable AW-CA50A26.
1. Turn RCU power off before connecting cables.
2. Set the cable selection switch of the RCU to MULTI
(in case of using the WV-RC700A).
3. Connect the 50-pin connector of the RCU cable to the I/F
REMOTE connector of the camera.
4. Turn RCU power on and the power indicator lamp will
light. The camera can now be remote controlled by the
RCU.
Notes:
• The maximum extension distance between the camera
and WV-RC700A is 300 m. The maximum extension
distance between the camera and WV-RC550 is 100 m.
• Use the following options for cable extension.
Studio cable WV-CA26U15 (15 m/50 ft)
WV-CA26U30 (30 m/100 ft)
WV-CA26U100 (100 m/330 ft)
Cable joint adapter
WV-CA26T26

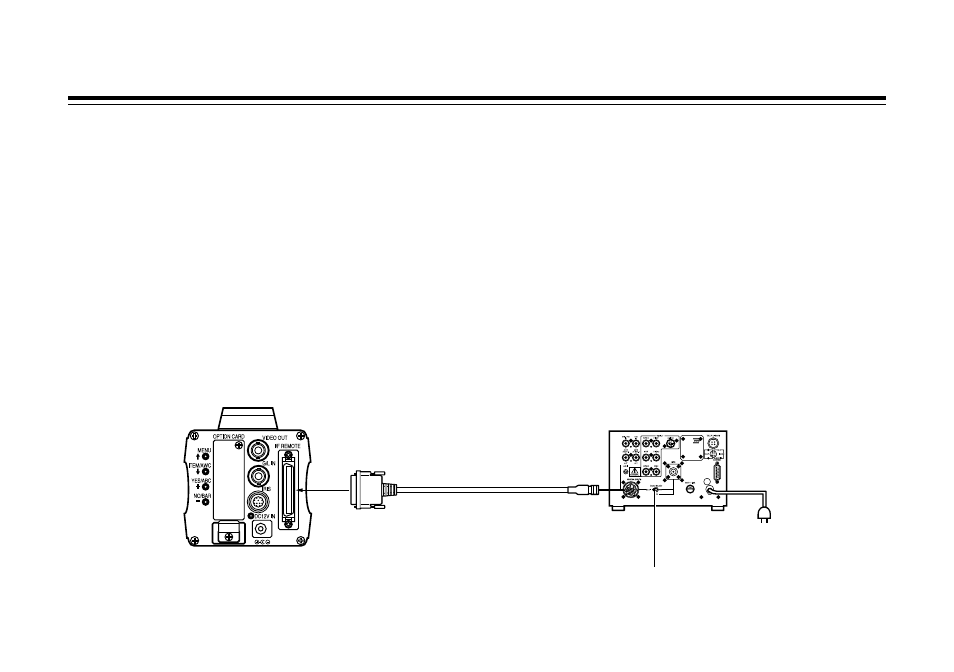

$ Connection of a remote control unit (RCU)
Set to MULTI
WV-RC700A
RCU cable
AW-CA50A26 (15 m)
