S3.19 Assembly and Maintenance Guide
page 13
1 2 3 4 5 6
G. Attach the Seat Pad to the Seat Stem using
four 1-inch zinc buttonhead bolts
two zinc flat washers
Wrench tighten using a 6mm hex key.
H. Insert the Seat Stem into the Seat Upright
Assembly. Pull out the seat adjustment T-handle to
insert the stem. Place the Seat Stem at its lowest
position.
J. To allow clearance for the Back Pad fasteners, pull
the T-handle and adjust the Incline Bracket away
from the Main Upright.
K. Attach the Back Pad to the Incline Bracket using
three 1-inch zinc hex head bolts
three zinc flat washers
Wrench tighten.
L. Return the Back Pad to a vertical position.

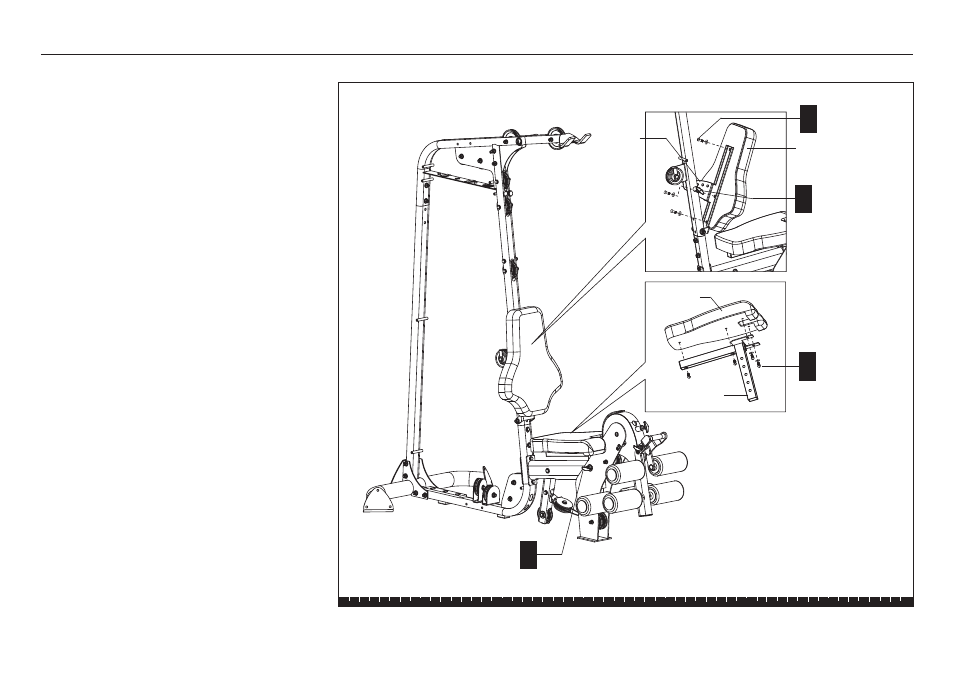

Step 3. Install Rollers and Seat Pads, continued
G
4 - 1" zinc
buttonhead bolts
2 - zinc washers
H
J
3 - 1" zinc bolts
3 - zinc washers
Pull out the seat
adjustment T-handle
to insert stem.
Back
Pad
Seat Stem
Seat Pad
Incline
Bracket
K
