4 SmartNode 4940 Series Quick Start Guide
2.0 Configuring the desired IP address
2.1 Factory-default IP settings
The factory default configuration for the Ethernet interface IP addresses and netmasks are listed in table 1 . The
Ethernet 0/0 port uses DHCP client to get the IP address and netmask automatically from the service provider.
3.0 Connecting the SmartNode to the network
The SmartNode 4940 Series provides an auto-MDX feature for the Ethernet port, so you can use a straight-
through or cross-over cable to connect to a host or a switch (see
figure 1 ).

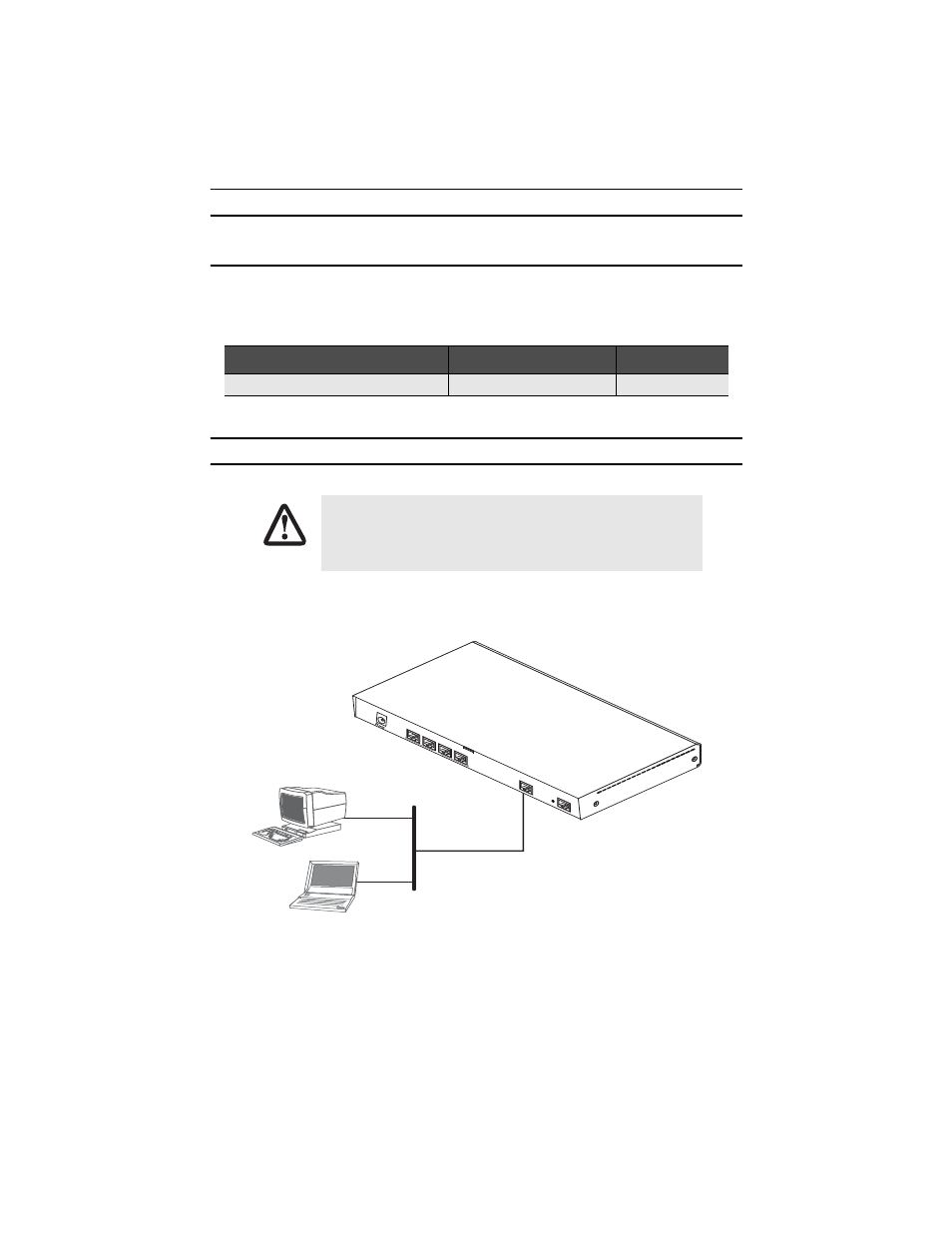

Figure 1. Connecting the SmartNode to the network
You can check the connection with the ping command from the SmartNode to another host on the local LAN.
172.16.1.99(if-ip)[LAN]#ping
Table 1. Factory default IP address and network mask configuration
Item IP Addresss Network Mask
Ethernet 0 (ETH 0/0) DHCP DHCP
The interconnecting cables shall be acceptable for external use and shall be rated for
the proper application with respect to voltage, current, anticipated temperature, flam-
mability, and mechanical serviceability.
CAUTION
LAN (ETH 0/0)
LAN
RS -23 2
Co nso le
ET H 0 /1
Reset
0/0
0/1
0/2
0/3
T1 /E 1
