Removing the LCD Panel Assembly
Follow the steps below to remove the LCD panel:
1. Disconnect the two LCD connectors.
2. Release the Wireless antenna cable.
3. Remove the screws (4xF) from the hinges (see Fig. 13).
4. Take away the LCD assembly.
Disassembling the LCD Panel Assembly
To disassemble the LCD panel, follow the steps below:
1. Remove the screw covers and screws (2xG).
2. Remove the screw covers and screws (4xH).
3. Unclip the front bezel by pushing it outwards from the inside
4. Take away the bezel.
5. Remove the screws (2xH) at the top (see Fig. 15).
6. Remove the screws (3xD) from the top supporting bracket.
7. Remove the screws (4xJ) from the hinges.
8. Remove the screws (2xD) from the lower supporting bracket.
9. Remove the screws (2xD) from the inverter board.

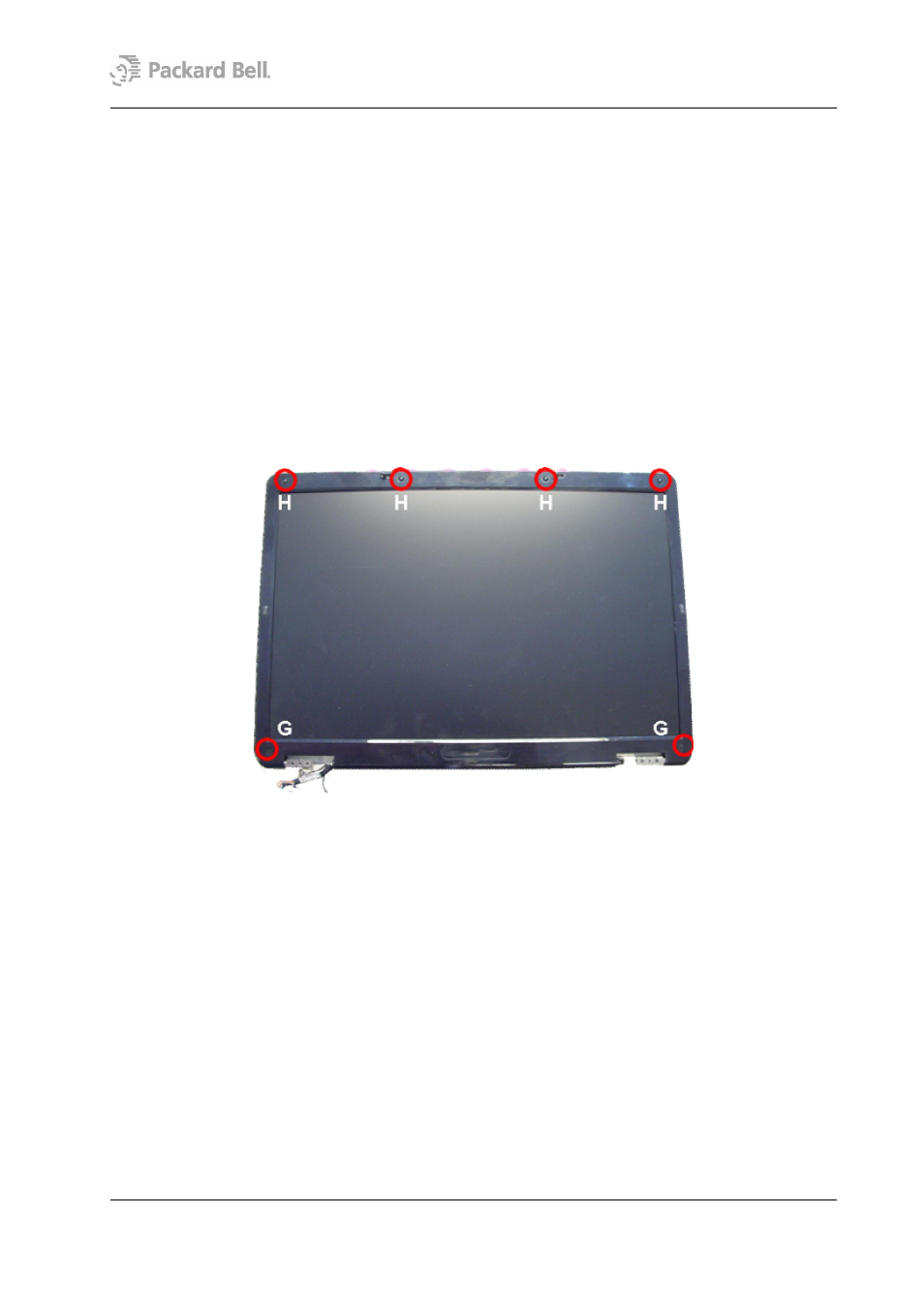

Fig. 14 LCD panel front bezel.
