10

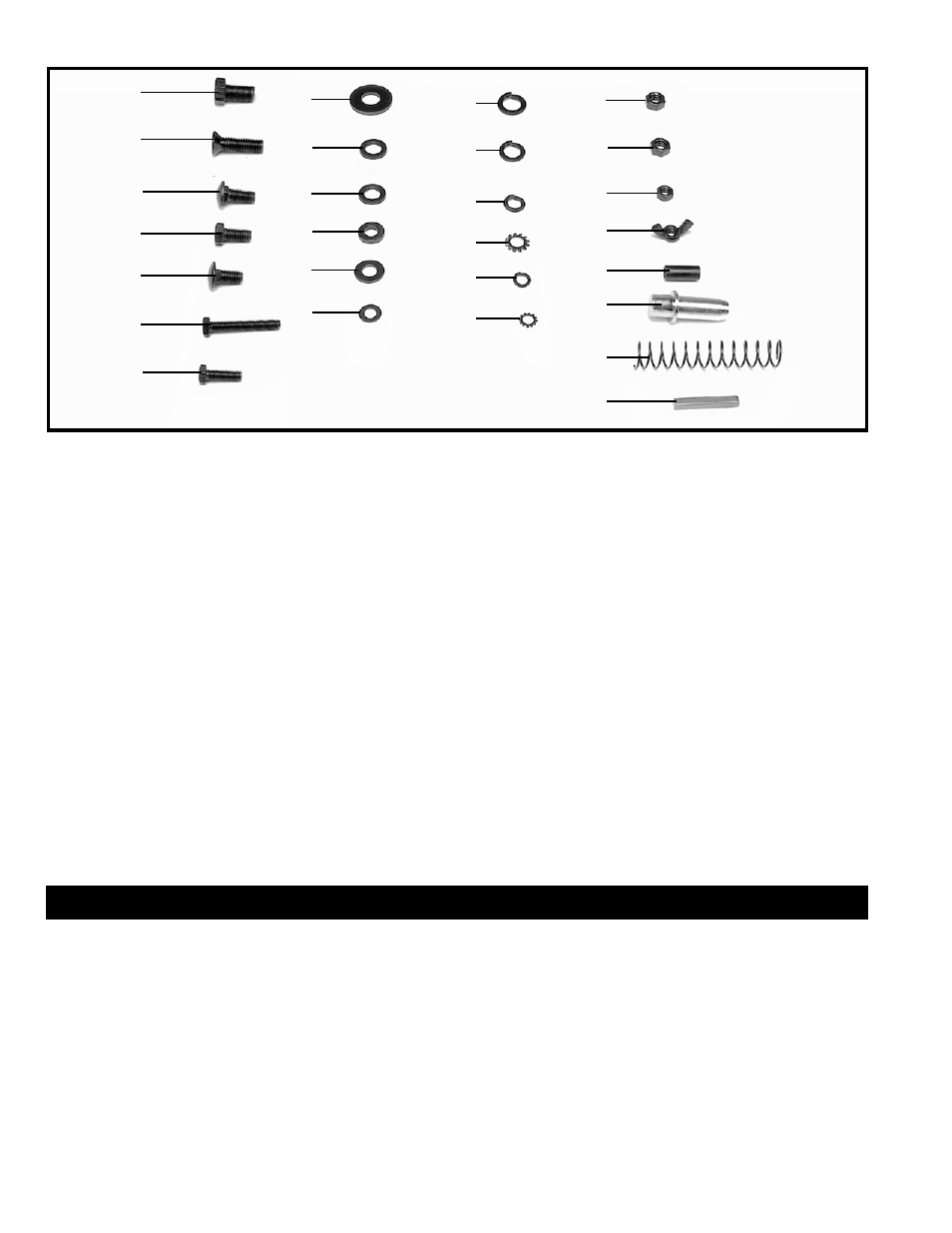

HARDWARE
1. 7/16-20x3/4" Hex Head Screw (6)
2. 3/8-16x1½" Flat Head Screw (1)
3. 5/16-18x3/4" Carriage Head Screw (4)
4. 5/16-18x5/8" Hex Head Screw (8)
5. 5/16-18x5/8" Carriage Head Screw (17)
6. 1/4-20x1½" Hex Head Screw (1)
7. 1/4-20x3/4" Hex Head Screw (2)
8. 7/16" Flat Washer (6)
9. 3/8" Flat Washer (1)
10. 10mm Flat Washer (2)
11. 21/64" Flat Washer (1)
12. 5/16" Flat Washer (37)
13. 1/4" Flat Washer (3)
14. 7/16" Lockwasher (6)
Fig. 5
15. 3/8" Lockwasher (1)
16. 5/16" Lockwasher (24)
17. 5/16" External Tooth Lockwasher (4)
18. 1/4" Lockwasher (2)
19. 1/4" External Tooth Lockwasher (2)
20. 5/16-18 Hex Nut (29)
21. 3/8-16 Hex Nut (1)
22. 1/4-20 Hex Nut (1)
23. 1/4-20 Wing Nut (1)
24. Spacer (1)
25. Pin (2)
26. Spring (1)
27. Motor Pulley Key (1)
1
2
3
4
5
6
8
9
10
11
12
14
16
17
18
20
22
23
24
25
26
7
13
19
27
15 21
UNPACKING AND CLEANING
Carefully unpack the machine and all loose items from the shipping container(s). Remove the protective coating from
all unpainted surfaces. This coating may be removed with a soft cloth moistened with kerosene (do not use acetone,
gasoline or lacquer thinner for this purpose). After cleaning, cover the unpainted surfaces with a good quality household
floor paste wax.
ASSEMBLY
ASSEMBLY TOOLS REQUIRED
ASSEMBLY TIME ESTIMATE - 2 to 3 hours
*7/8" Open End Wrench (supplied)
* 7/8" and 1/2" Close End Wrench (supplied)
* Wrenches, including 10mm, 12mm, 18mm,1/2 inch and 9/16 inch (not supplied)
* 3/16 hex wrench (not supplied)
