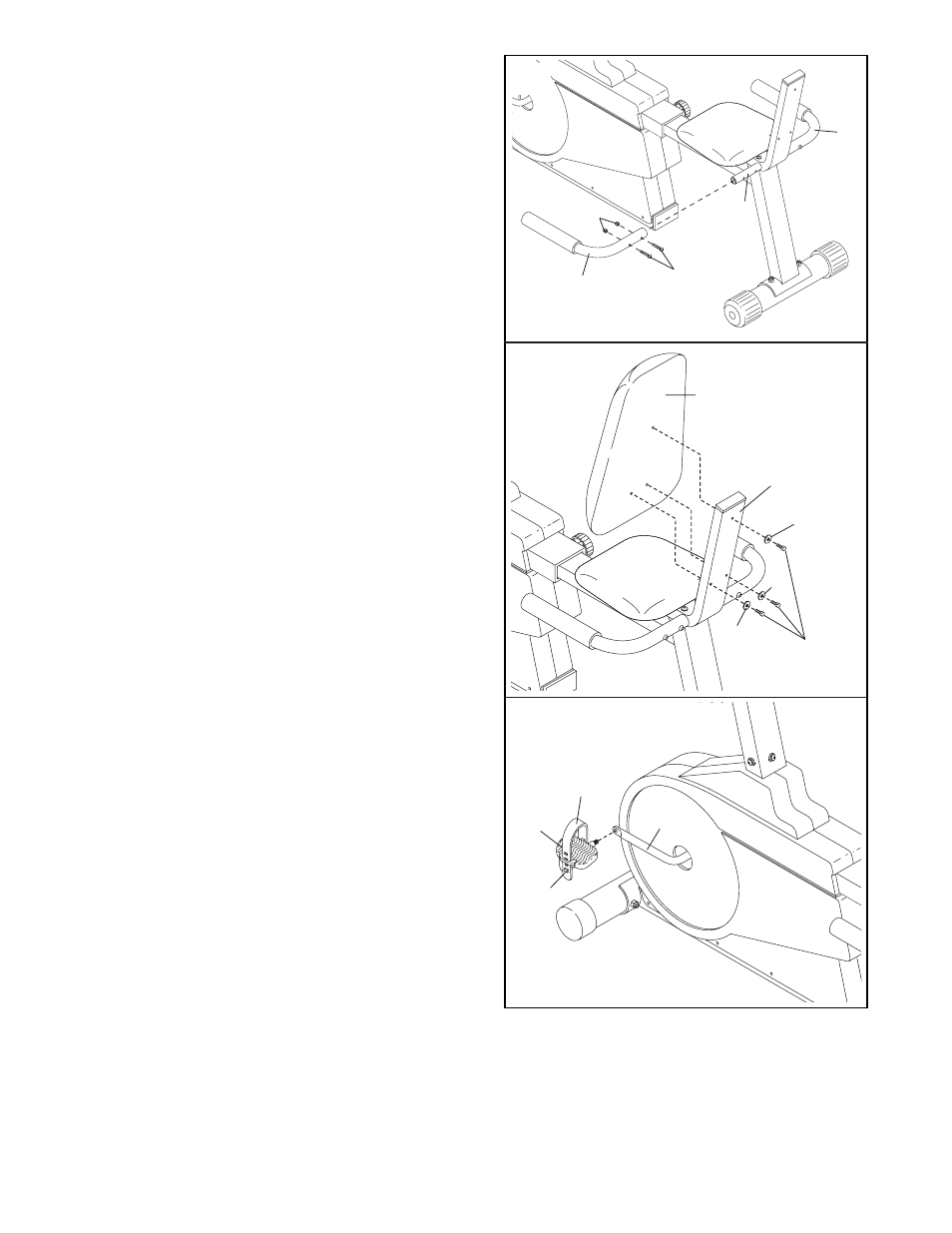

10. Attach the Backrest (15) to the Seat Bracket (69)
with three M6 x 35mm Phillips Screws (49), and
three M6 Flat Washers (34).
7
11. Identify the Left Pedal (45); there is an ÒLÓ on the
Left Pedal for identification. Using an adjustable
wrench, tighten the Left Pedal
counterclockwise into
the left arm of the Crank (29). Tighten the Right
Pedal (not shown) clockwise into the right arm of
the Crank. Tighten both Pedals as fully as
possible.
Important: After using the exercise cycle for one
week, retighten the pedals. For best performance,
the pedals must be kept properly tightened.
Next, adjust the Pedal Strap (27) on the Left Pedal
(45) to the desired position. Press the Pedal Strap
onto the adjustment tab on the Left Pedal. Adjust
the Pedal Strap on the Right Pedal (not shown) in
the same way.
15
34
34
34
49
69
29
27
45
Tab
10
11
9. Attach a Seat Handle (17) to the Seat Bracket (69)
with two M6 x 34mm Button Bolts (18) and two M6
Nylon Locknuts (66).
Attach the other Seat Handle (17) to the Seat
Bracket (69) in the same manner.
69
17
18
66
17
9
