O PTIONAL E QUIPMENT C ONNECTIONS
5 l
E
N
G
L
IS
H

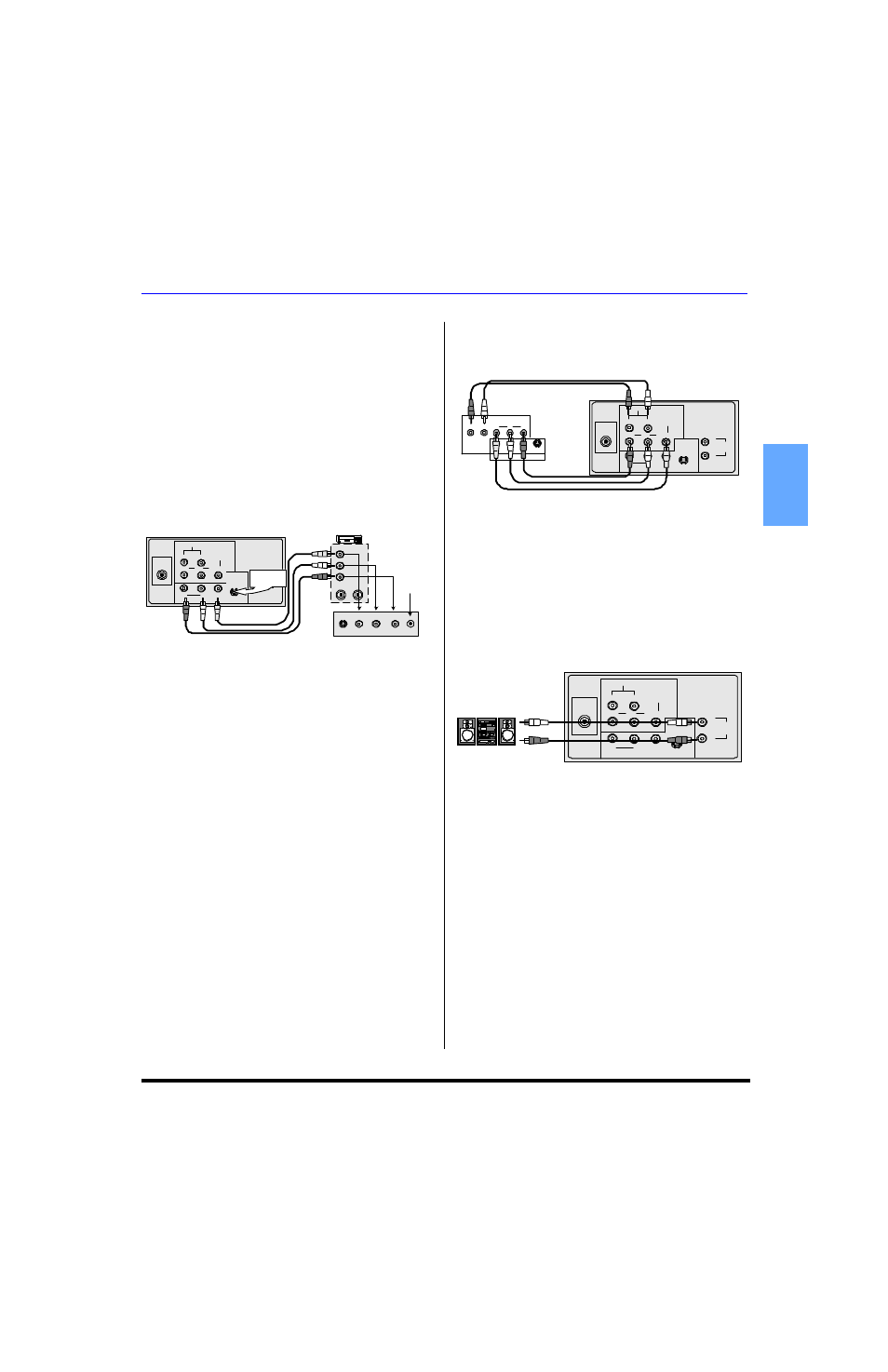

Optional Equipment Connections
Note: The remote control must be programmed with supplied
codes to operate the optional equipment.
VCR Connection
VCRs, video disc players, video game equipment, and
DSS equipment can also be connected to the video inputs.
See the optional equipment manual for more information.
Note: VIDEO 1 input is a dual-purpose input. It is primarily
intended for connection with 480i devices such as a DVD
player using the Y P
B
P
R
component video jacks and
Audio L & R jacks. However, it can also be connected to
conventional composite video sources such as a VCR,
using only the Y/Video jack and Audio L & R jacks. The
on-screen label will display Component or Video 1
depending on which source is connected.
Procedure
• Connect equipment as shown to front or rear Audio/
Video input jacks.
• Select the Video mode by pressing TV/VIDEO button.
• Operate optional equipment as instructed in equipment
manual.
Front Control Panel
Use the front panel of the television to use the TV without
remote or to use the Audio/Video input jacks for optional
equipment.
Procedure
• Press TV/VIDEO to select VIDEO 3 input mode.
Note: The front control panel can be used to access menus
and switch video mode when the remote control is not
available.
Digital TV - Set-Top Box (DTV-STB) or DVD
Player Connection
Use this diagram to connect the Panasonic DTV-STB
(Digital TV-Set-Top Box) to the back of your TV.
Notes:
• There are three video inputs, Y, P
B
, and P
R
.
Separate component color inputs provide
luminance and color separation. Use the L (left)
and R (right) audio inputs.
• Select DTV-STB to 480i output mode. TV set can
receive 480i signal only.
Amplifier Connection (TO AUDIO AMP)
Connect to an external audio amplifier input for listening to
a stereo system.
Note: TO AUDIO AMP terminals cannot be connected directly
to externalspeakers.
Audio Adjustments
• Select TV SPEAKERS ON from AUDIO menu.
• Set amplifier volume to minimum.
• Adjust television volume to desired level.
• Adjust amplifier volume to match the television.
• Select SPEAKERS OFF & VARIABLE AUDIO OUT from
AUDIO menu.
• Volume, mute, bass, treble and balance are now
controlled through the television.
Note: Select SPEAKERS OFF & FIXED AUDIO OUT to control
audio functions through the external amplifier.
TERMINALS ON FRONT OF TV
Jack used for 1/8"
headphone plug
L
R
ANT IN
VIDEO OUT
AUDIO OUT
ANT OUT
INPUT 3
S-VIDEO VIDEO L AUDIO R HPJ
CABLES NOT SUPPLIED CONNECTIONS ON BACK OF TV VCR
COMPONENT
VIDEO INPUT
INPUT 1
P B P R Y/VIDEO
VIDEO
INPUT 2
S-VIDEO R
L
TO AUDIO
AMP
ANT
AUDIO
L R
R L
Use either the
S-Video or Video
connection.
COMPONENT
VIDEO INPUT
INPUT 1
P B P R Y/VIDEO
VIDEO
INPUT 2
S-VIDEO R
L
TO AUDIO
AMP
ANT
AUDIO
L R
R L
CABLES NOT SUPPLIED
TERMINALS ON BACK OF DTV-STB OR DVD PLAYER COMPONENT VIDEO INPUT TERMINALS ON BACK OF TV
NTSC OUTPUT
R-AUDIO-L
DIGITAL OUTPUT
P B P R Y
R-AUDIO-L VIDEO S-VIDEO
COMPONENT
VIDEO INPUT
INPUT 1
P B P R Y/VIDEO
VIDEO
INPUT 2
R
L
TO AUDIO
AMP
ANT
AUDIO
L R
R L
CABLES NOT SUPPLIED
CONNECTIONS ON BACK OF TV
External Amplifier
