System wiring, Ple420p – PYLE Audio ple420p User Manual
Page 10
8

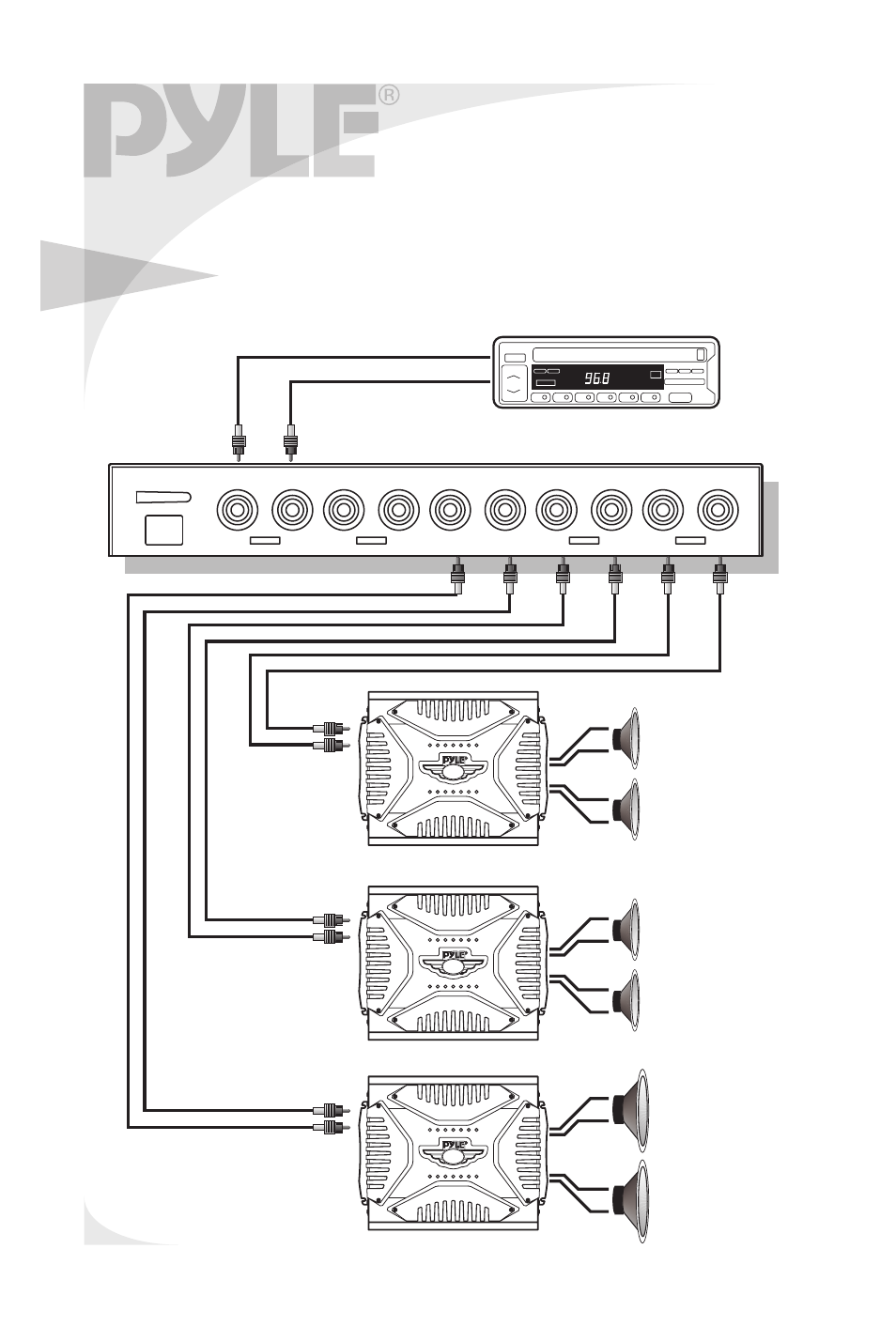

system wiring
ple420p
basic system application using
front, rear, and subwoofer amps
left and right
DVD outputs
from head unit
left and right
DVD inputs
REAR CHANNEL
power amplifier
FRONT CHANNEL
power amplifier
SUB CHANNEL
power amplifier
L
R
SUB CHANNEL
speakers
–
+
–
+
FRONT CHANNEL
speakers
L
R
–
+
–
+
REAR CHANNEL
speakers
L
R
–
+
–
+
