MAKING CONNECTIONS
15
En
R L
Y P B P R
525i
(480i)
525p
(480p)
MENU
SELECT
COAX OPT
AC IN
AUDIO OUT
FRONT REAR
LS
RS
CENTER
SUB
WOOFER
VIDEO OUT S-VIDEO OUT
CONTROL DIGITAL OUT
IN OUT
COMPONENT VIDEO OUT
1
1 2 1 2
2
1
2
AUTO
NTSC
PAL
TV SYSTEM
D2
DIGITAL IN
5.1 CH INPUT
R
L
FRONT SURROUND SUB
WOOFER
CENTER
VIDEO IN S-VIDEO IN
Coaxial cable
(Not included)
S-video cord
(Not included)
2 stereo audio
cords
(1 Included),
and 2 single
cords (or
another stereo
audio cord)
(not included)
TV or monitor
Front
Speaker (L)
Front
Speaker (R)
Center
Speaker
Rear
Speaker (L)
Rear
Speaker (R)
Sub woofer
Finally, connect to a
power outlet.
S-video connection produces a high quality
video image. If you have a TV or monitor that
features an S-video input, make video
connections from one of the S-VIDEO OUT
jacks on the player to the S-VIDEO IN jack on
the TV or monitor using an S-video cord (not
included) (page 18).
Make connections from
the AUDIO OUT (5.1
channel) on the player to
an AV receiver or
amplifier with 6 channel
discrete input, often
referred to as “5.1
channel ready” or “Dolby
Digital ready”. This allows
you to use the high
quality DVD-Audio, Dolby
Digital, DTS and MPEG
decoding capabilities of
the player (page 17).
When making this kind of
connection, be sure to
select [5.1 Channel] in the
Setup Navigator [Analog
Jacks] screen (page 22).
Make connections
from the DIGITAL
OUT (coaxial) on the
player to the digital
coaxial input on an
AV receiver,
amplifier or other
component with
internal multichannel
decoding capabilities
(page 16).
AV amplifier or receiver

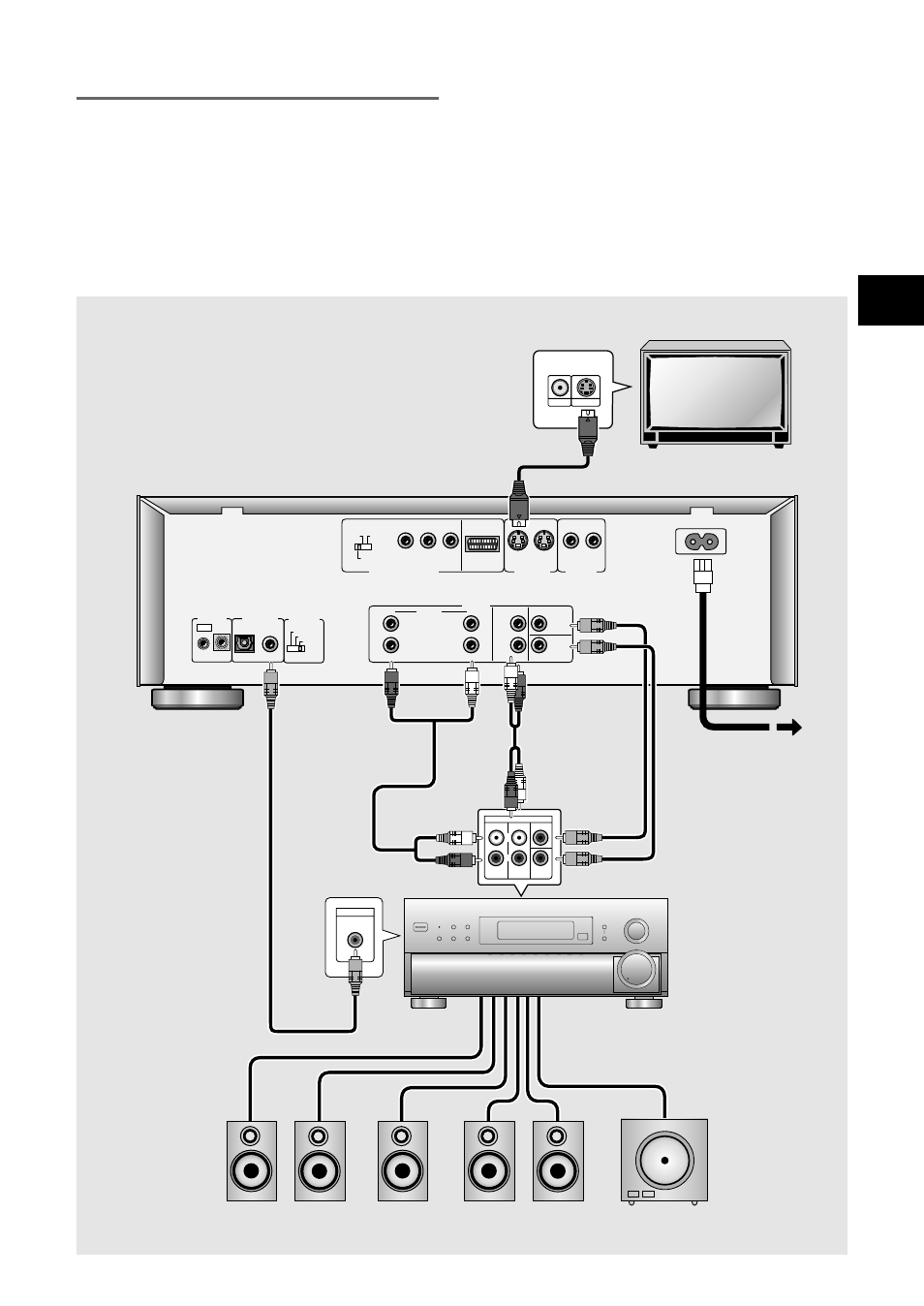

Home Theater Component
Connections
The connections on this page demonstrate the versatility
of this player to conform to any number of home
entertainment systems.
Please note that the illustration shown on this page is
meant as an example. Please refer to the manuals
supplied with the components to which you are making
connections to determine the best possible setup for
your home system.
An explanation of each type of audio and video
connection available can be found on pages 16-18.
Illustration is DV-S838A
