Identifying Components
The LCD Monitor — Front View

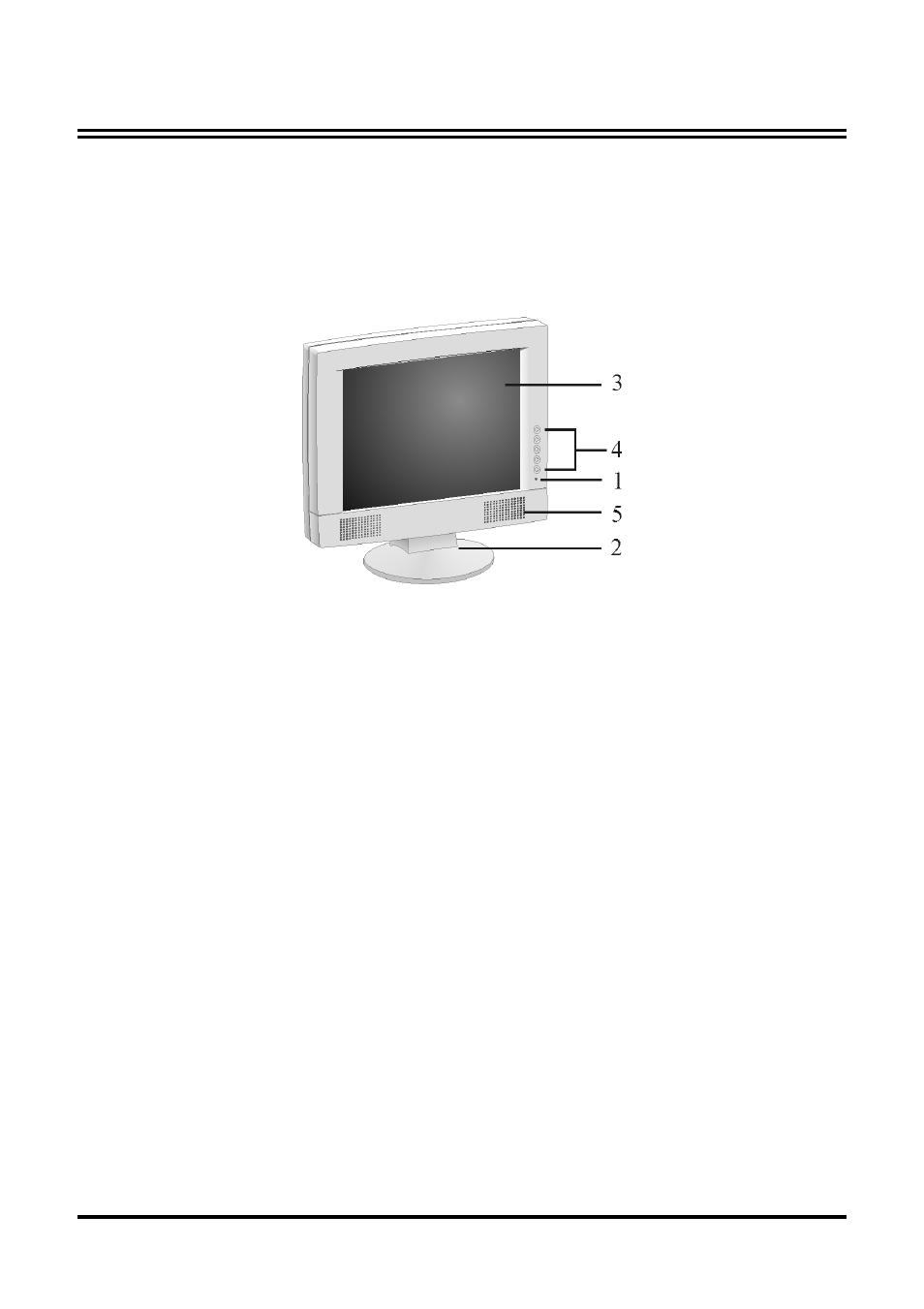

Figure 1-1: The LCD Monitor Front View
1. Power-On
Indicator
This LED indicator stays lit when the power is on and blinks
when the LCD monitor is in power saving mode.
2. Monitor
Stand
3. LCD
Screen
The LCD monitor screen is a 15-inch TFT 1024 x 768 screen.
4. LCD Monitor Control Panel
Refer to Chapter 2 for a detailed.
5. Stereo
Speakers(optional)
